With California Emissions

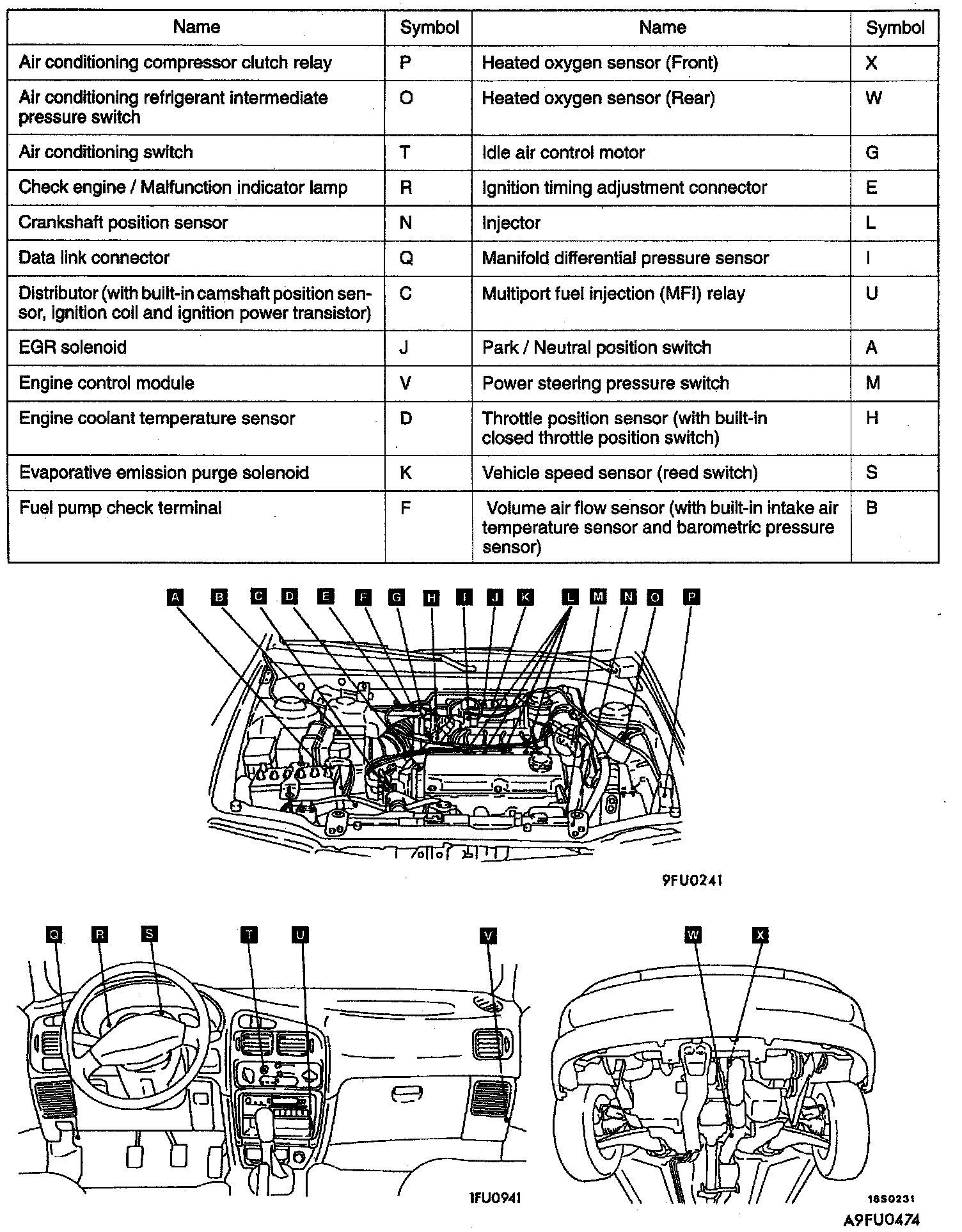

Component Locations:





Index

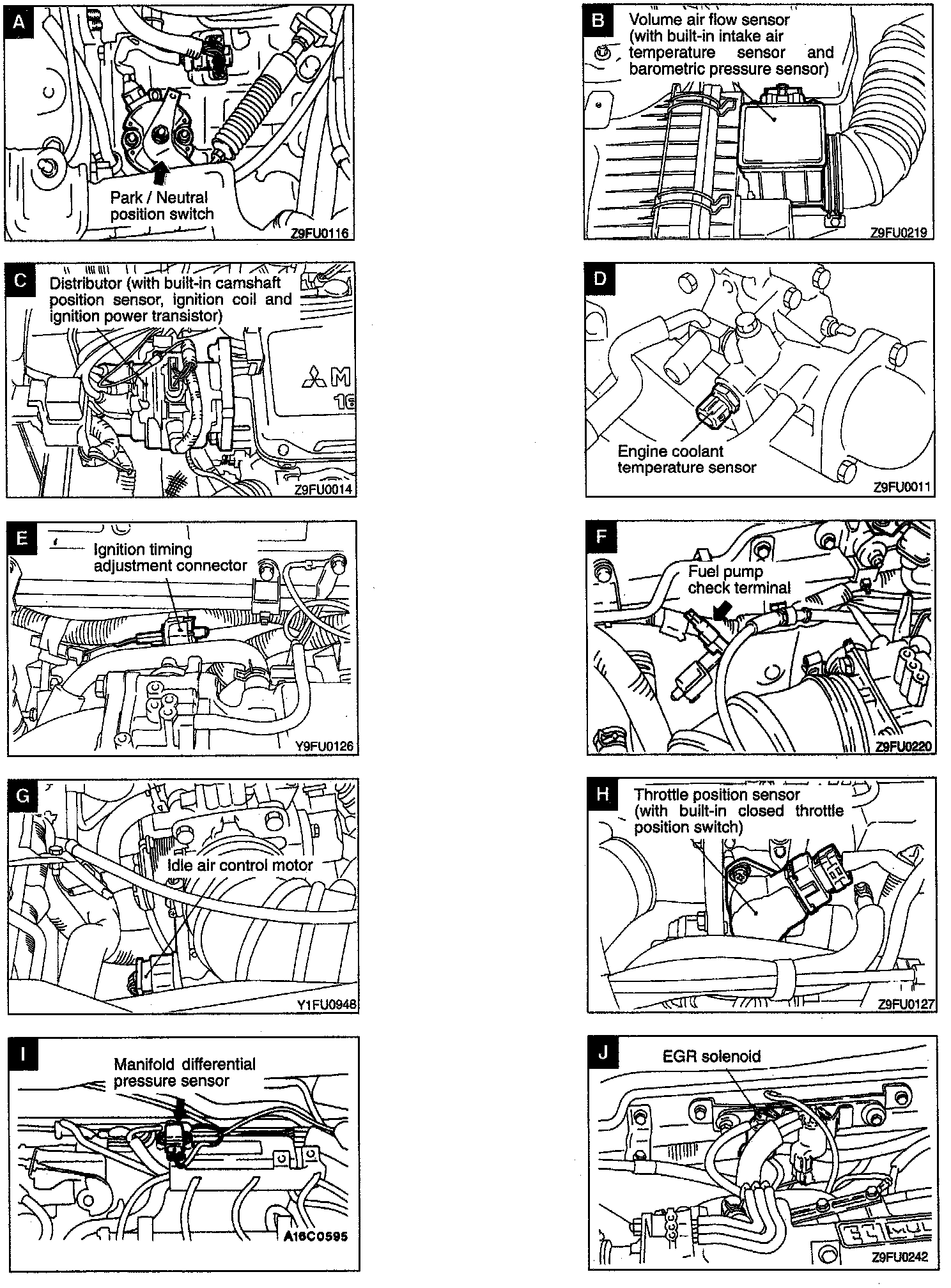

Component Locations:





Close-up views (A - J)

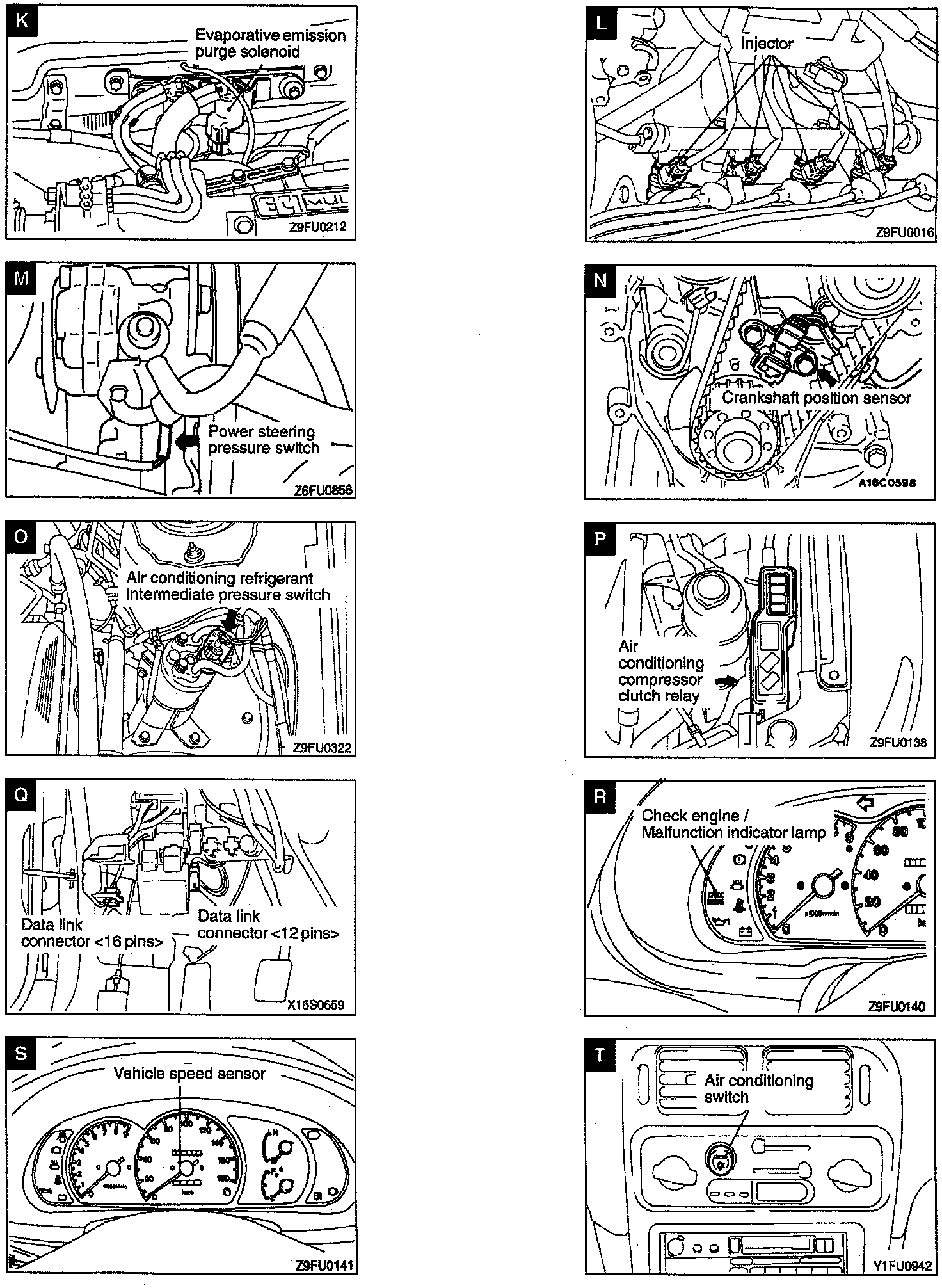

Component Locations:





Close-up views (K - T)

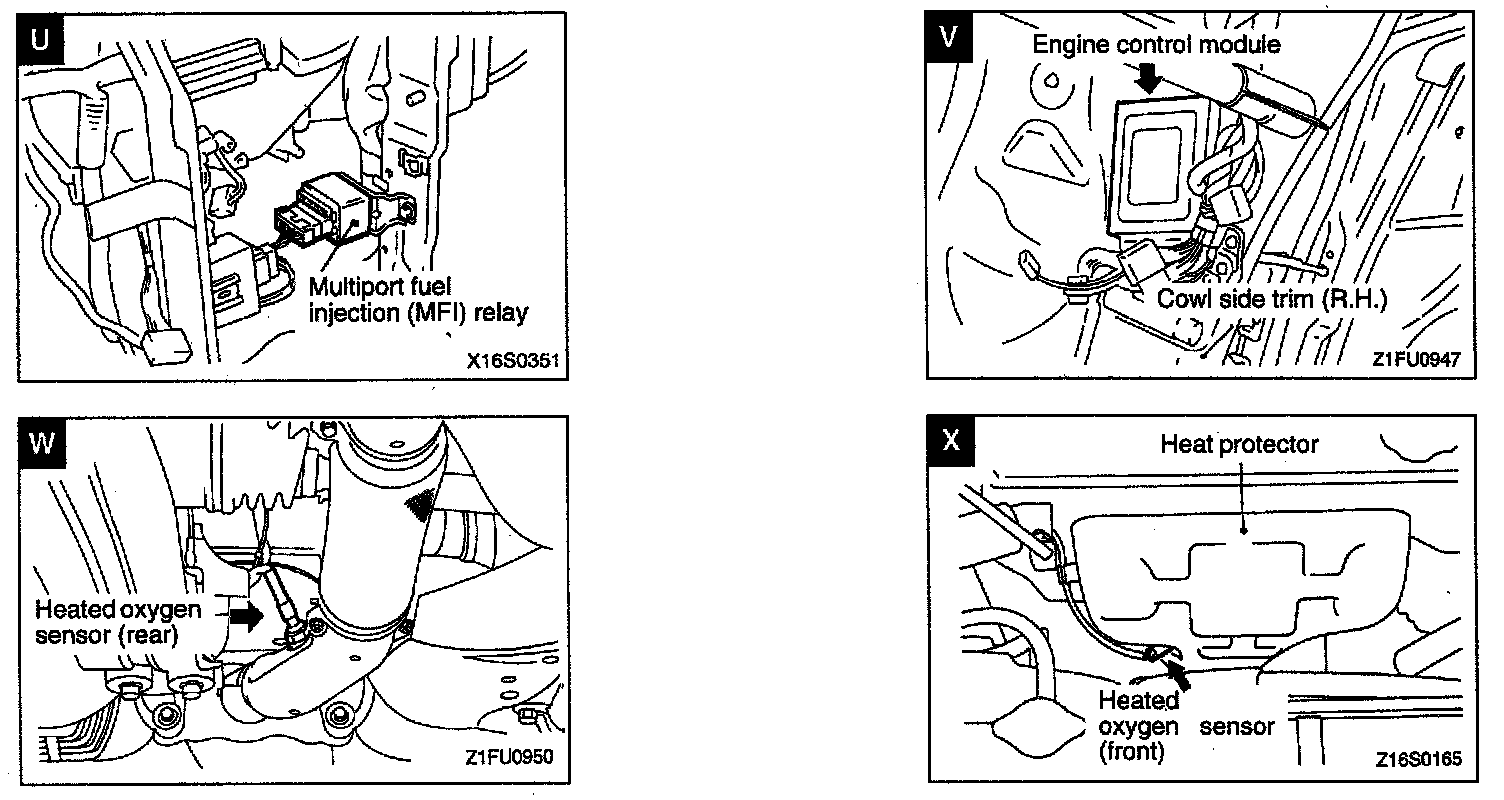

Component Locations:





Close-up views (U - X)
