6A Checking Fluid Temperature Sensor-Fault Code 15
6A Checking Fluid Temperature Sensor-Fault Code 15

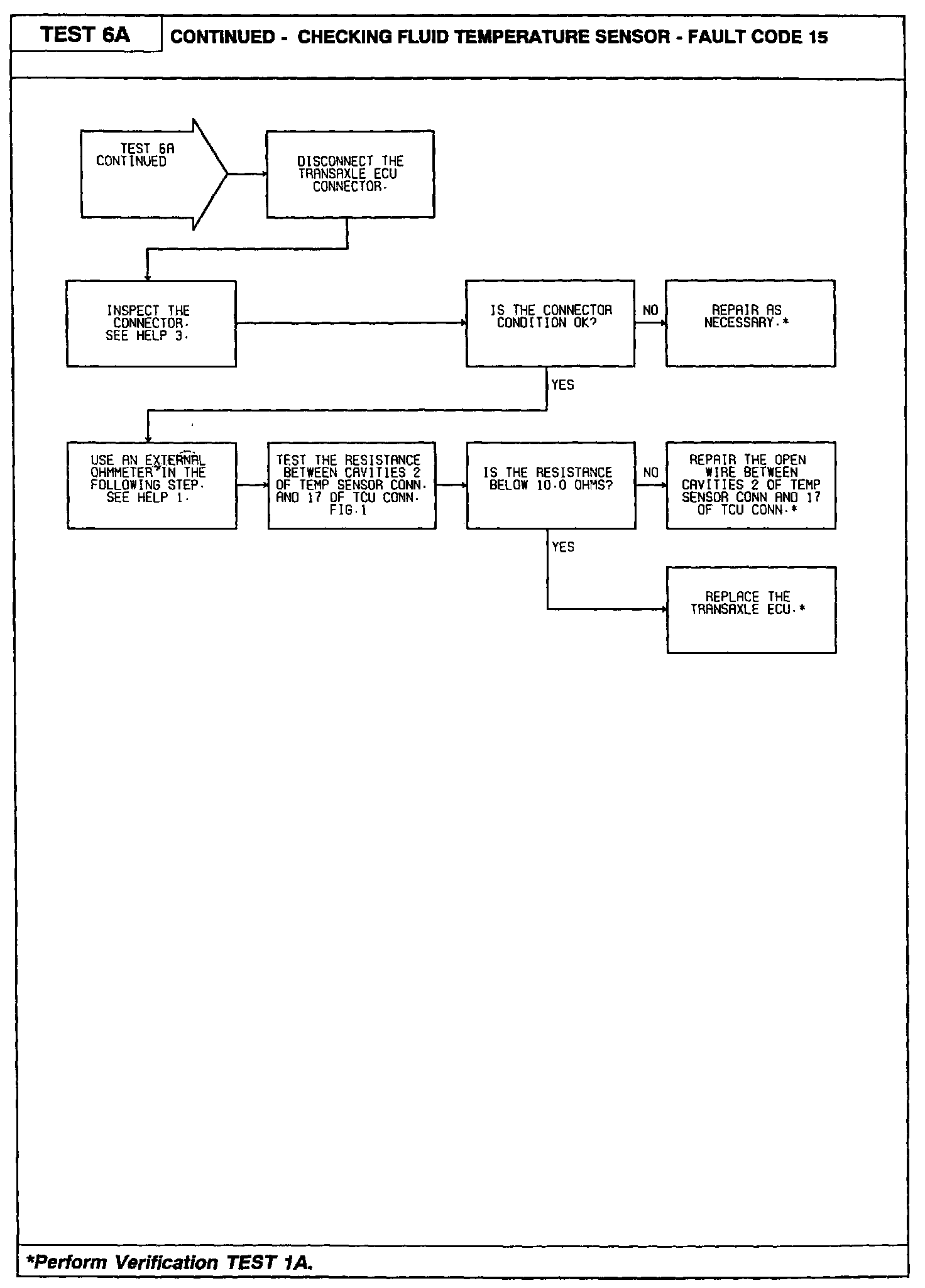

2 Of 4:

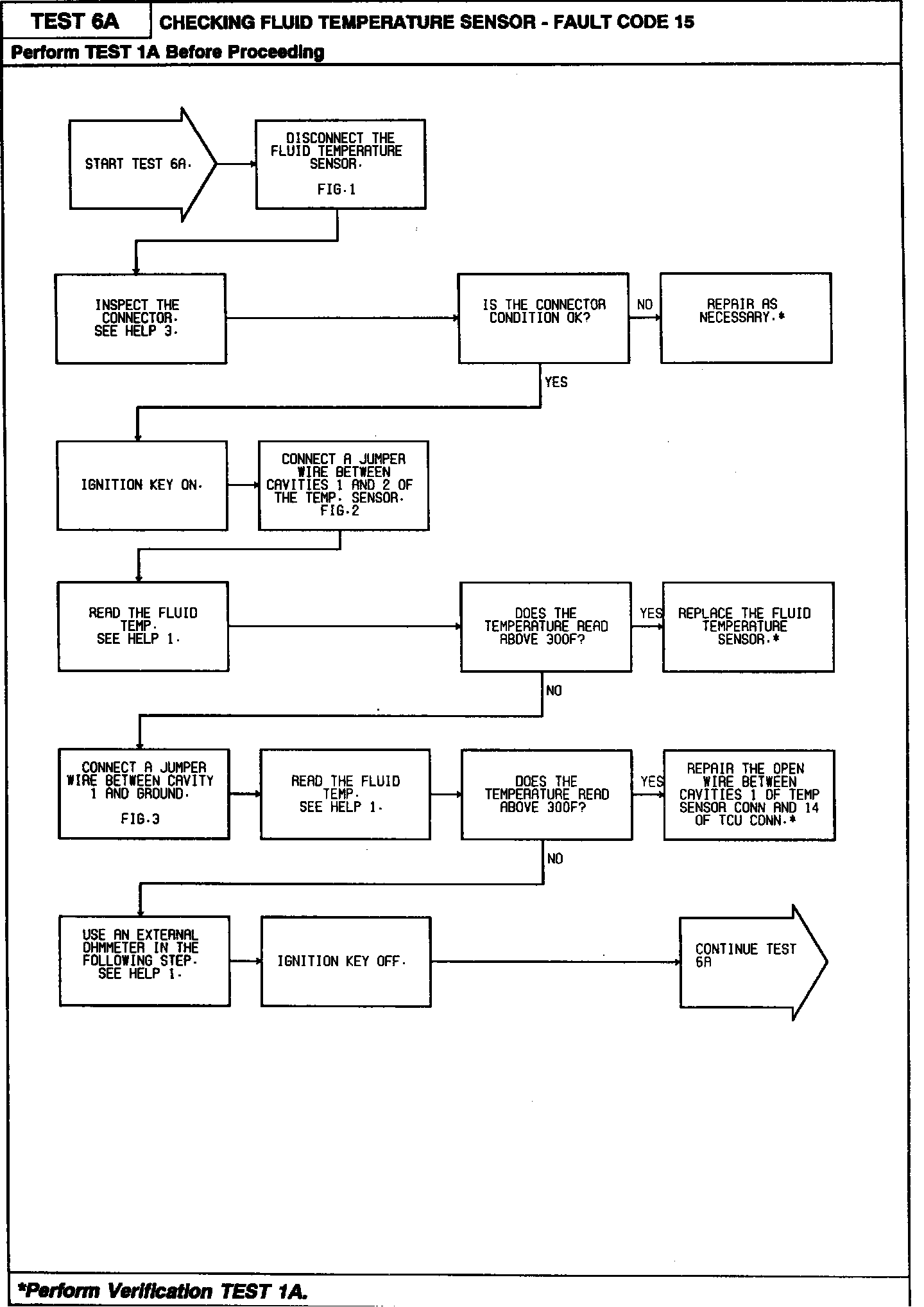

1 Of 4, Start Of Test 6A:

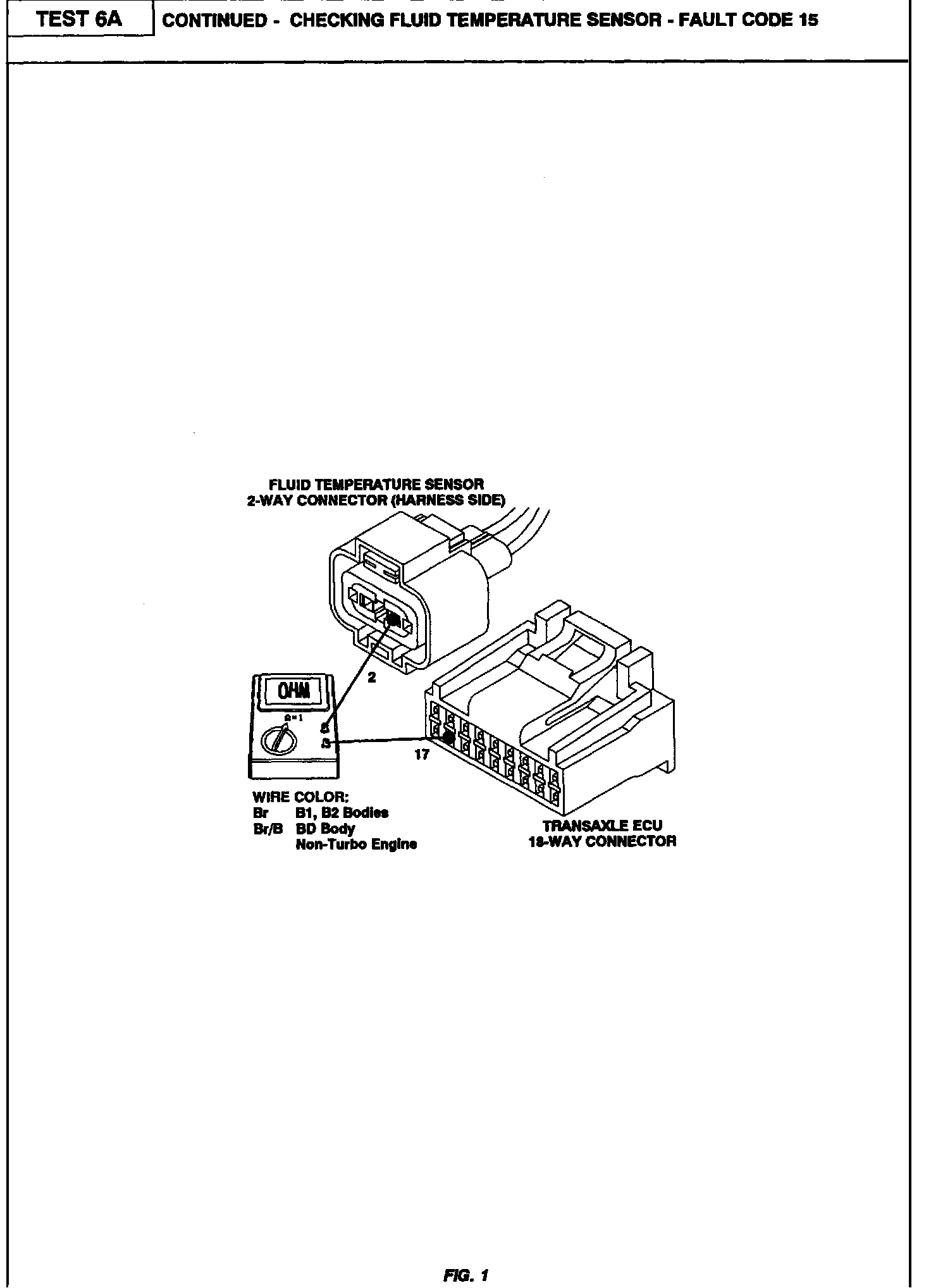

4 Of 4:

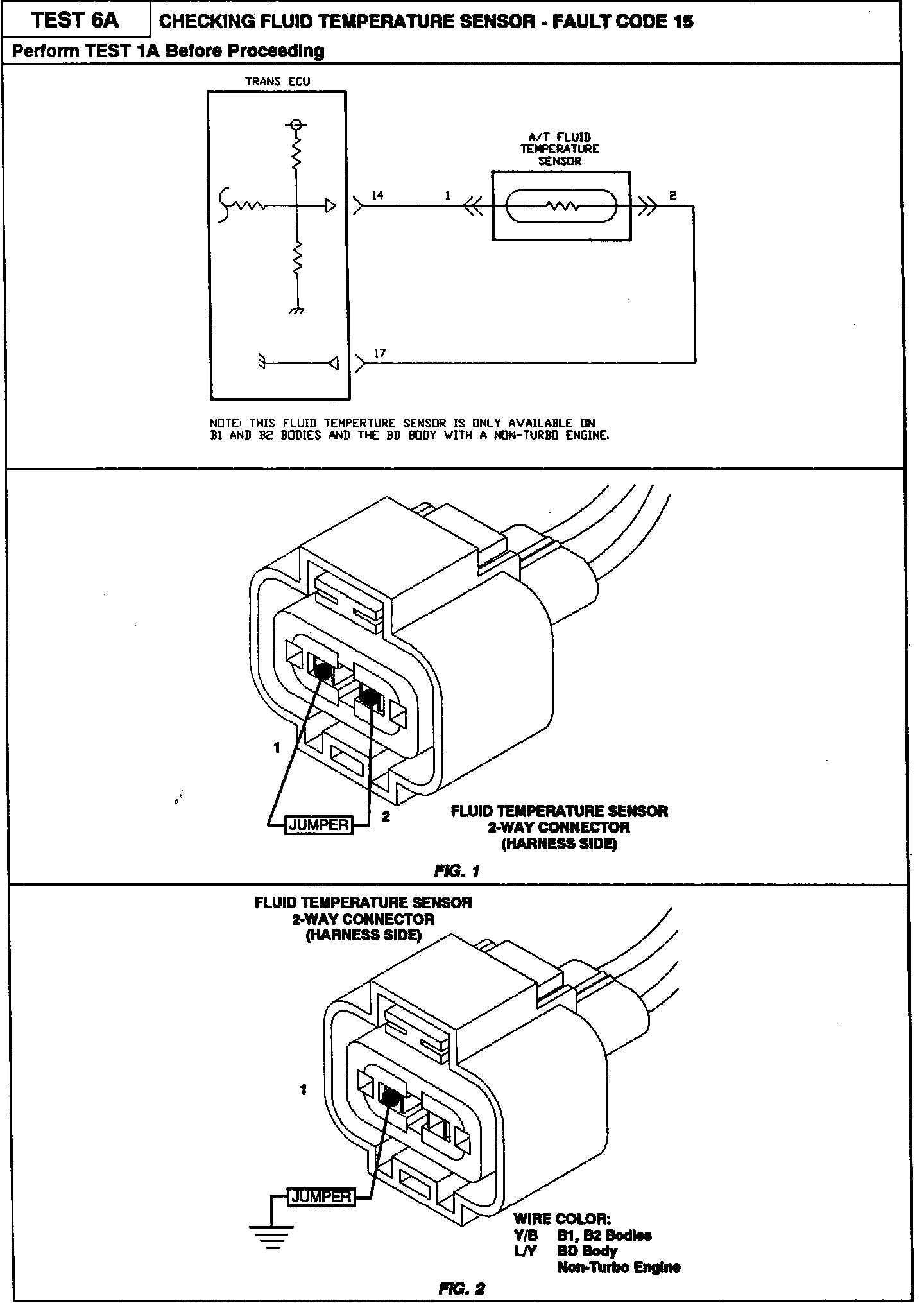

3 Of 4, End Of Test 6A:
