3A DRBII Communication Test
3A DRBII Communication Test

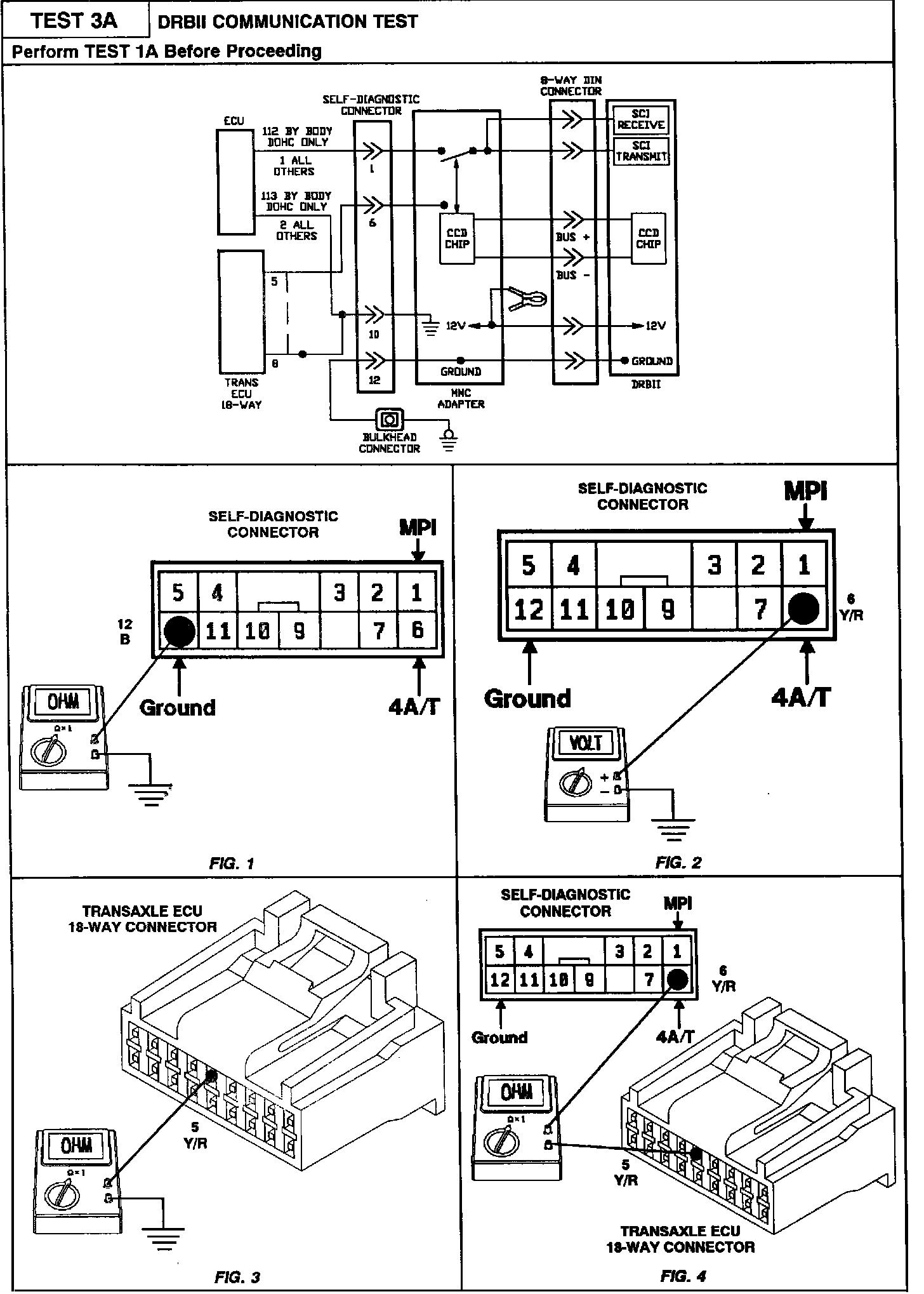

2 Of 6:

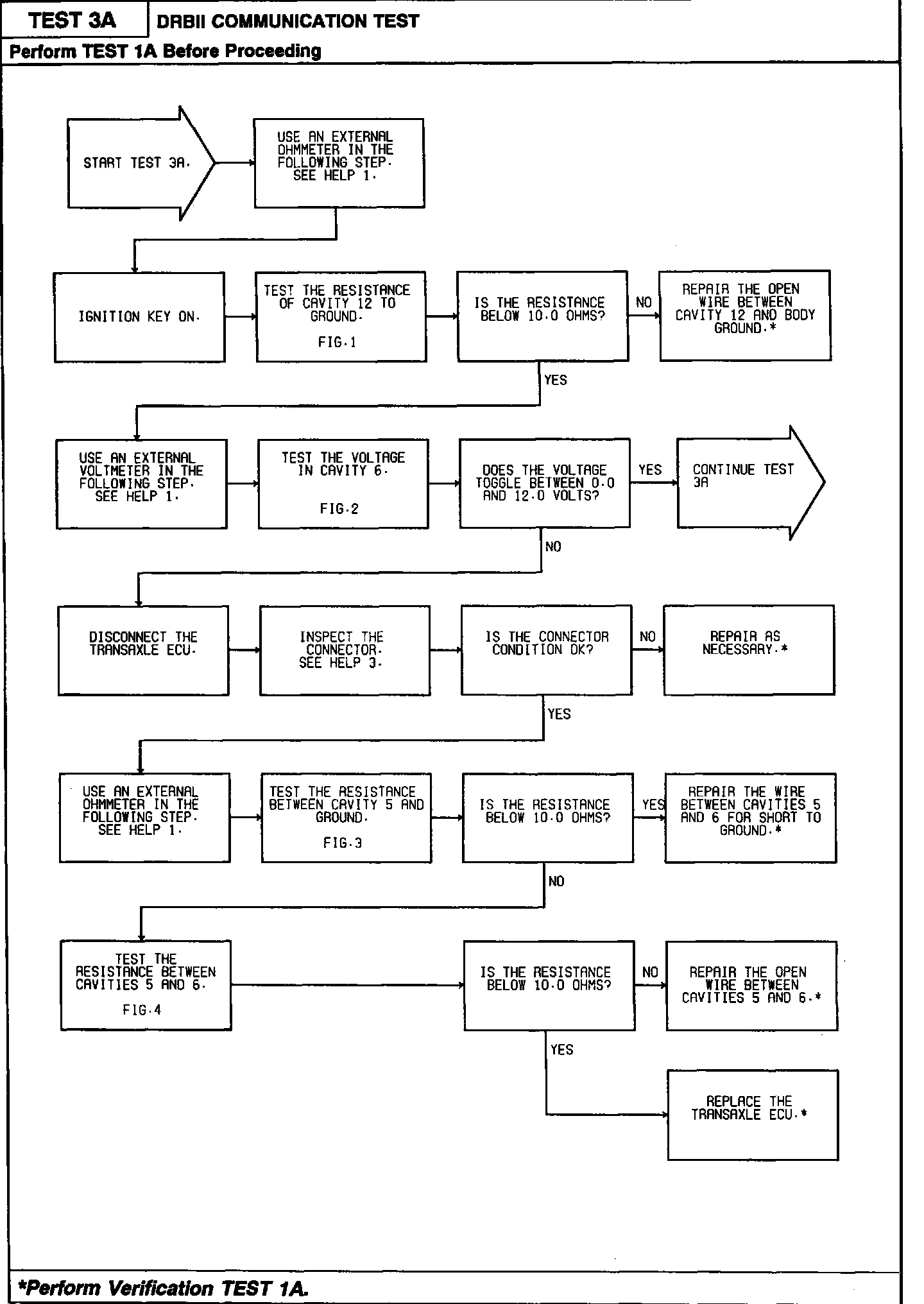

1 Of 6, Start Of Test 3A:

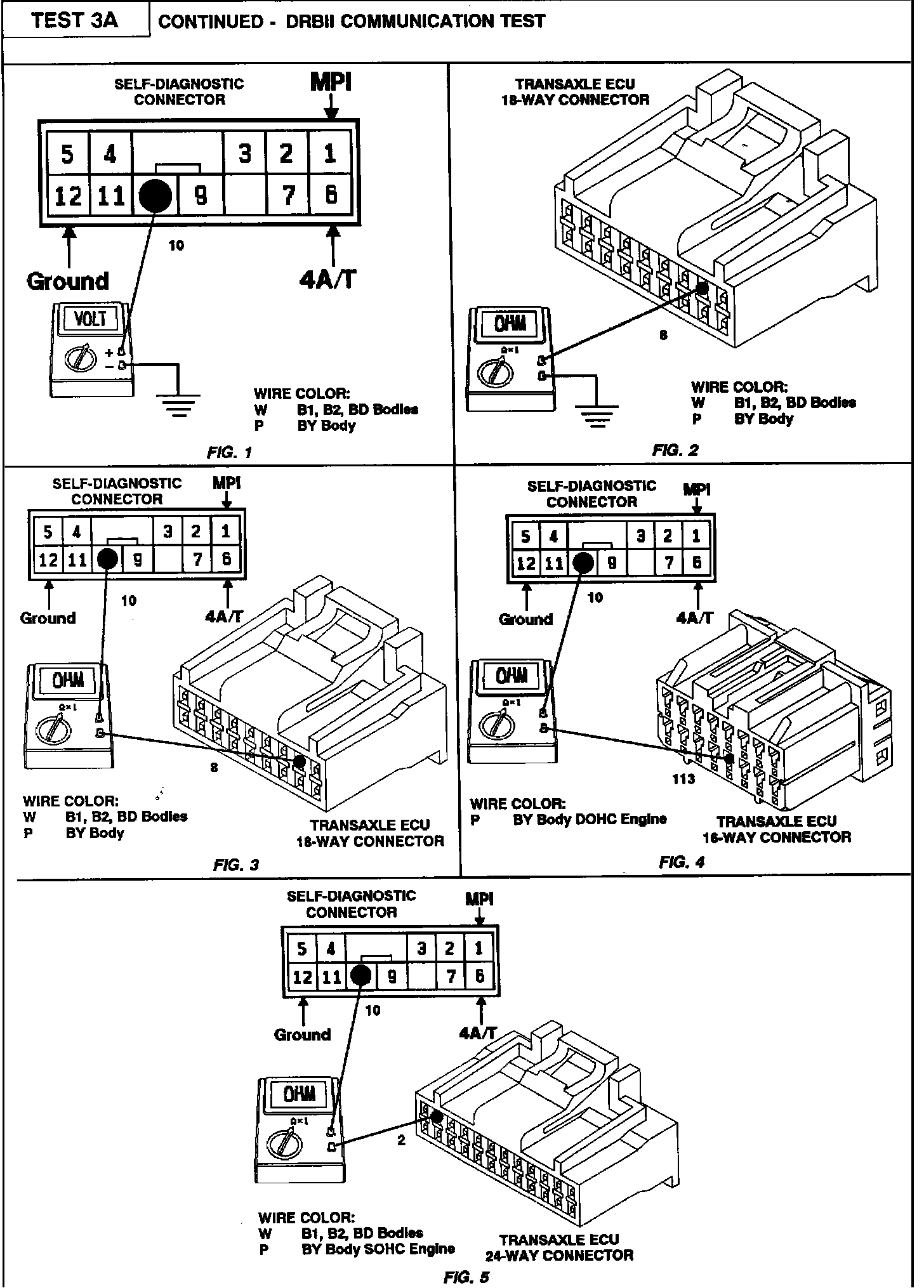

4 Of 6:
3 Of 6, Test 3A Continued.:
6 Of 6:
5 Of 6, End Of Test 3A:
