Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Transmission Control System
>>
Diagnostic Test Procedures
>>

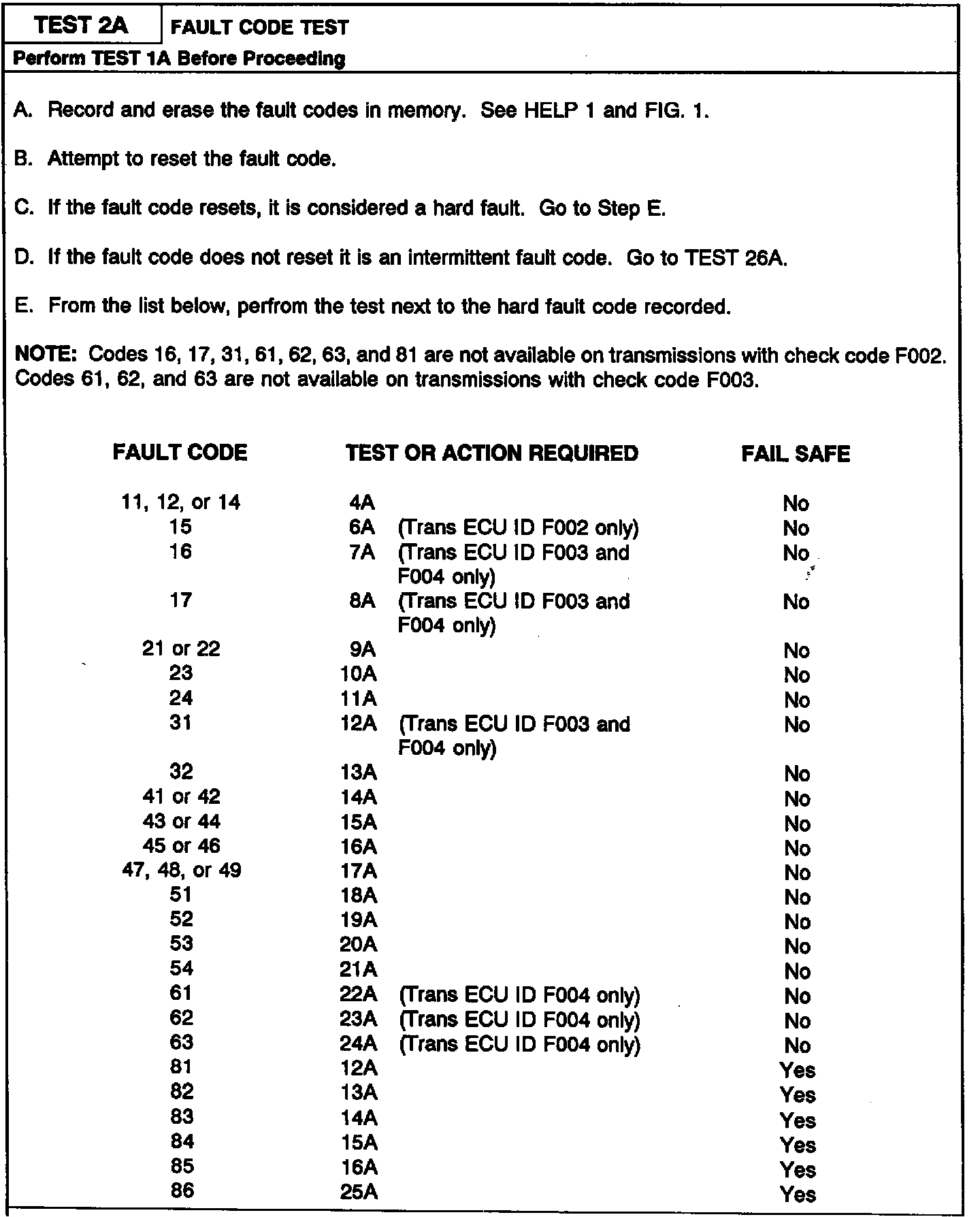

2A Checking the System For Diagnostic Trouble Codes
2A Checking the System For Diagnostic Trouble Codes
2 Of 2:
1 0f 2:
