Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control System >> Diagnostic Test Procedures >> 23A Checking Open Torque Reduction Request Signal Lines

23A Checking Open Torque Reduction Request Signal Lines

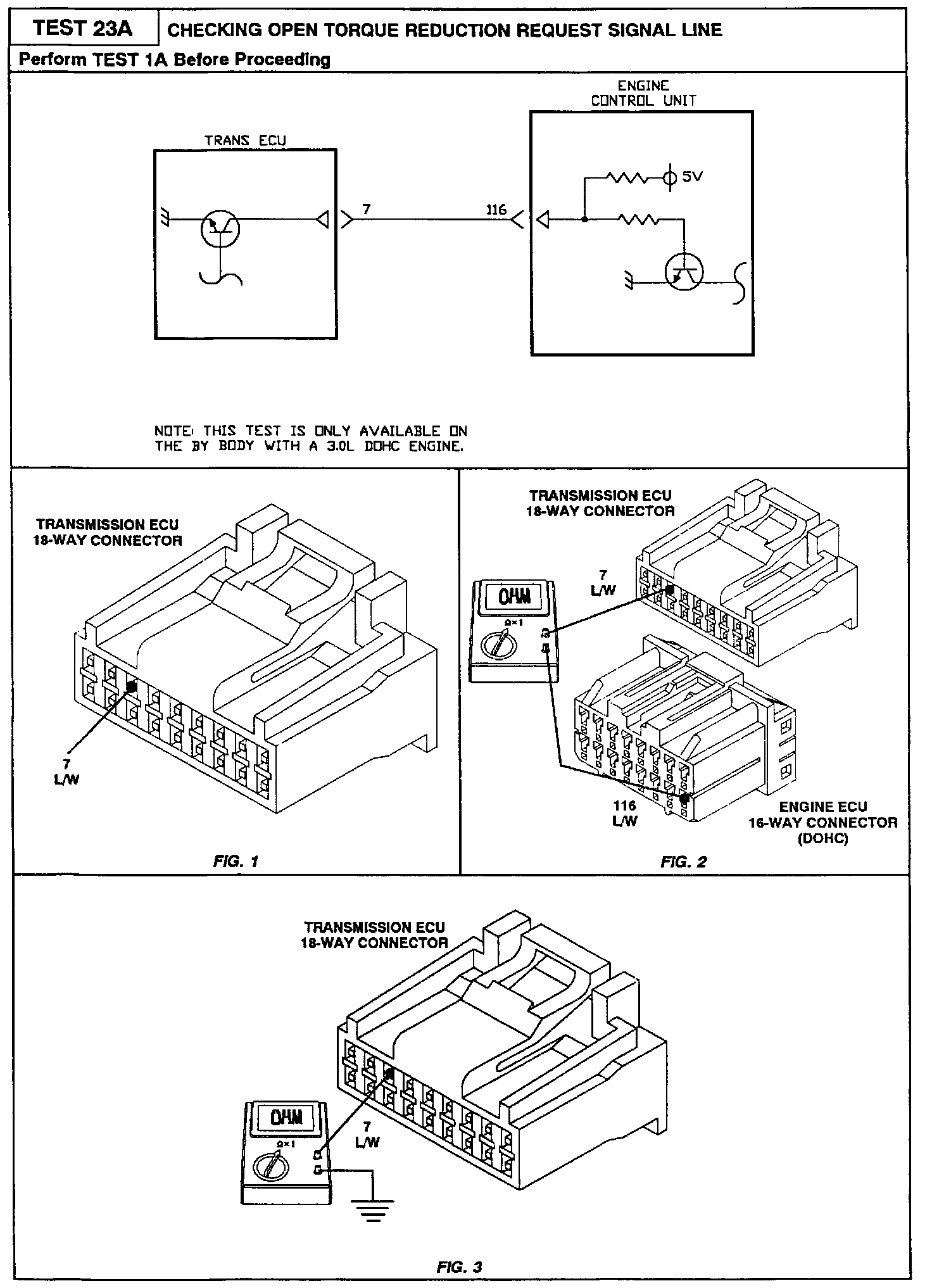

2 Of 2:

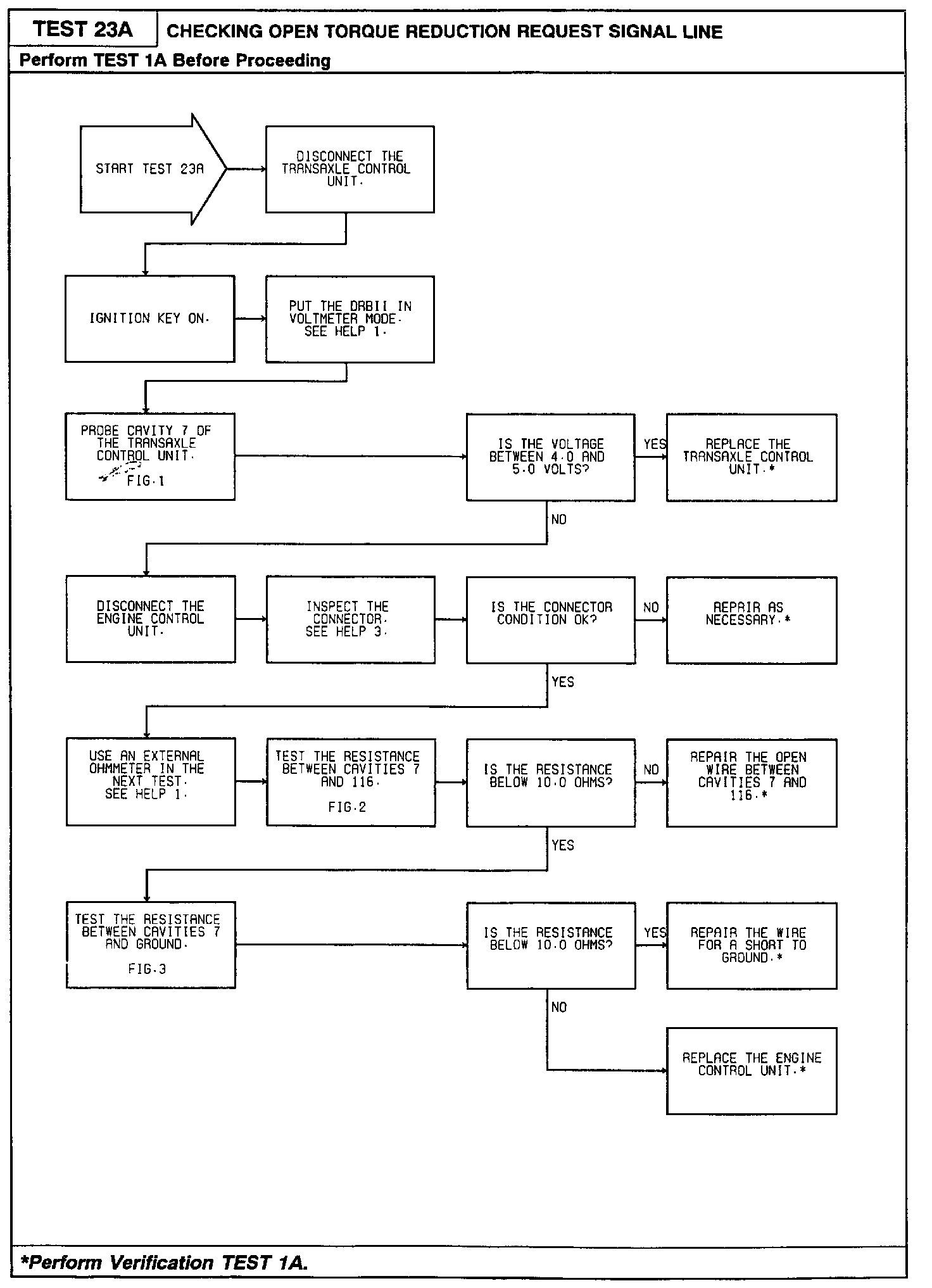

1 Of 2, Test 23A:
