22A Checking Torque Reduction Signal Lines

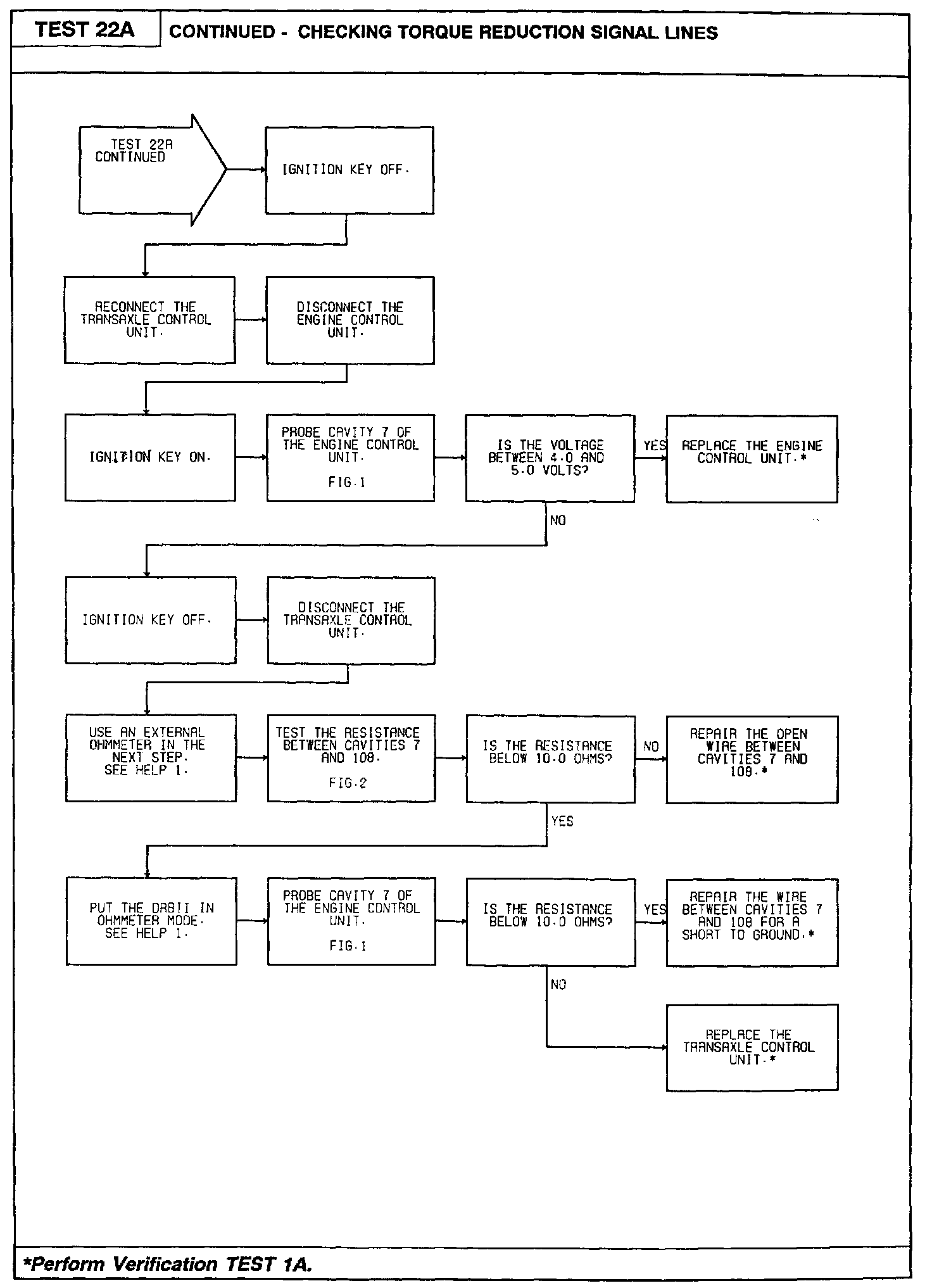

2 0f 4:

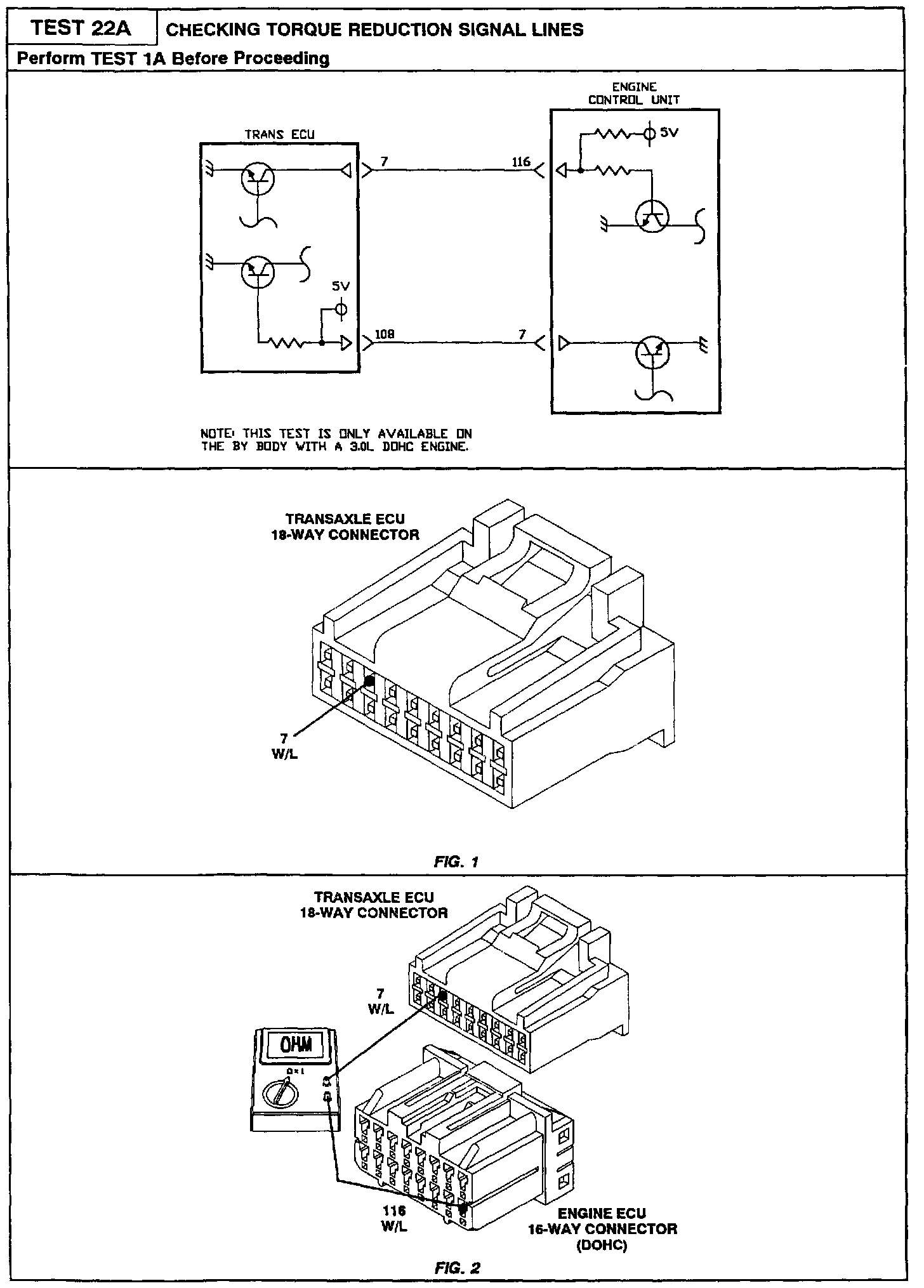

1 Of 4, Start Of Test 22A:

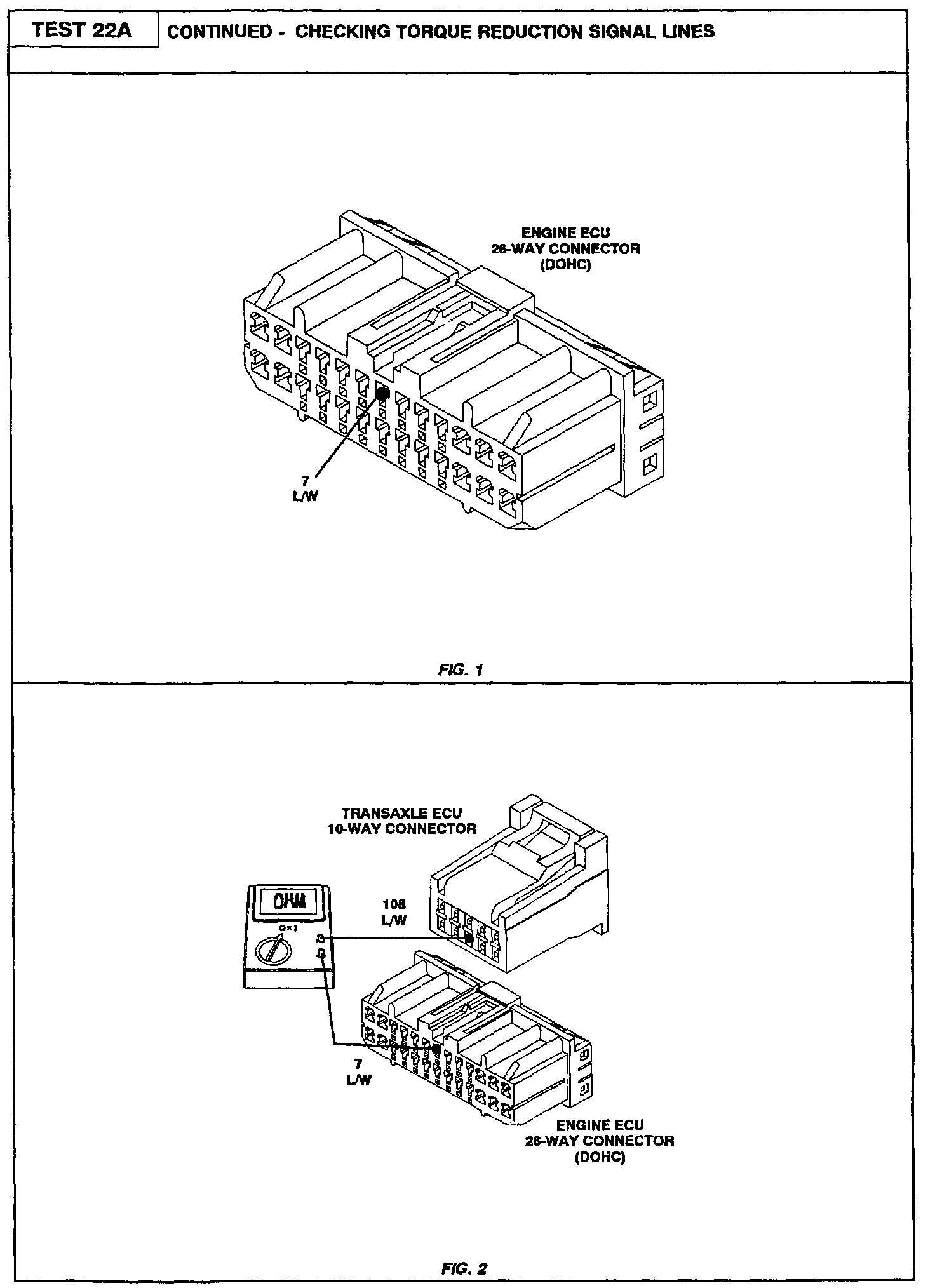

4 Of 4:

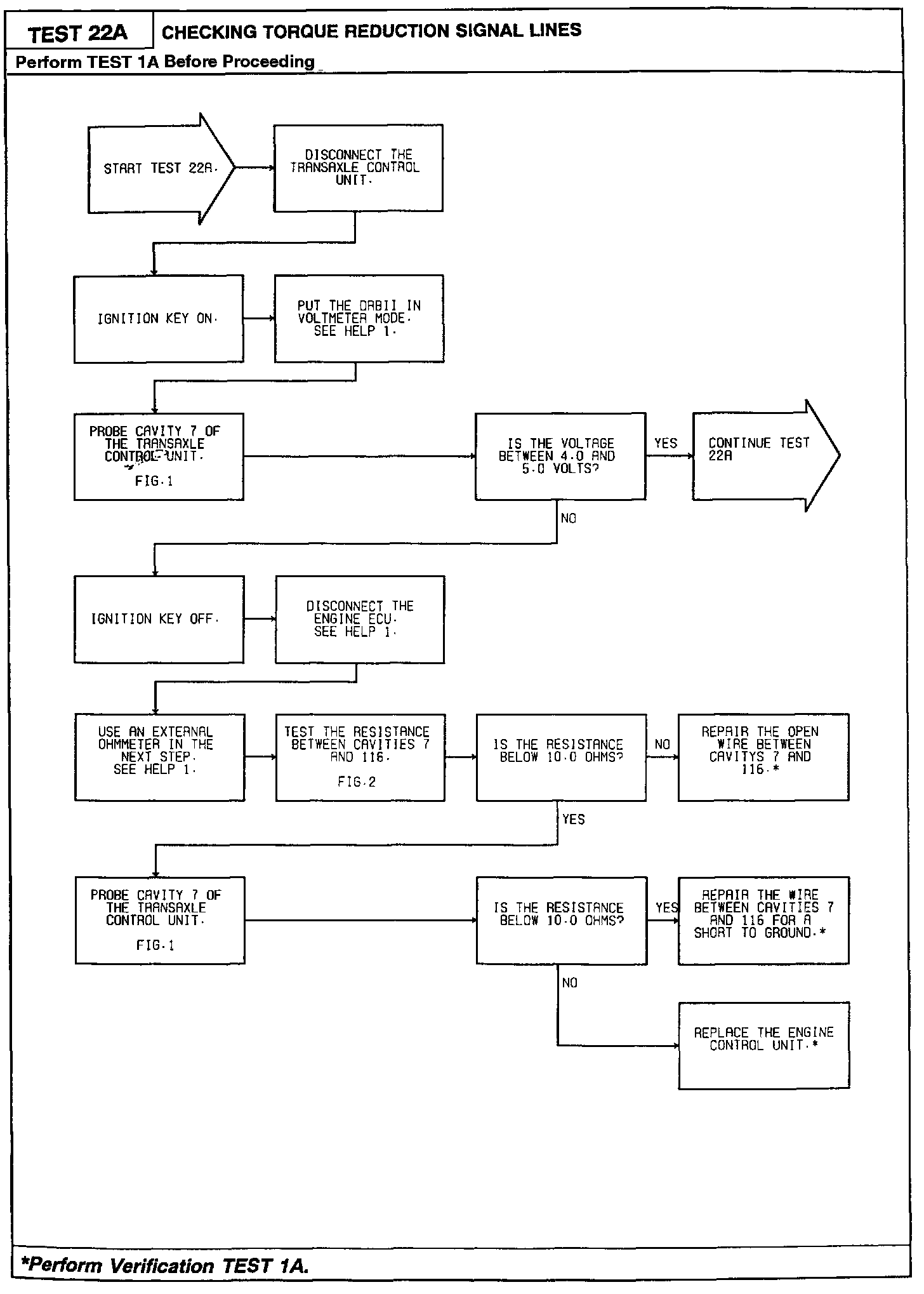

3 Of 4, End Of Test 22A:
