15A Checking Shift Control Solenoid Valve B (SCSV)

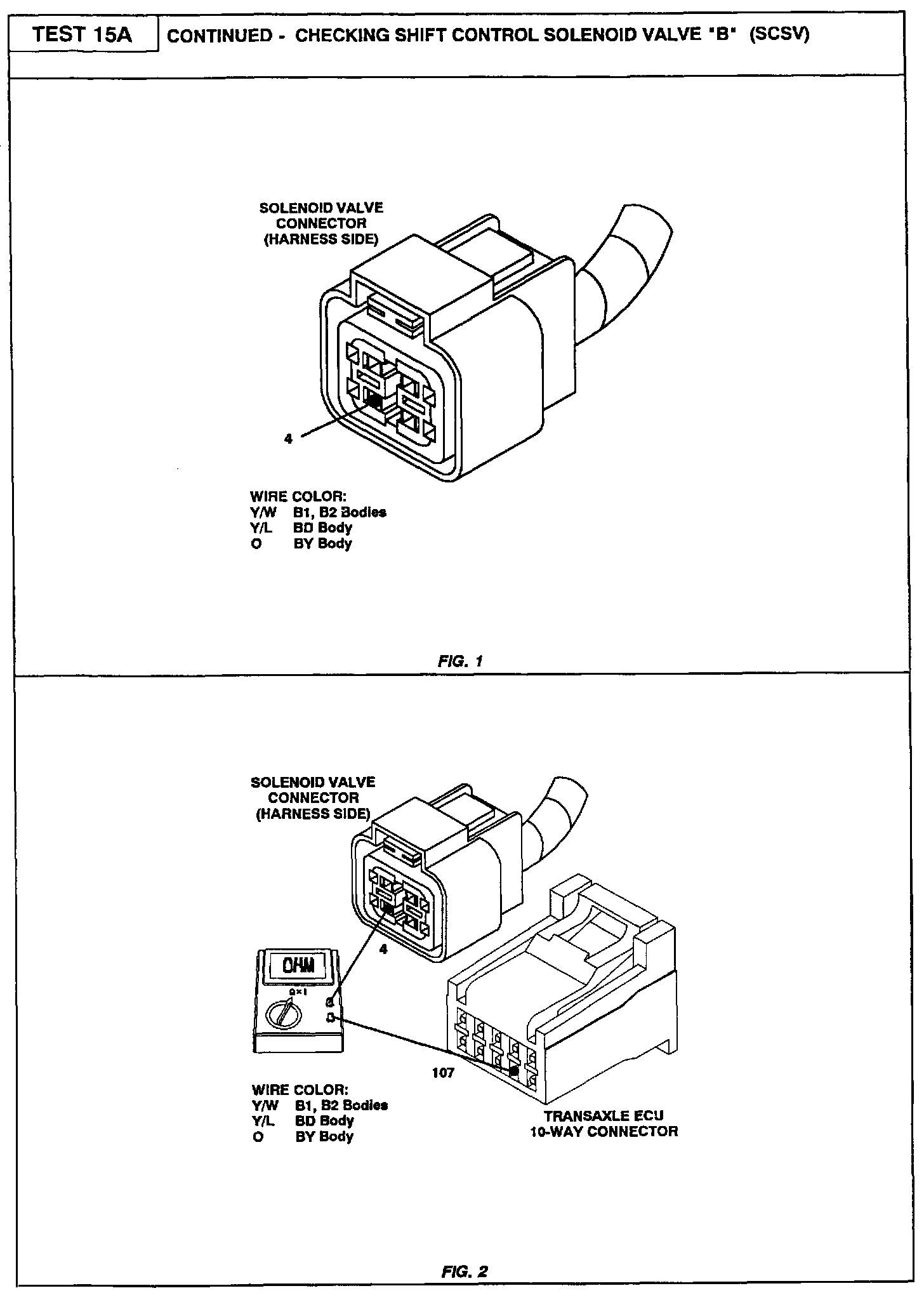

2 Of 4:

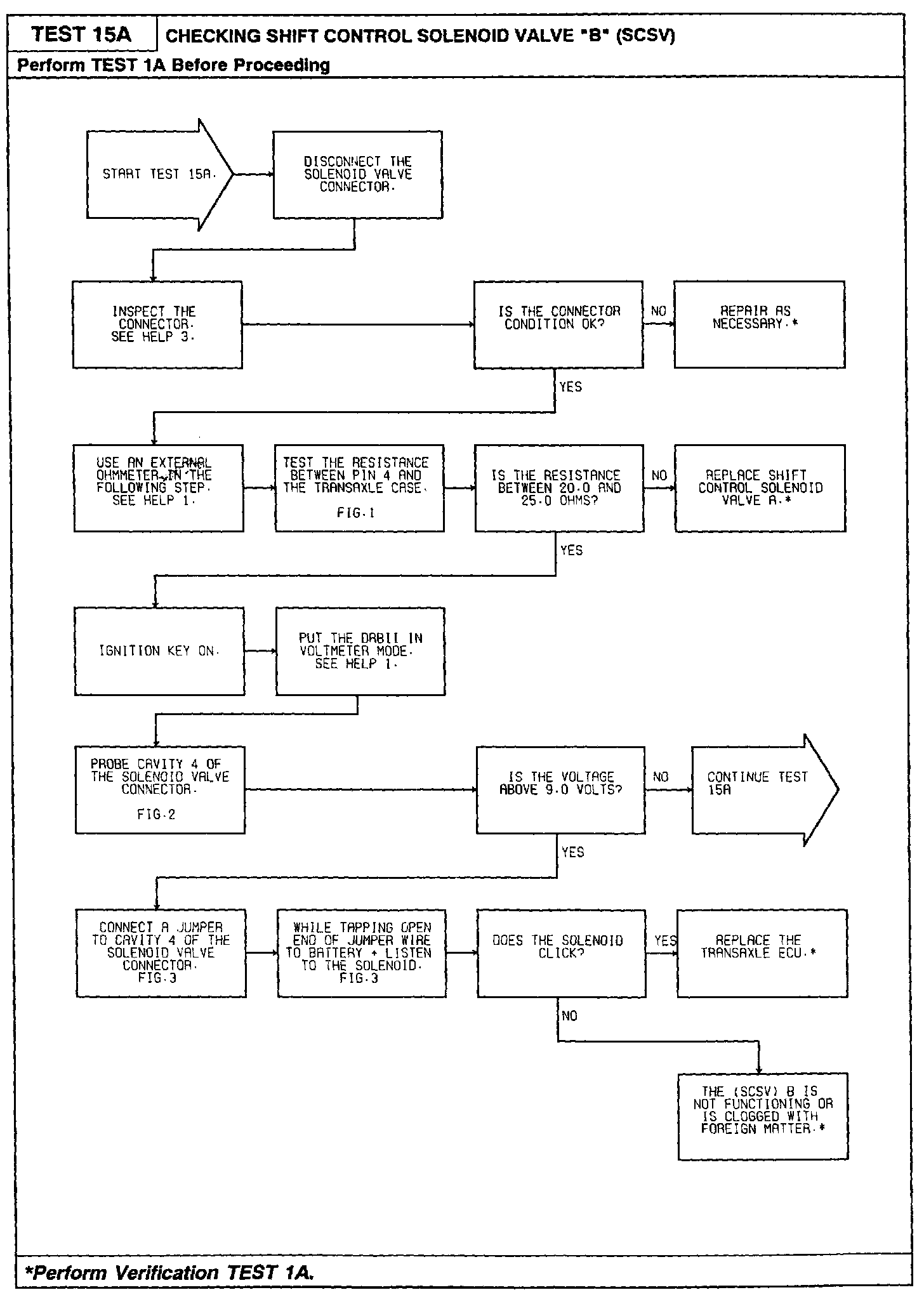

1 Of 4, Start Of Test 15A:

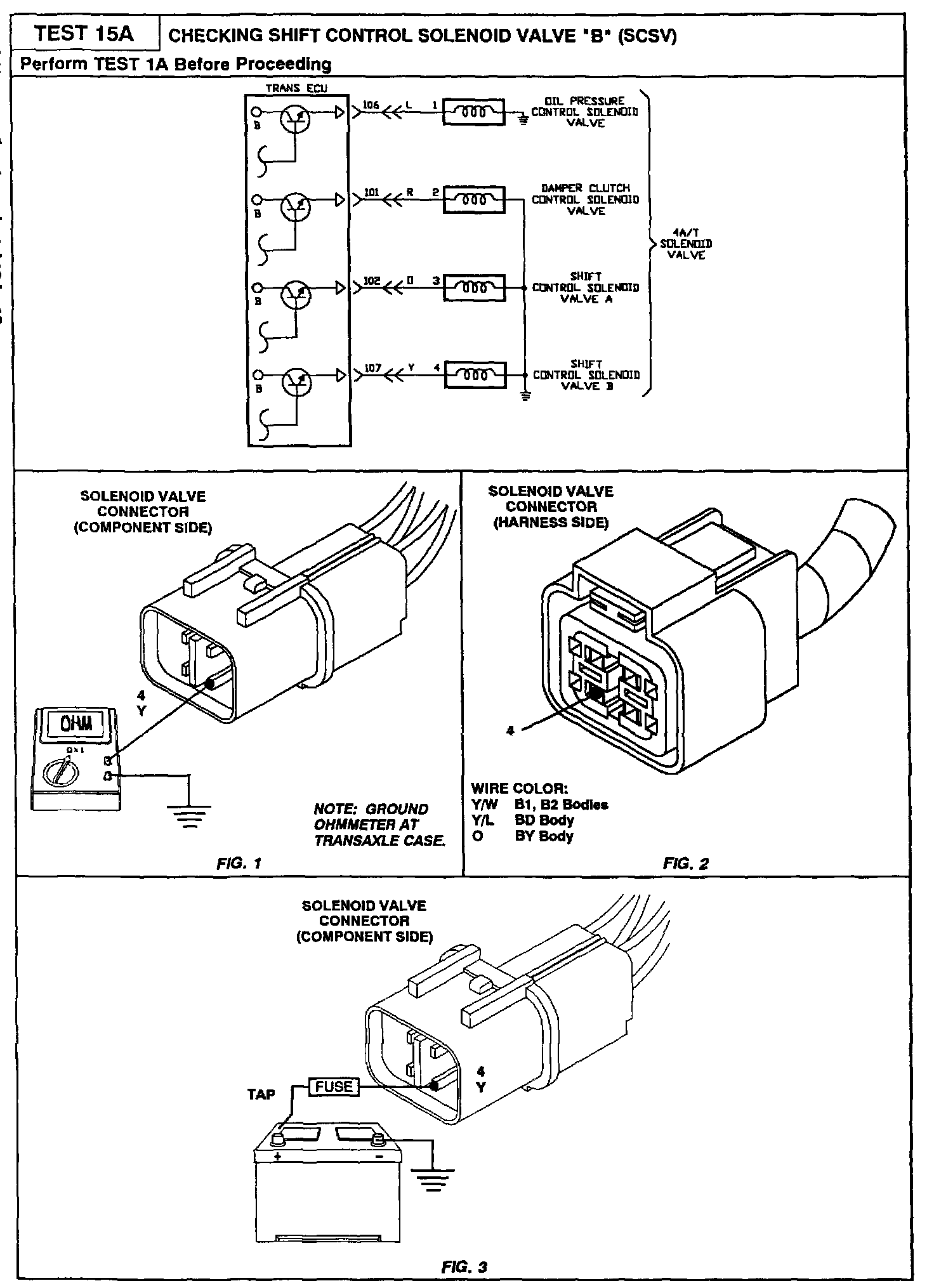

4 Of 4:

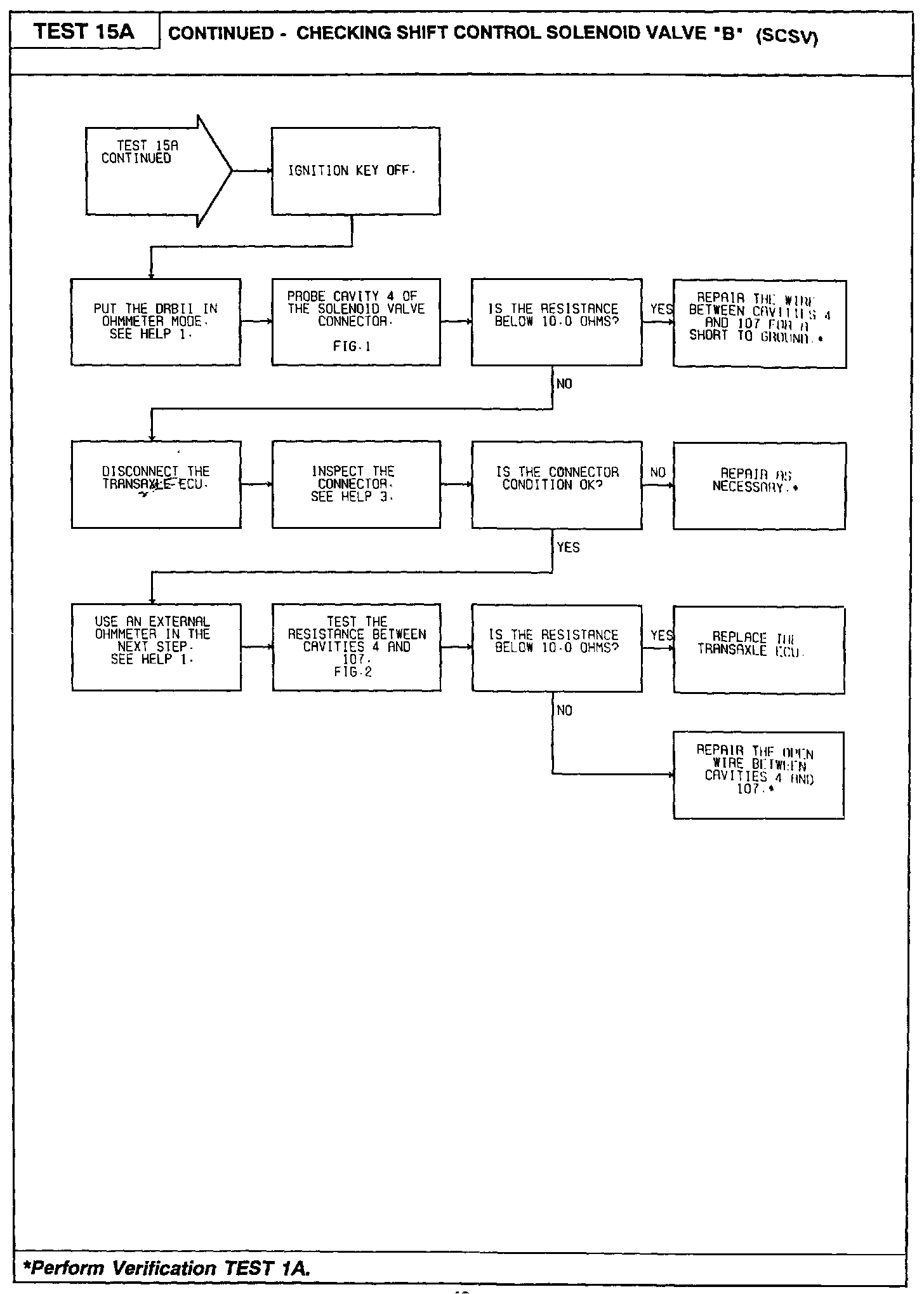

3 Of 4, End Of Test 15A:
