14A Checking Shift Control Solenoid Valve A (SCSV)

2 Of 4:

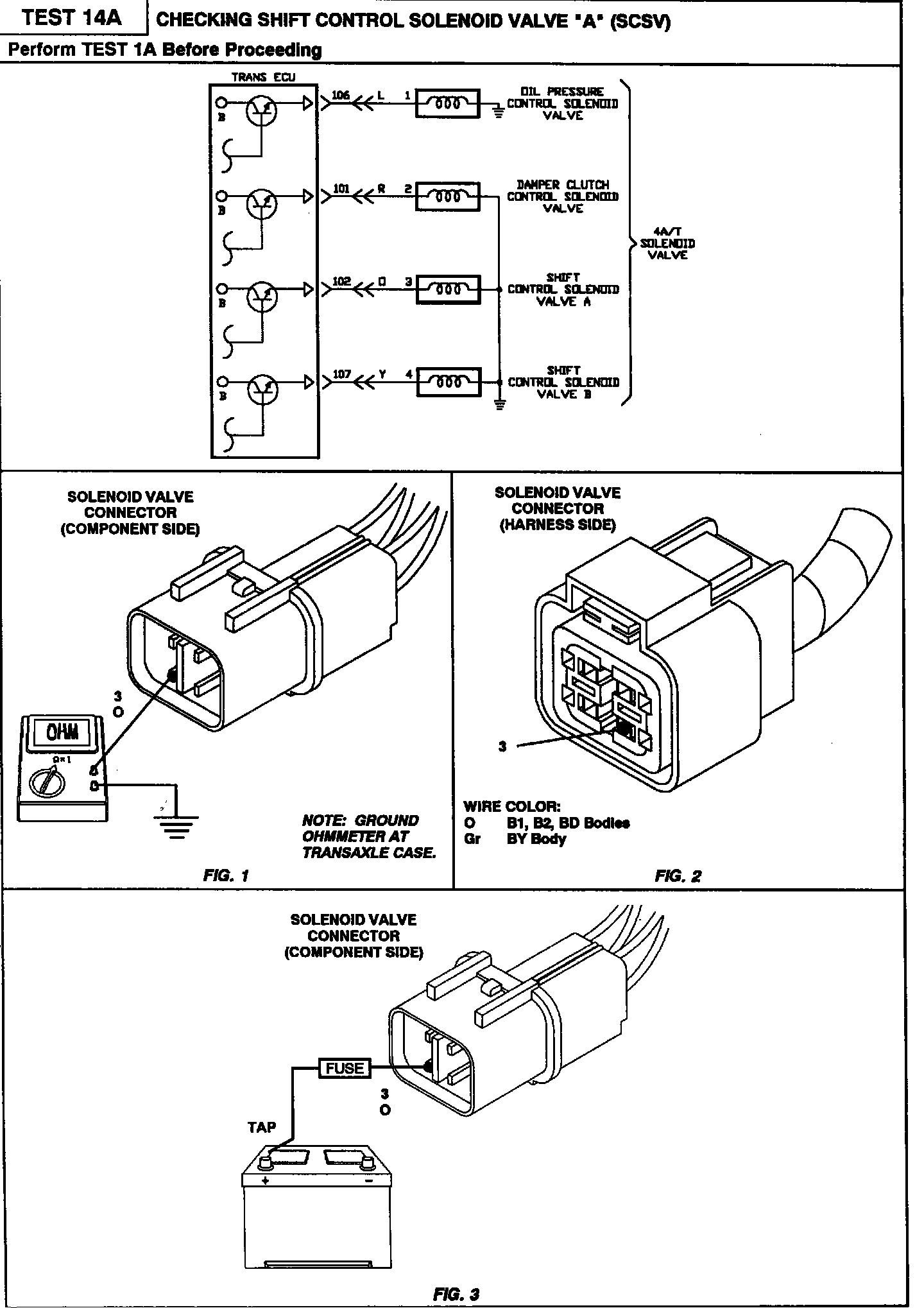

1 Of 4, Start Of Test 14A:



4 Of 4:



3 Of 4, End Of Test 14A:
