FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control System >> Diagnostic Test Procedures >> 11A Checking Acceleration Switch

11A Checking Acceleration Switch

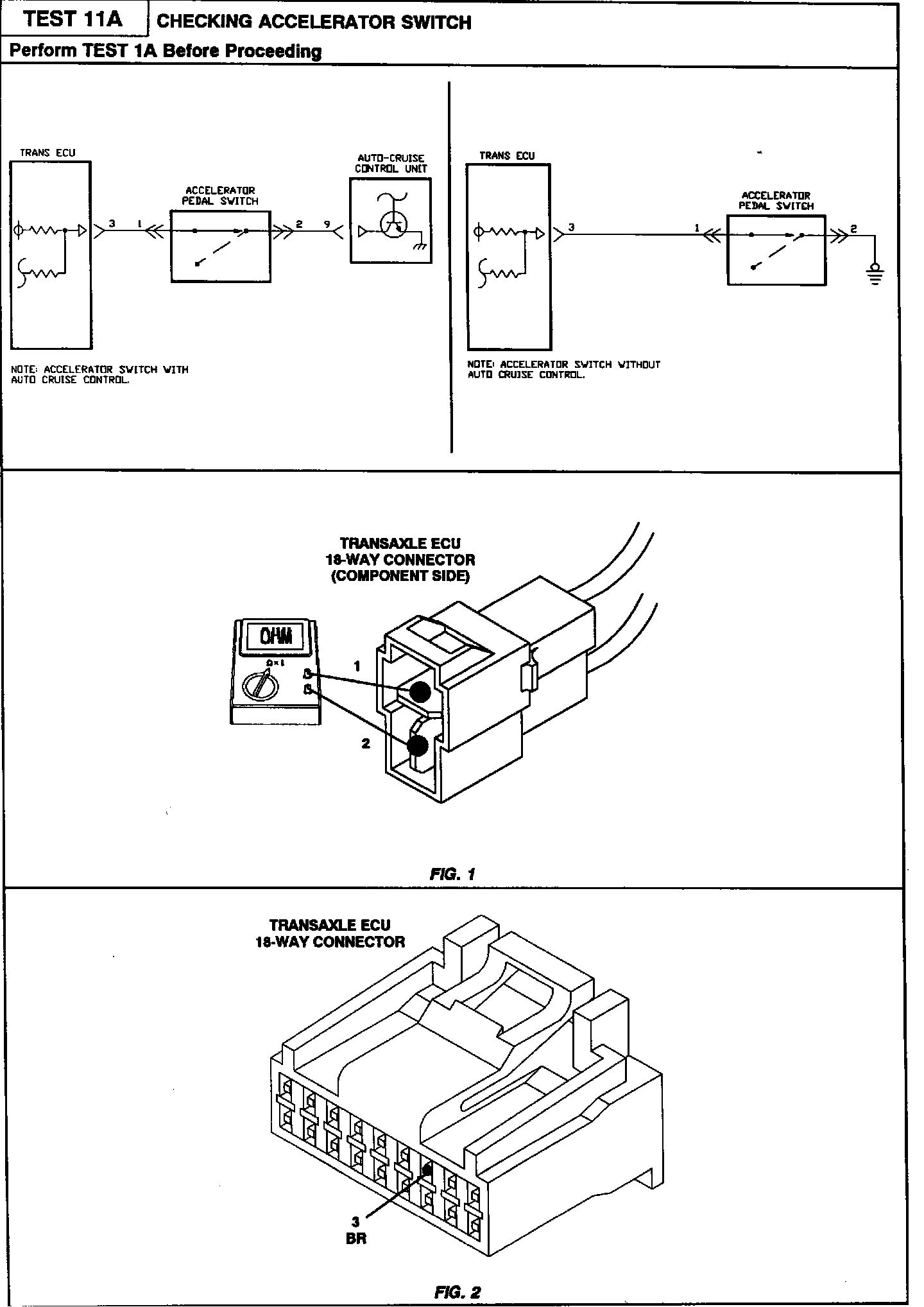

2 Of 2:

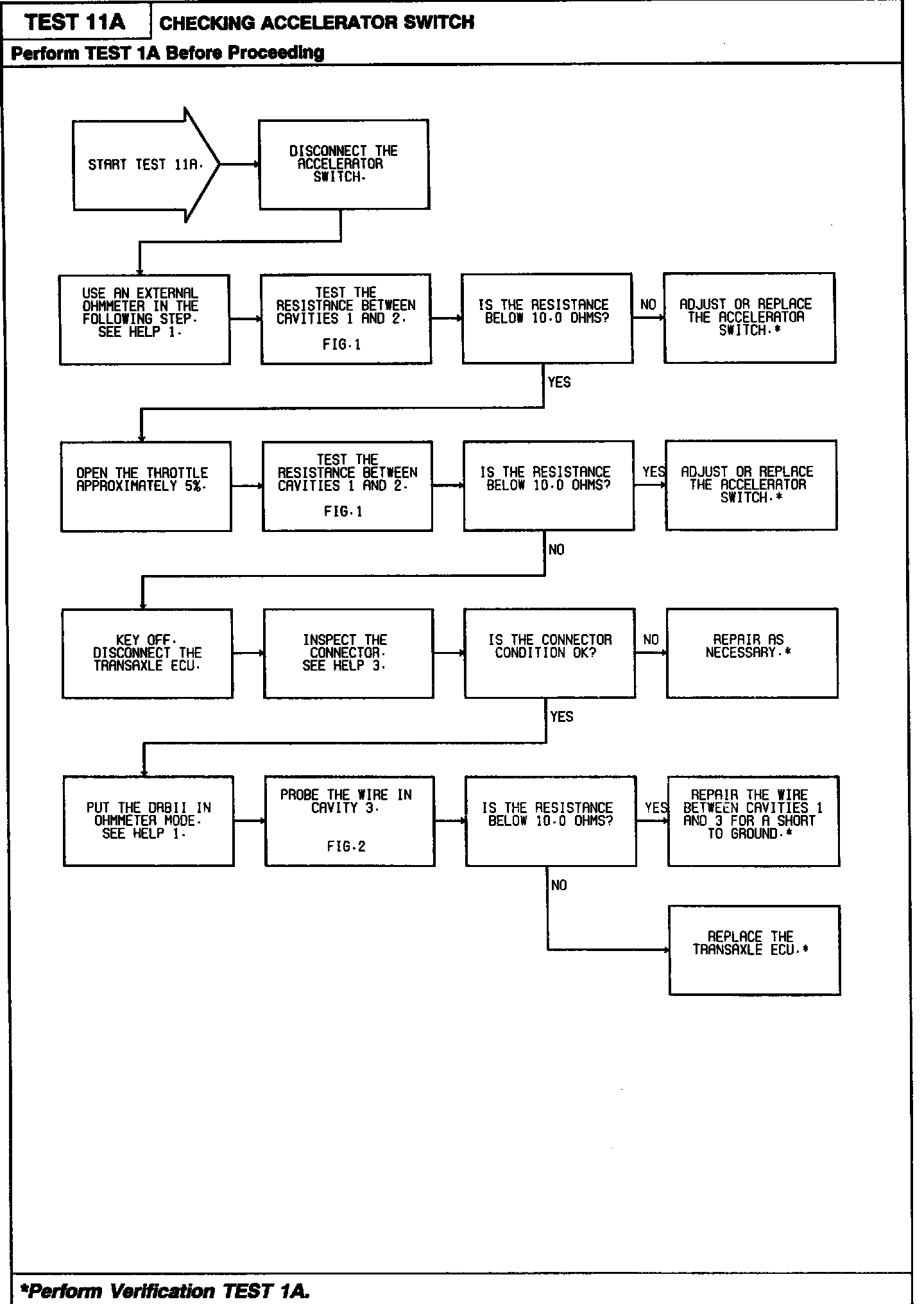

1 Of 2, Test 11A:
