Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations >> Late Models

Late Models

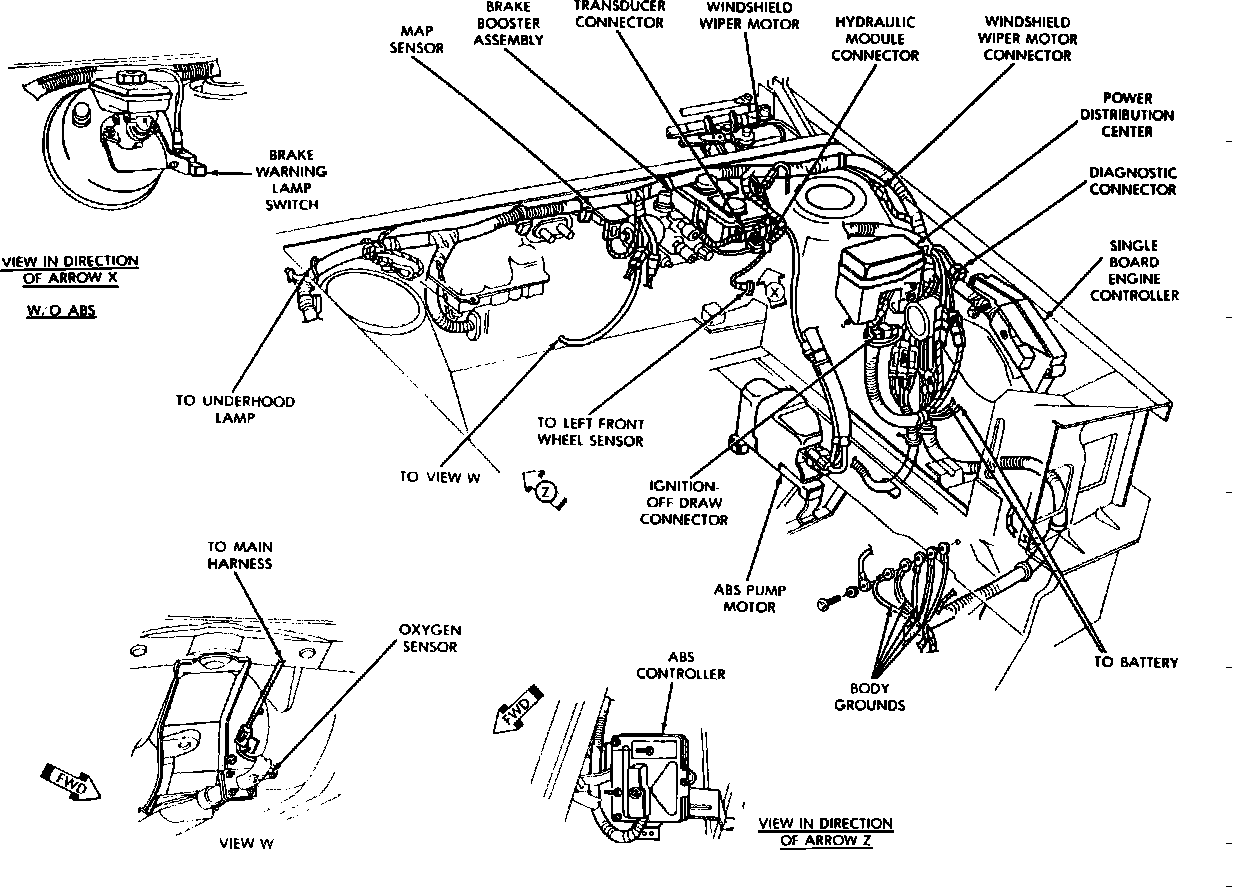

Engine Compartment Components, Left Rear.:




In Exhaust Pipe

Applicable to: Late 1991 & 1992 Models
