Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Component Locations >> Coolant Temperature Sensor >> Late Models

Late Models

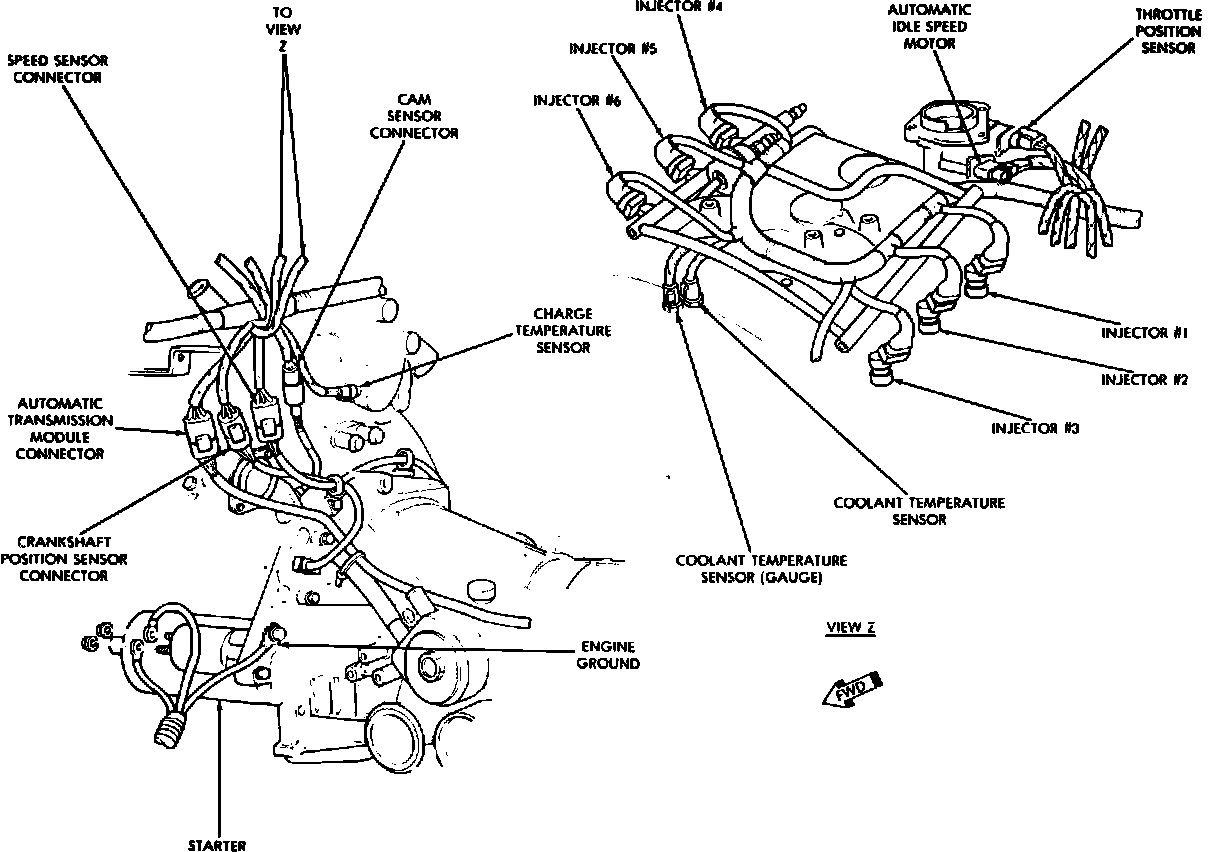

Engine Components, Top & Rear.:




On Top Of Engine

Applicable to: Late 1991 & 1992 Models
