Home >> Eagle >> 1990 >> Premier L4-153 2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seat Belt Control Module

Seat Belt Control Module

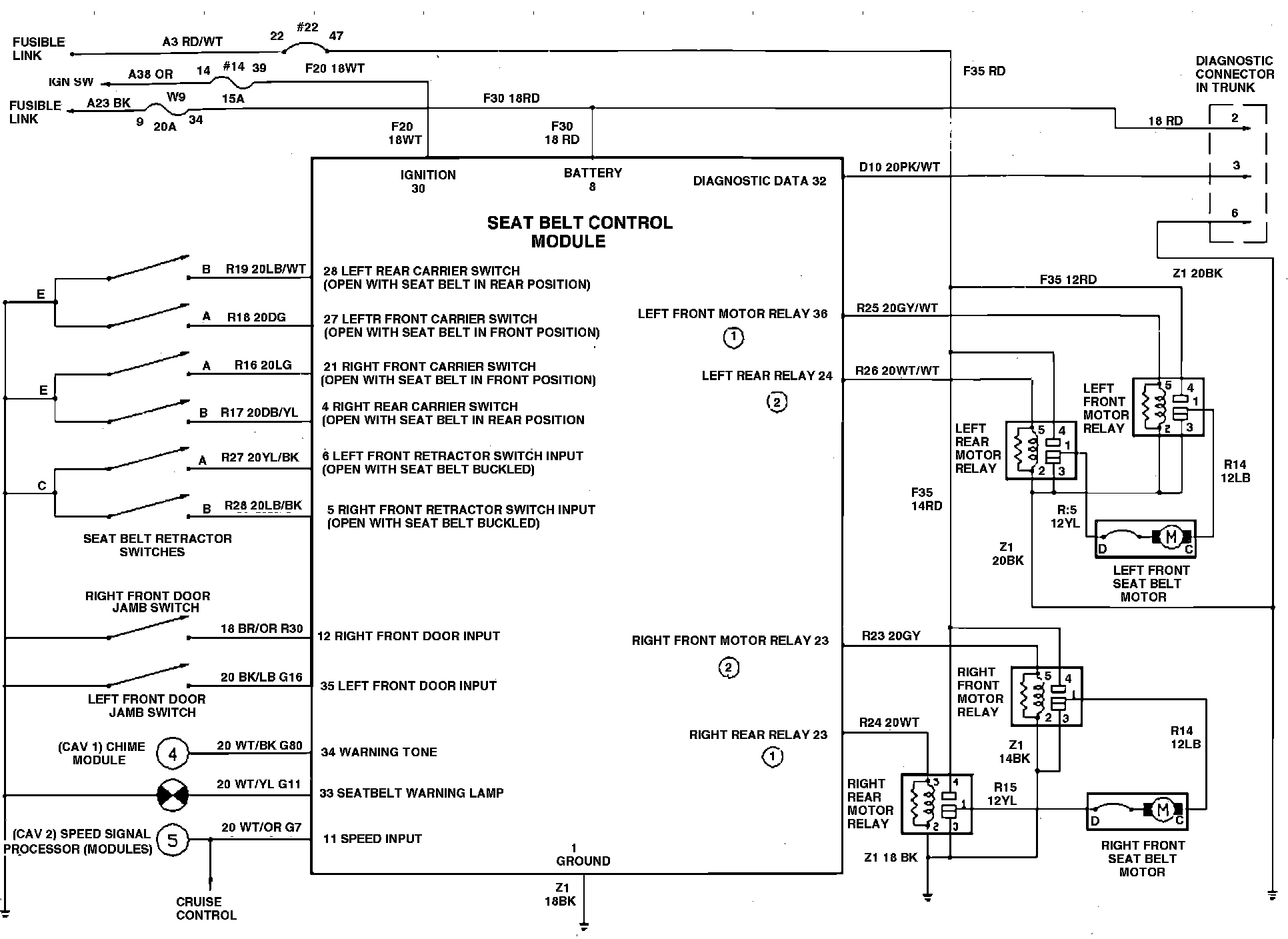

Fig. 78 Passive Restraint System Schematic:
