Torque Converter Hub Seal - Installation

INSTALLATION

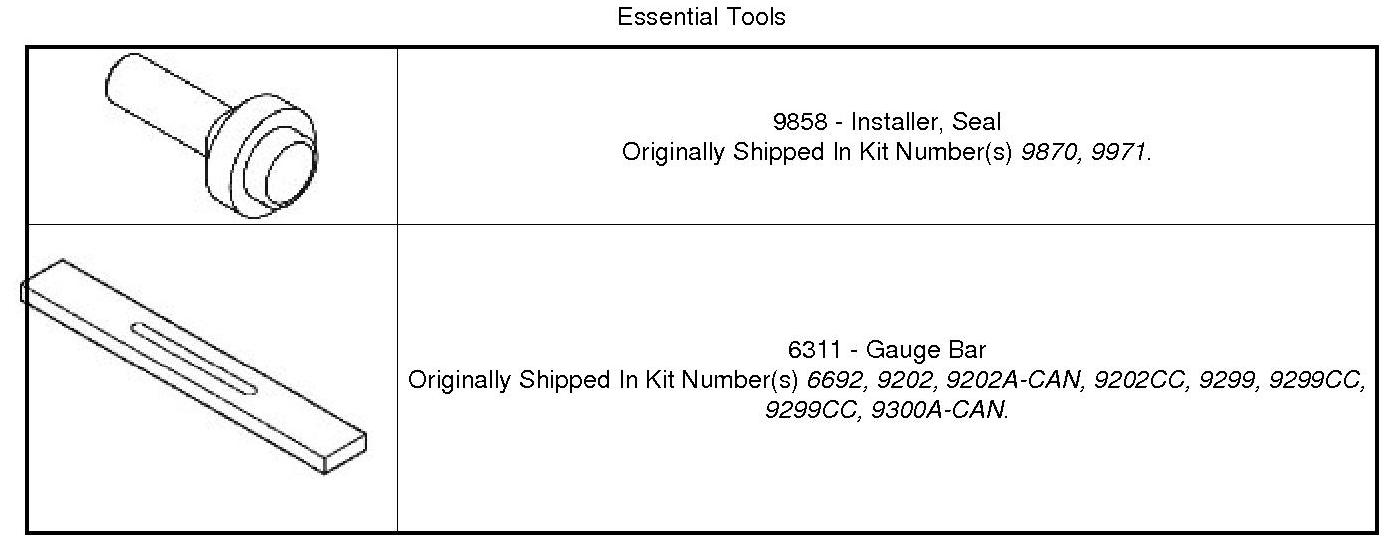

Special Tools:










1. Install torque converter seal using oil seal Installer.






NOTE: Gauge Bar can be used for doing the following measurement.

NOTE: When conducting measurements, measure two or more places and calculate the average value.

2. Install the torque converter on the transaxle and measure the dimension (1)(Figure 2) to see if it is at least 13 mm. If the measurement is less than 13 mm, the torque converter is not fully installed.

NOTE: Use the designated brand of CVT fluid. Use of other brands of CVT fluid other than the designated brand will deteriorate the driveability and the durability of the CVT, and will cause damage to the CVT.

3. Install the transmission Installation.
