Instrument Cluster - Removal

REMOVAL

CLUSTER ASSEMBLY





1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel top panel cover Instrument Panel Pad - Removal.

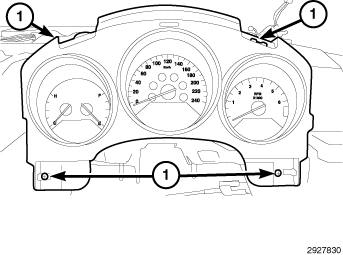

3. Remove the screws (1) that secure the bezel and cluster assembly to the instrument panel.
4. Position the instrument cluster to expose the electrical connectors.
5. Disconnect the electrical connectors and remove bezel and cluster assembly from instrument panel.





6. If removing the bezel, remove the retaining screws (1) and separate the cluster bezel from cluster.

MASK AND LENS ASSEMBLY





NOTE: The mask and lens are serviced together as a unit. If replacement is required for either of these components, they both will be replaced as a unit.

1. Remove the instrument cluster assembly from the vehicle. 1

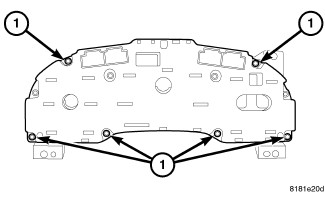

2. To separate the mask and lens assembly from the cluster housing, remove the screws (1) along the top and bottom back of the cluster.
