Compass Module - Removal

REMOVAL






WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: RHD model shown in illustration. LHD model similar.

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel cover, Instrument Panel Pad - Removal.

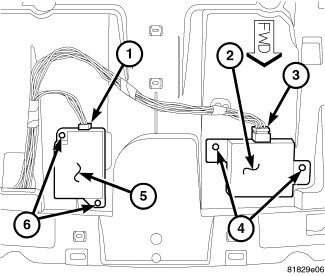

3. Remove the screws (6) securing the Remote Compass Module (RCM) (5) to the instrument panel.
4. Disconnect the RCM electrical connector (1) and remove the RCM from the vehicle.
