Home >> Dodge >> 2002 >> Viper RT-10 V10-8.0L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Temperature Sensor >> Testing and Inspection

Battery Temperature Sensor: Testing and Inspection

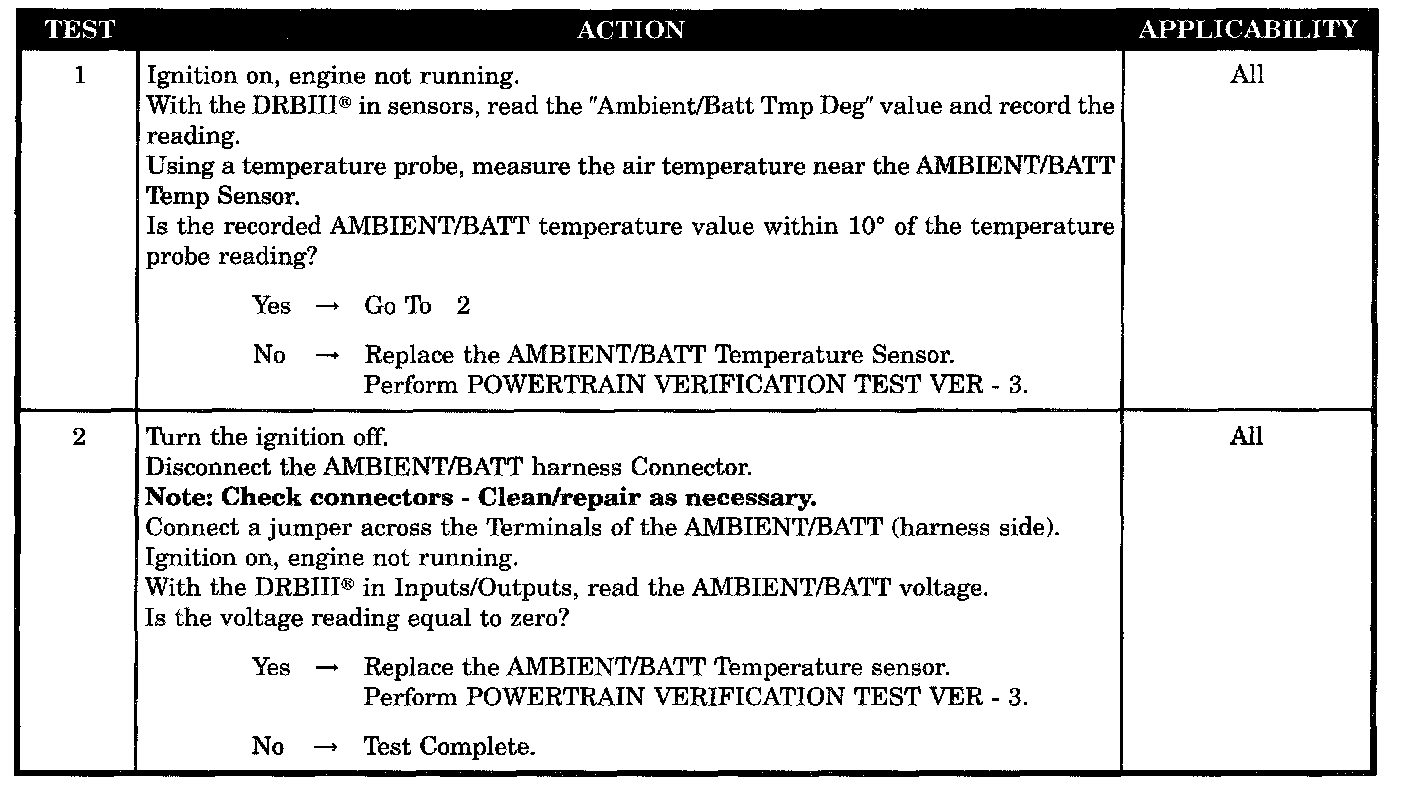

Tests 1 - 2:




SYMPTOM
CHECKING THE AMBIENT/BATTERY TEMPERATURE SENSOR

POSSIBLE CAUSES
- Ambient/Batt (Out Of Calibration)
- Ambient/Batt Temperature Sensor
