Coolant Temperature Sensor/Switch (For Computer): Locations
ECT/TPS:

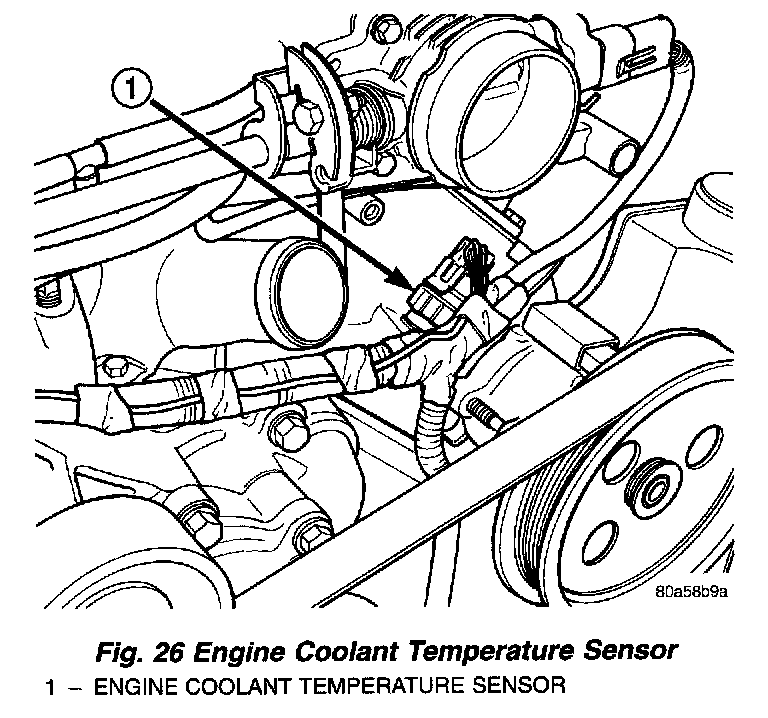

Fig. 26 Engine Coolant Temperature Sensor:
The Engine Coolant Temperature (ECT) sensor threads into the front of the driver side cylinder head.
