Engine Control Module

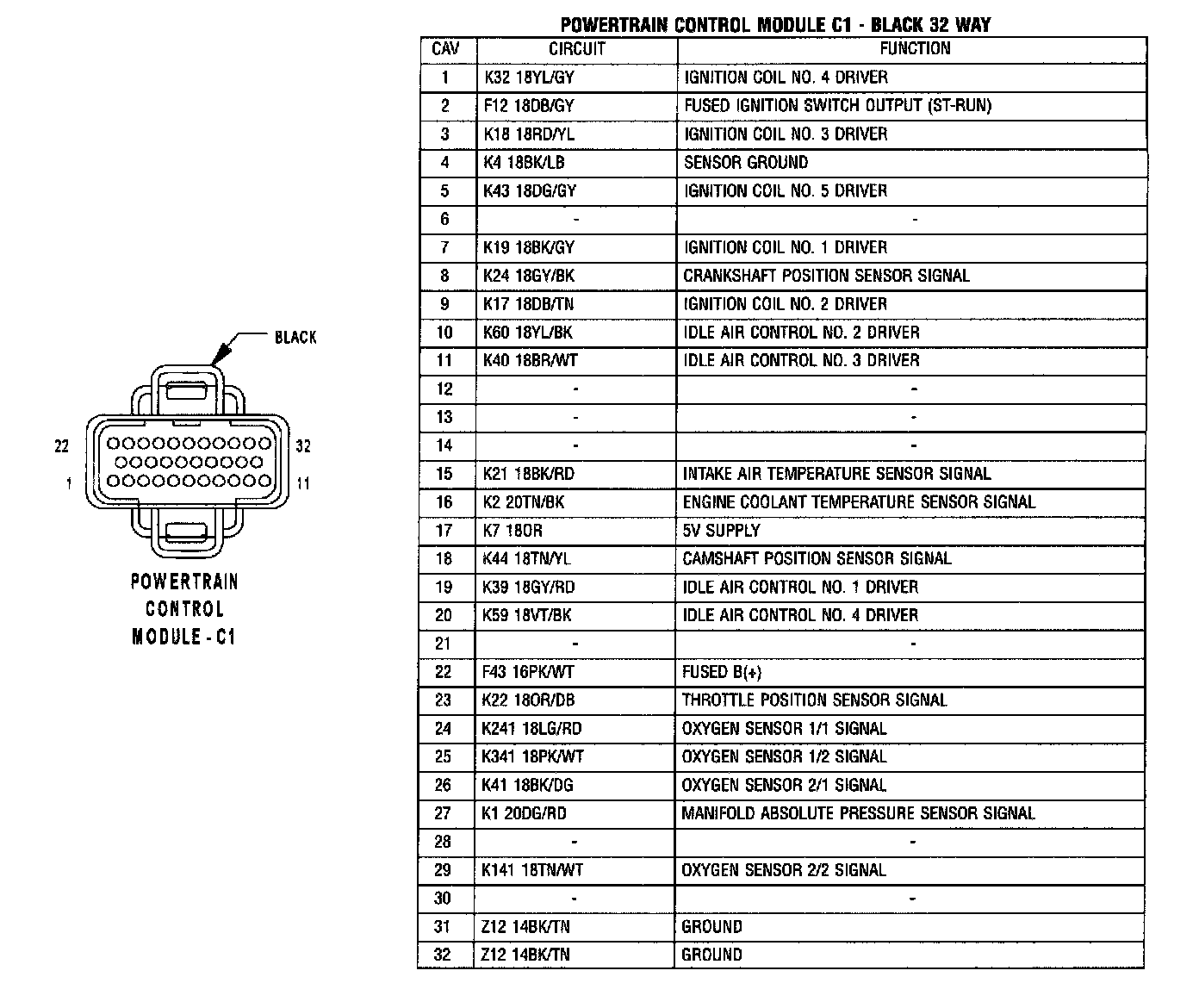

Powertrain Control Module-C1:

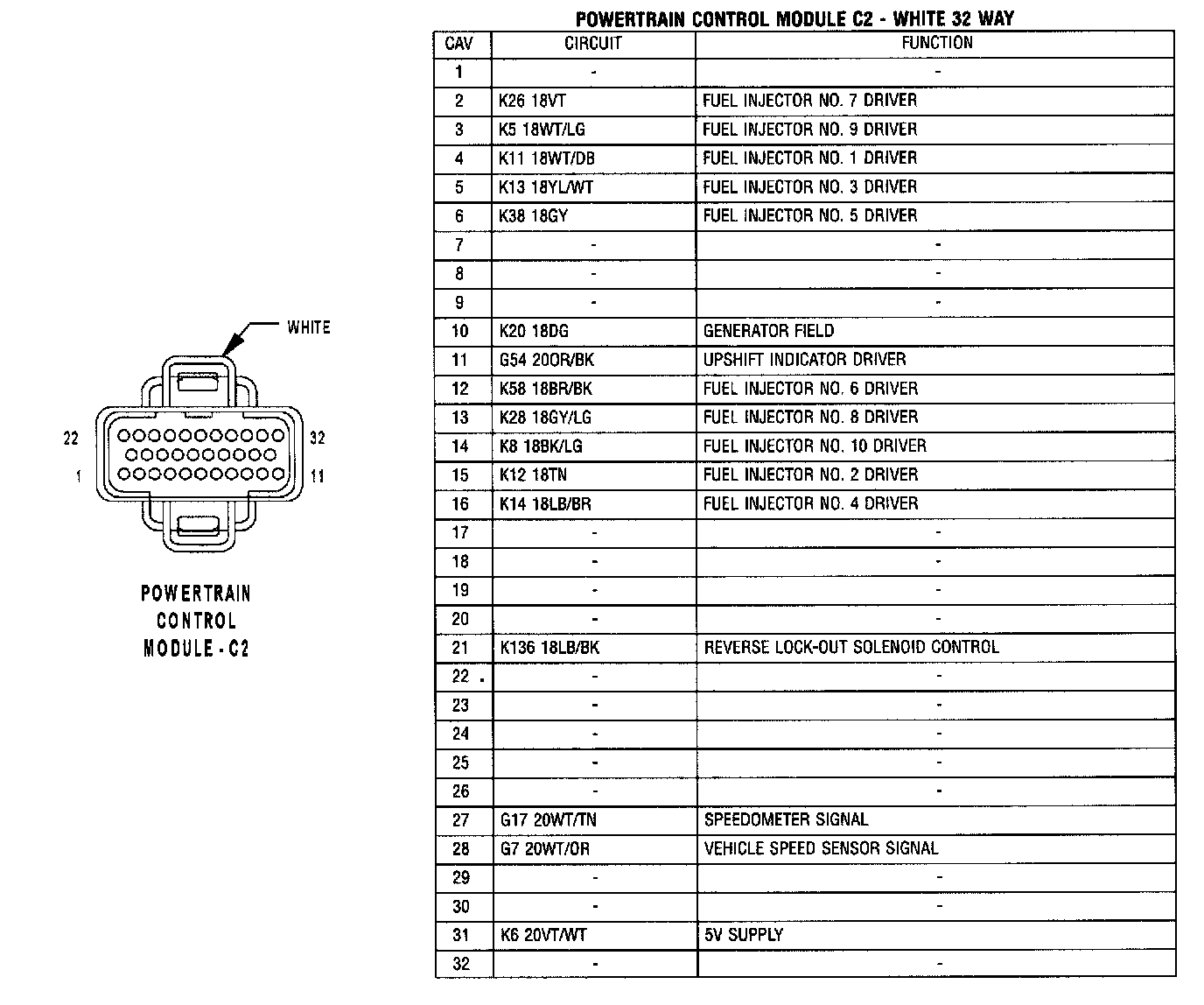

Powertrain Control Module-C2:

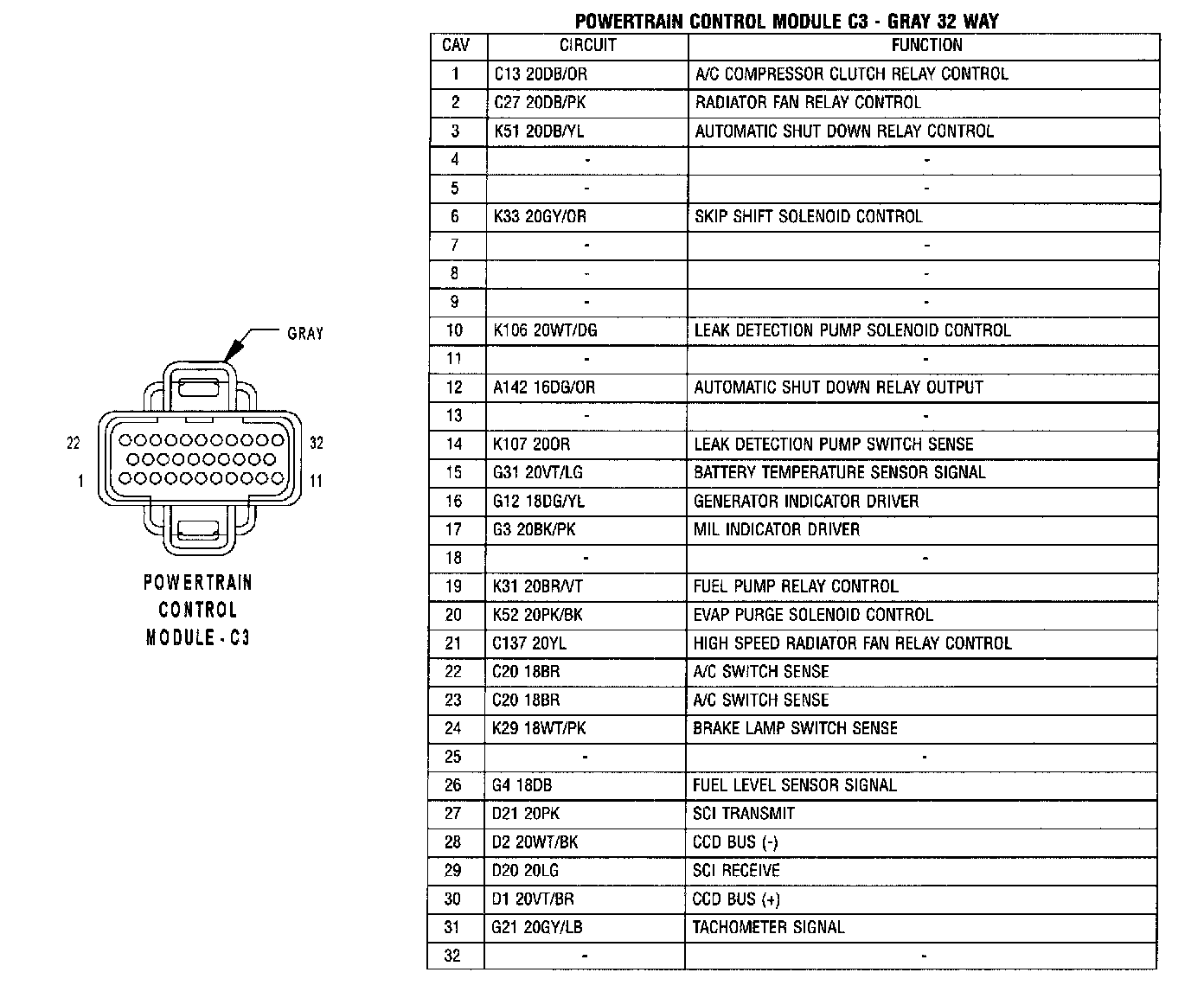

Powertrain Control Module-C3:
