Instrument Cluster Mask/Lens Replacement





REMOVAL
1. Remove Cluster Hood. Instrument Cluster Hood Replacement

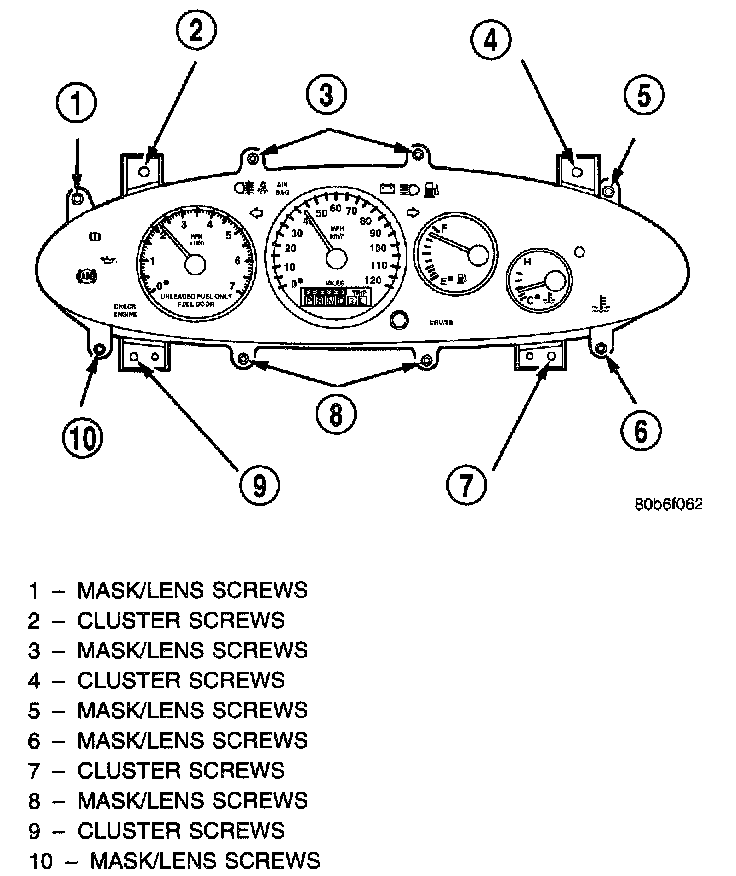

Mask/Lens Retaining Screws:




Remove mask/lens retaining screws and remove mask/lens.

INSTALLATION
For installation, reverse the above procedures.
