Intake Manifold Torque Sequence

Figure 14-Upper Intake Manifold Tightening Sequence:

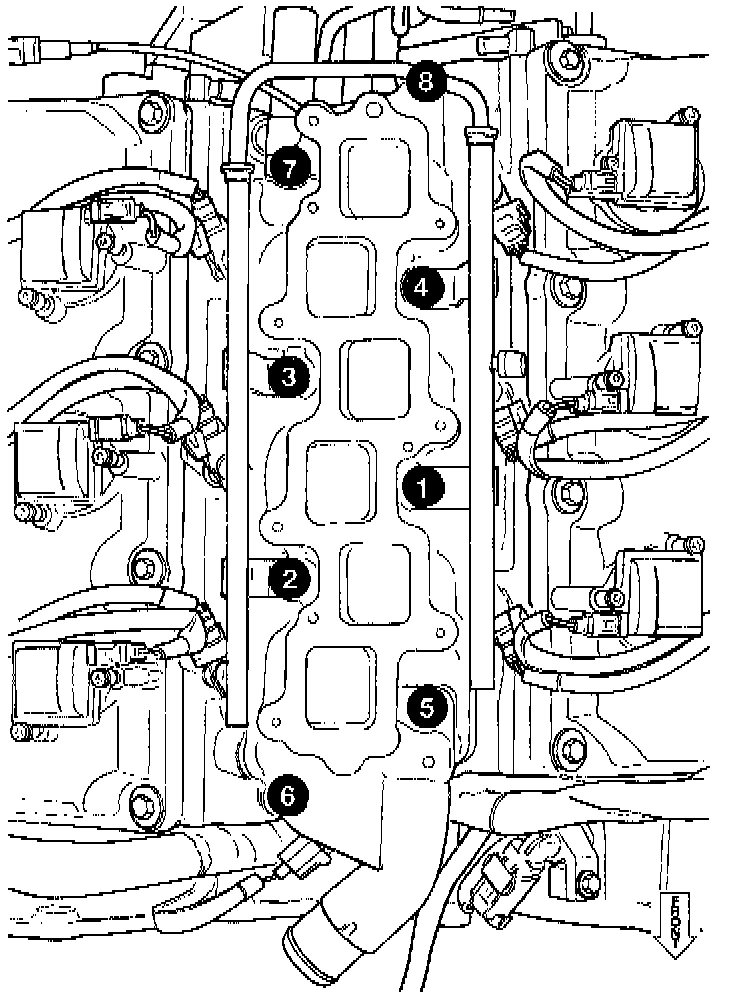

Figure 15-Lower Intake Manifold Tightening Sequence:
