Home >> Dodge >> 1996 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

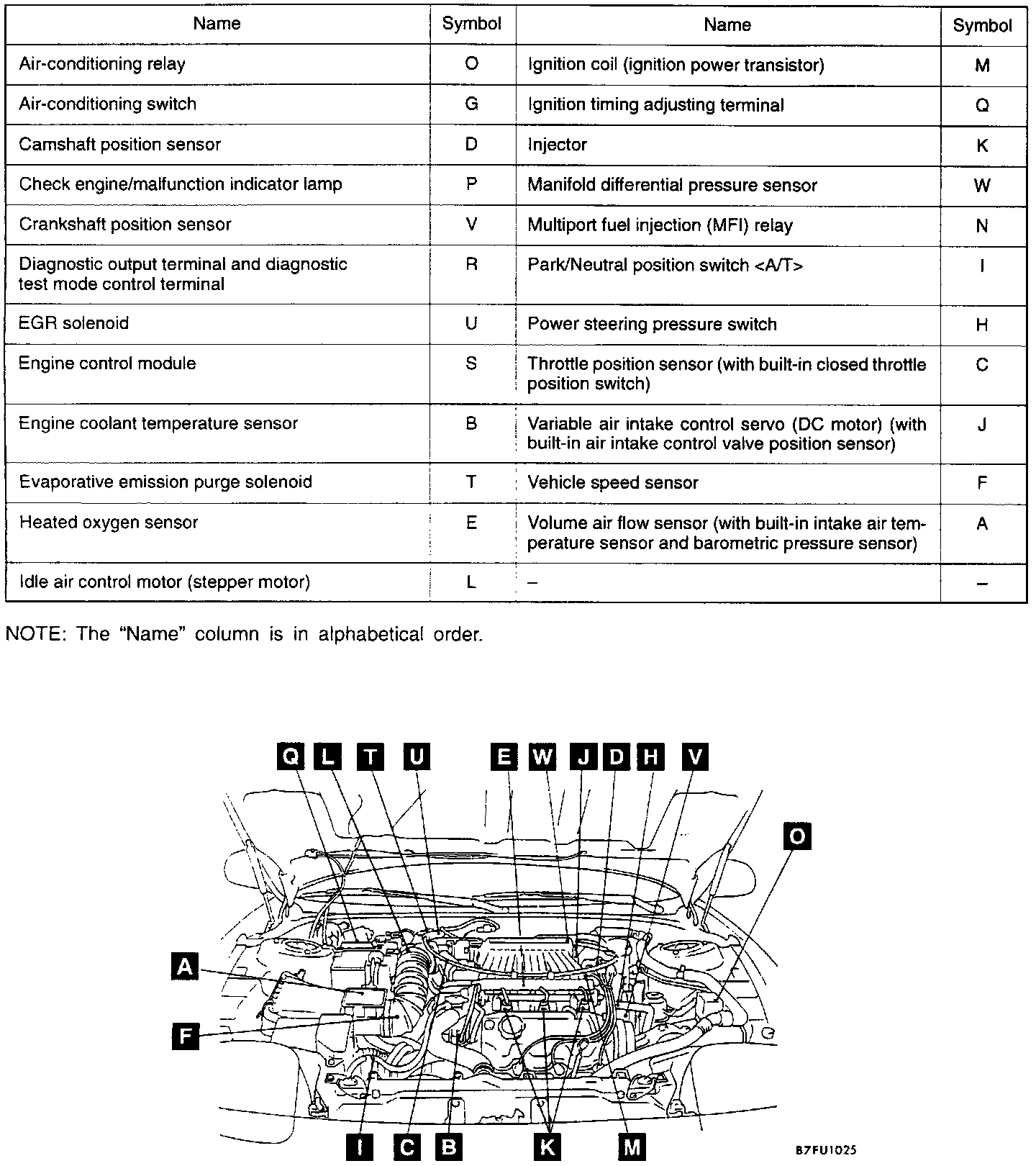

Component Overviews

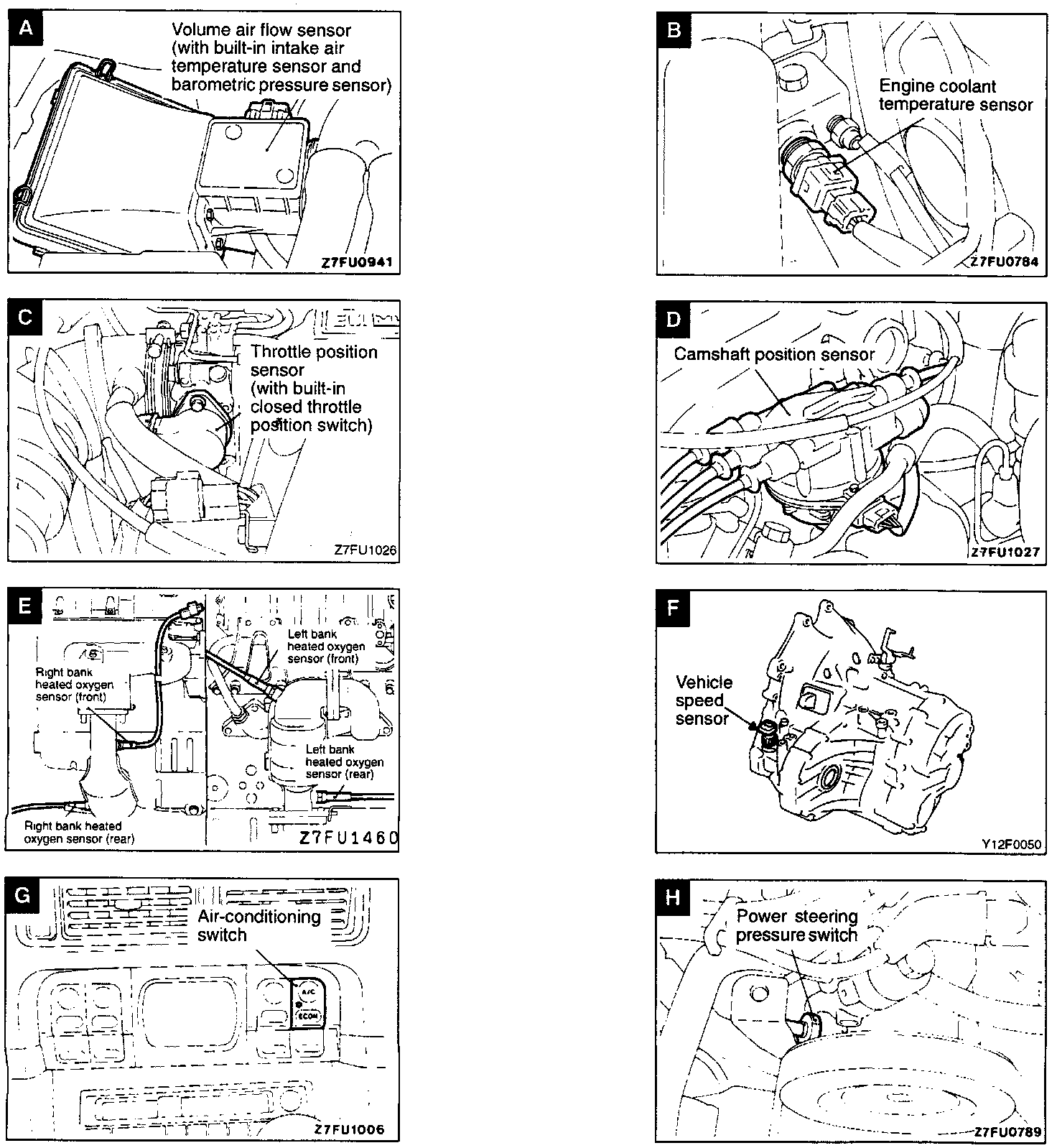

Locations A through H

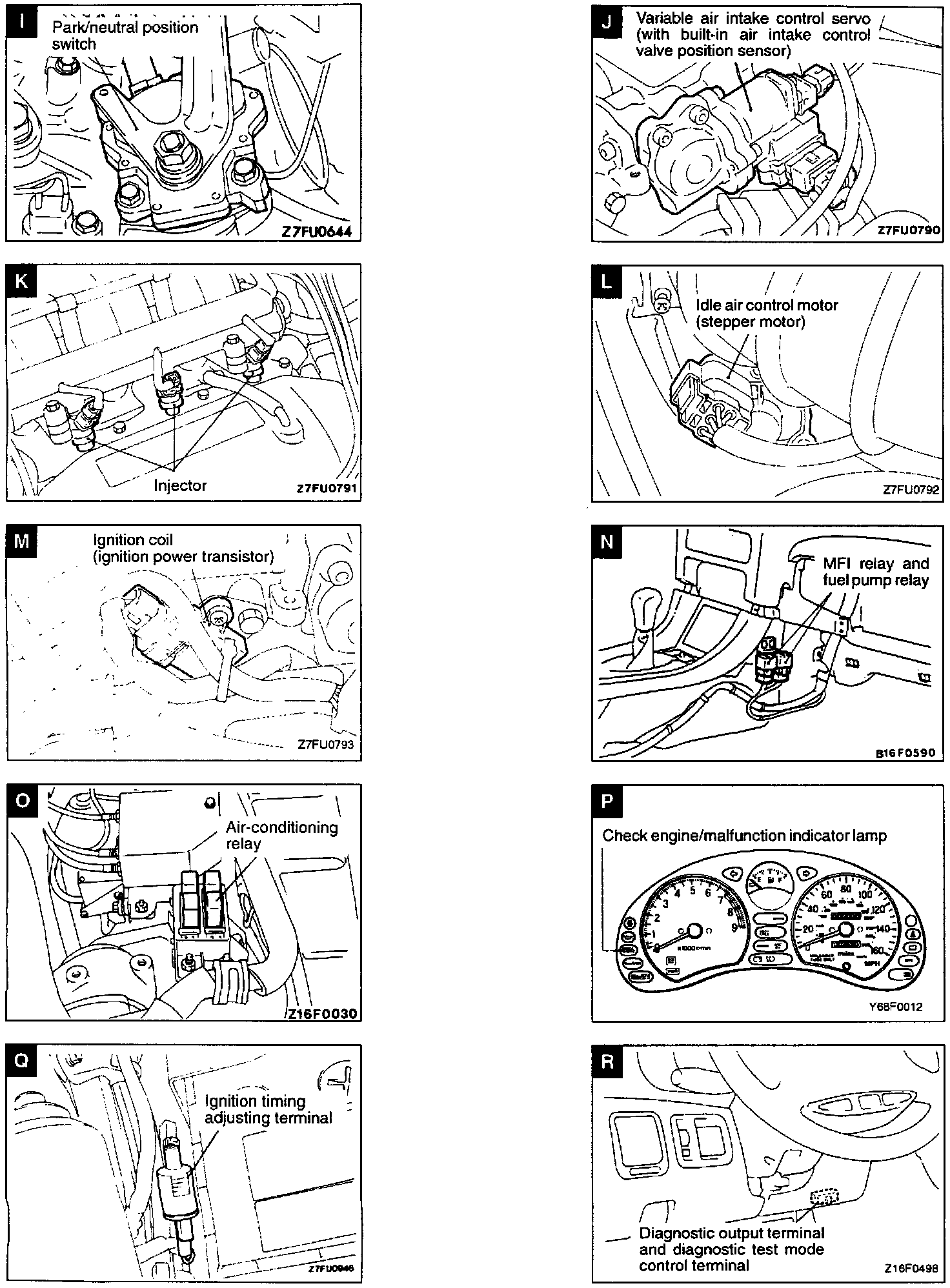

Locations I through R

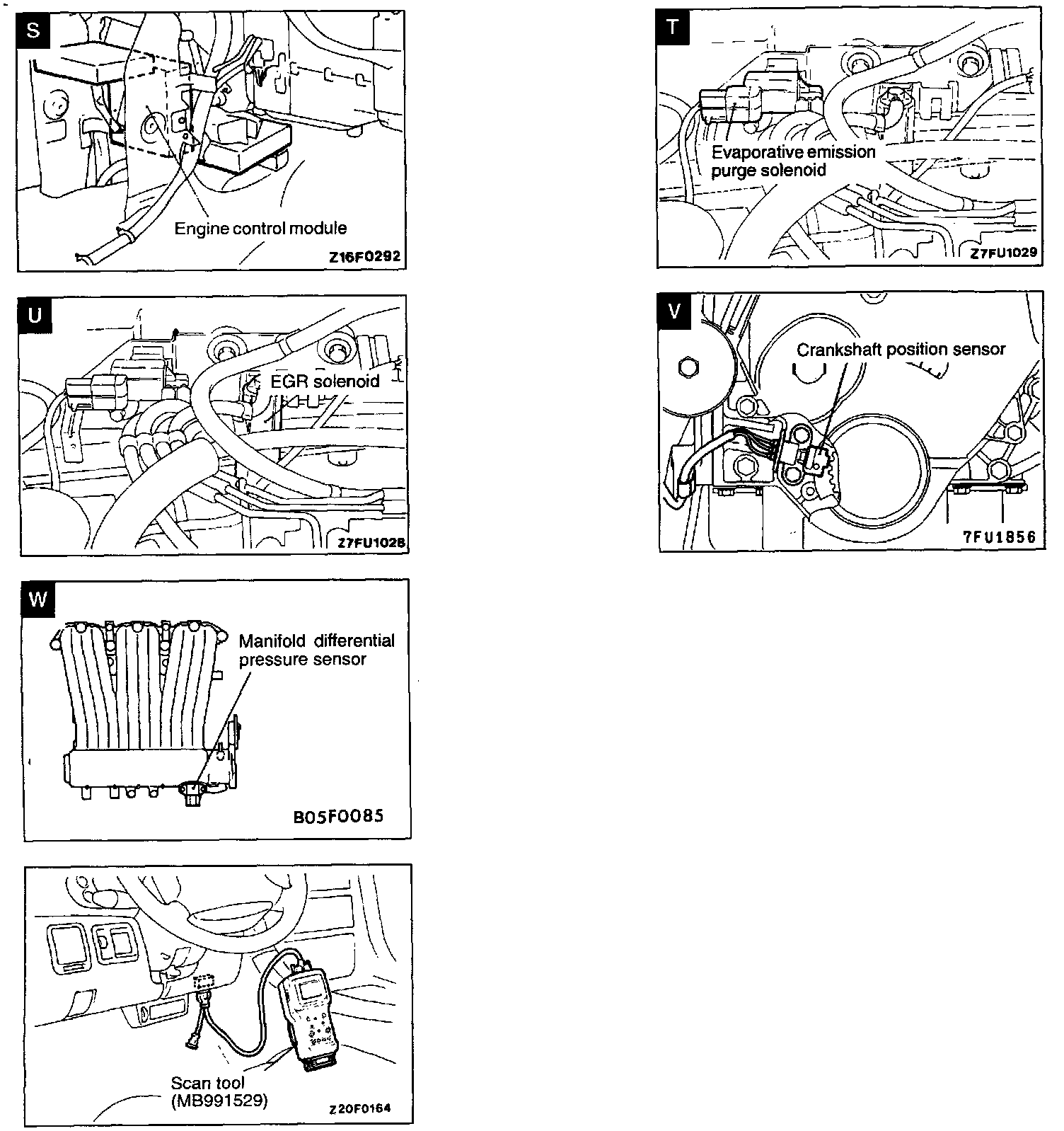

Locations S through V
