Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-9A O2 Sensor Signal Above Center (Rich)

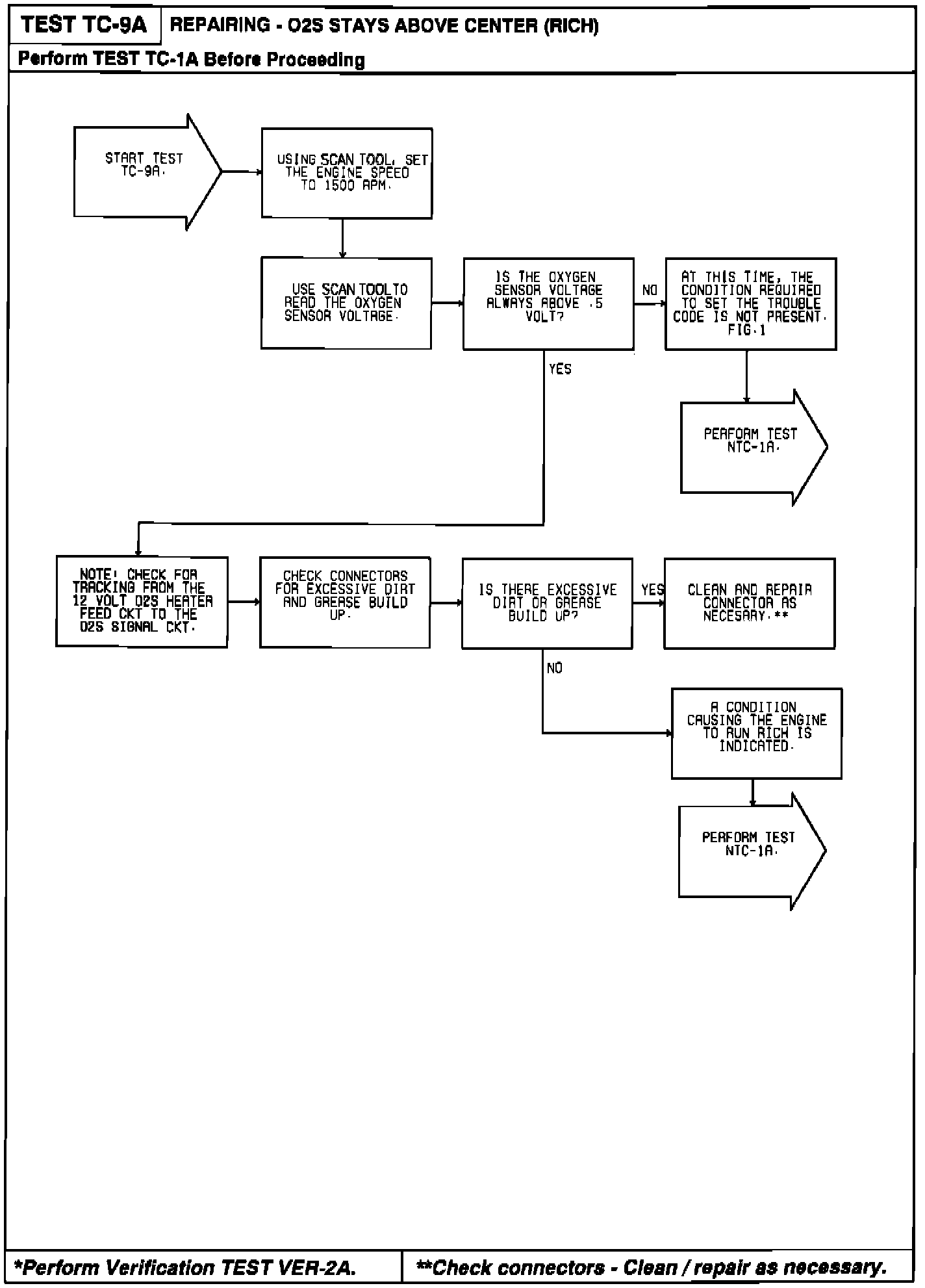

TC-9A O2 Sensor Signal Above Center (Rich)

Part 1 Of 2:



Part 1 Of 2:
