TC-16A Idle Air Control Motor Circuits

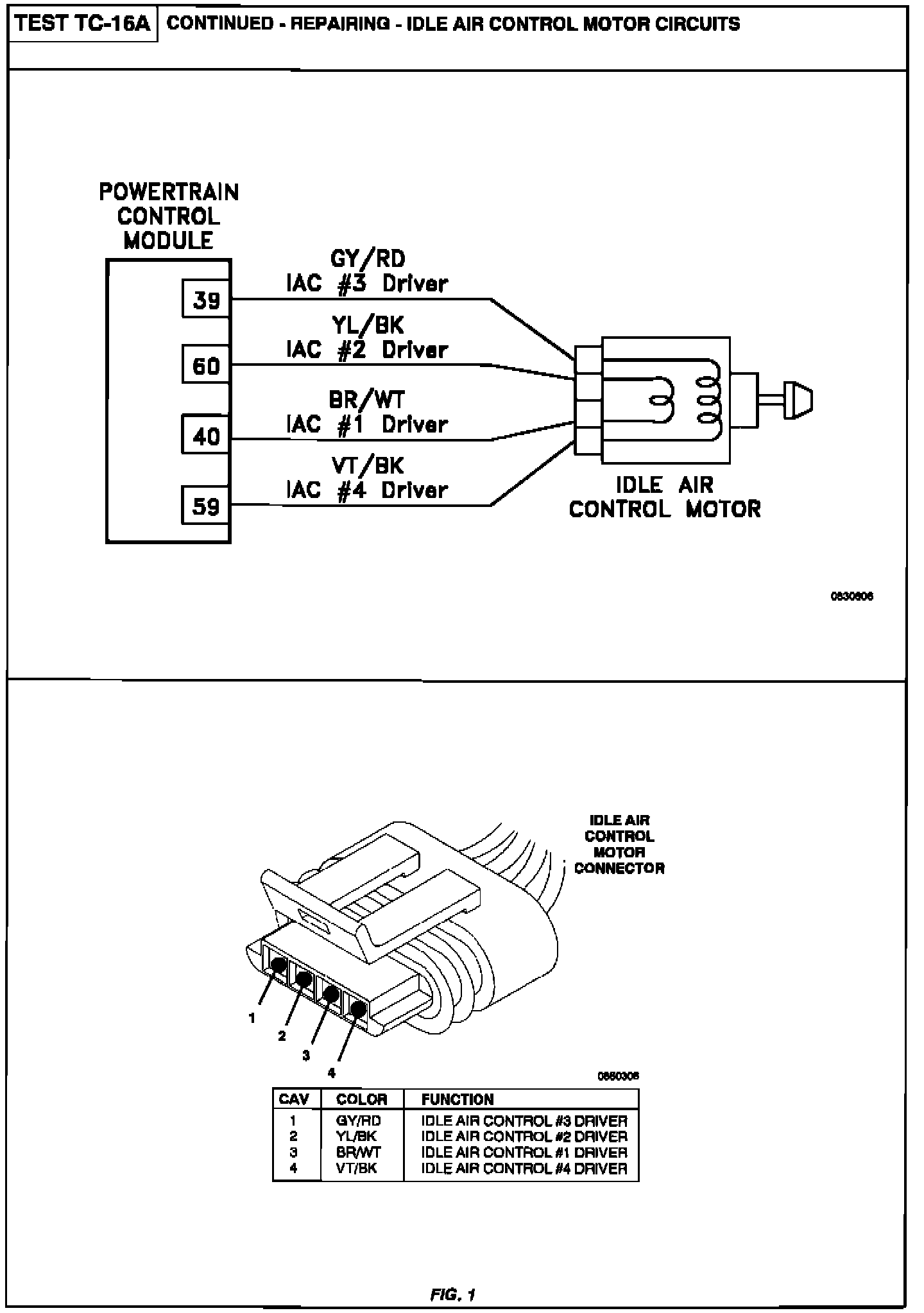

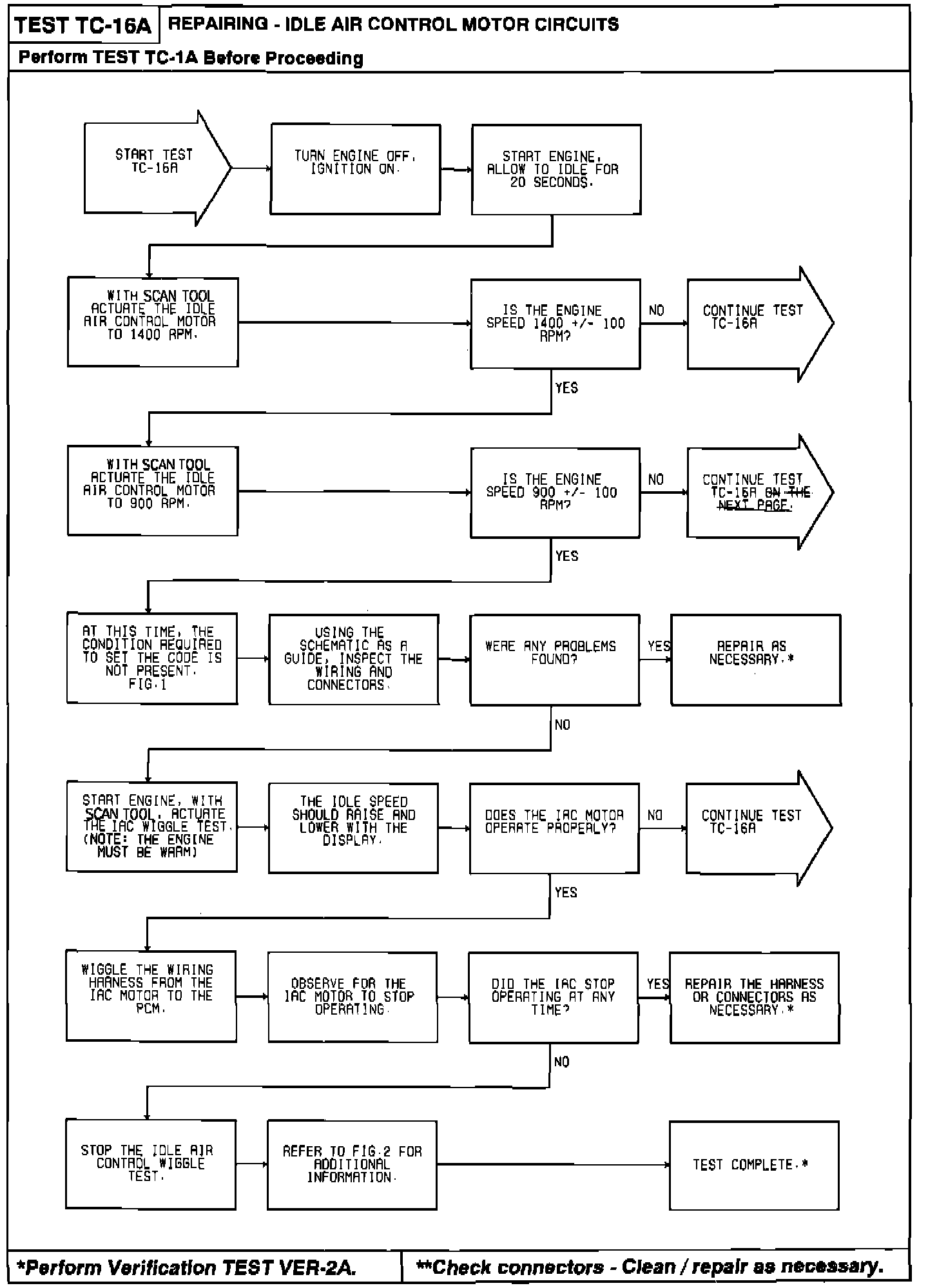

Part 1 Of 4:



Part 1 Of 4:

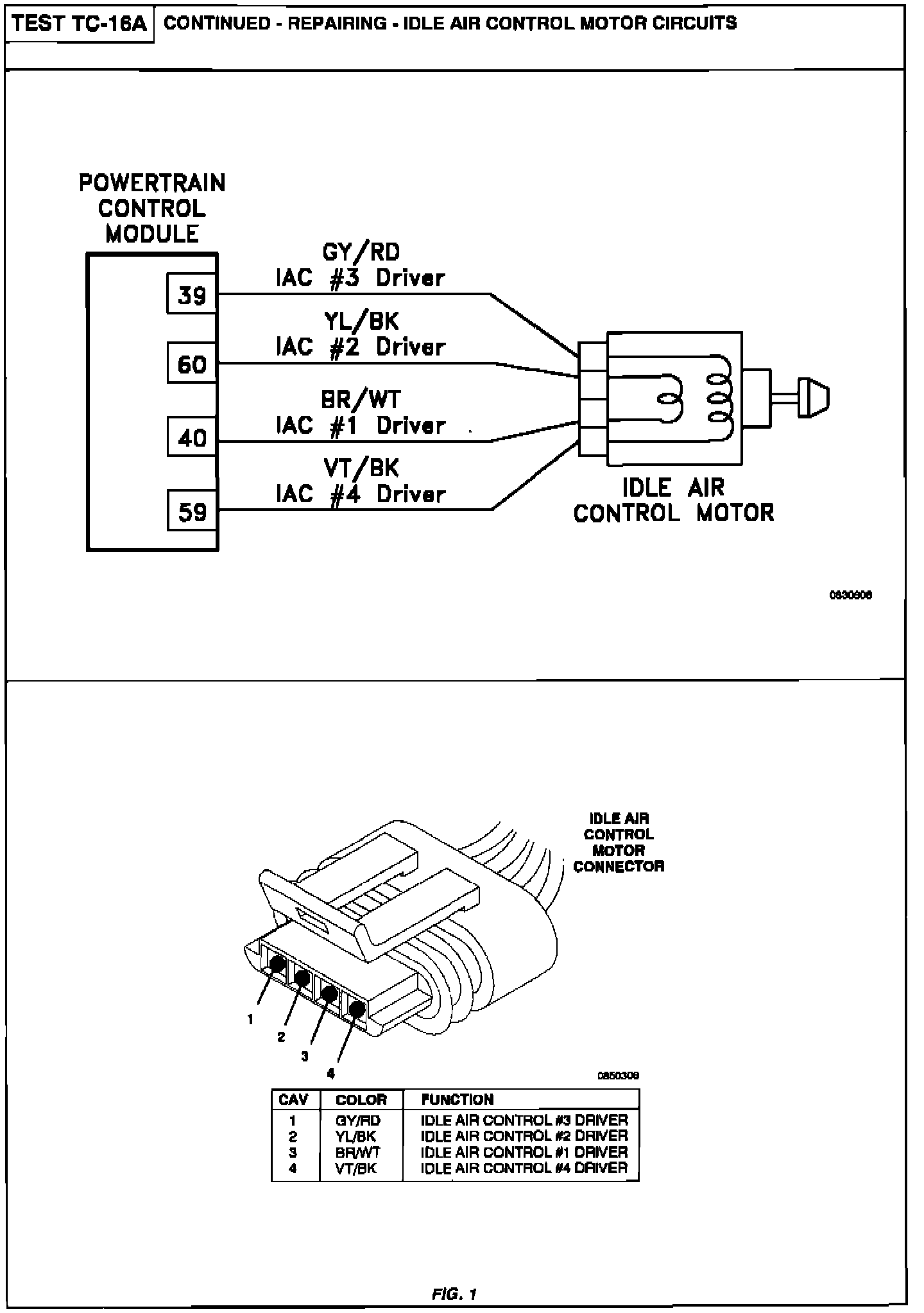

Part 2 Of 4:



Part 2 Of 4:

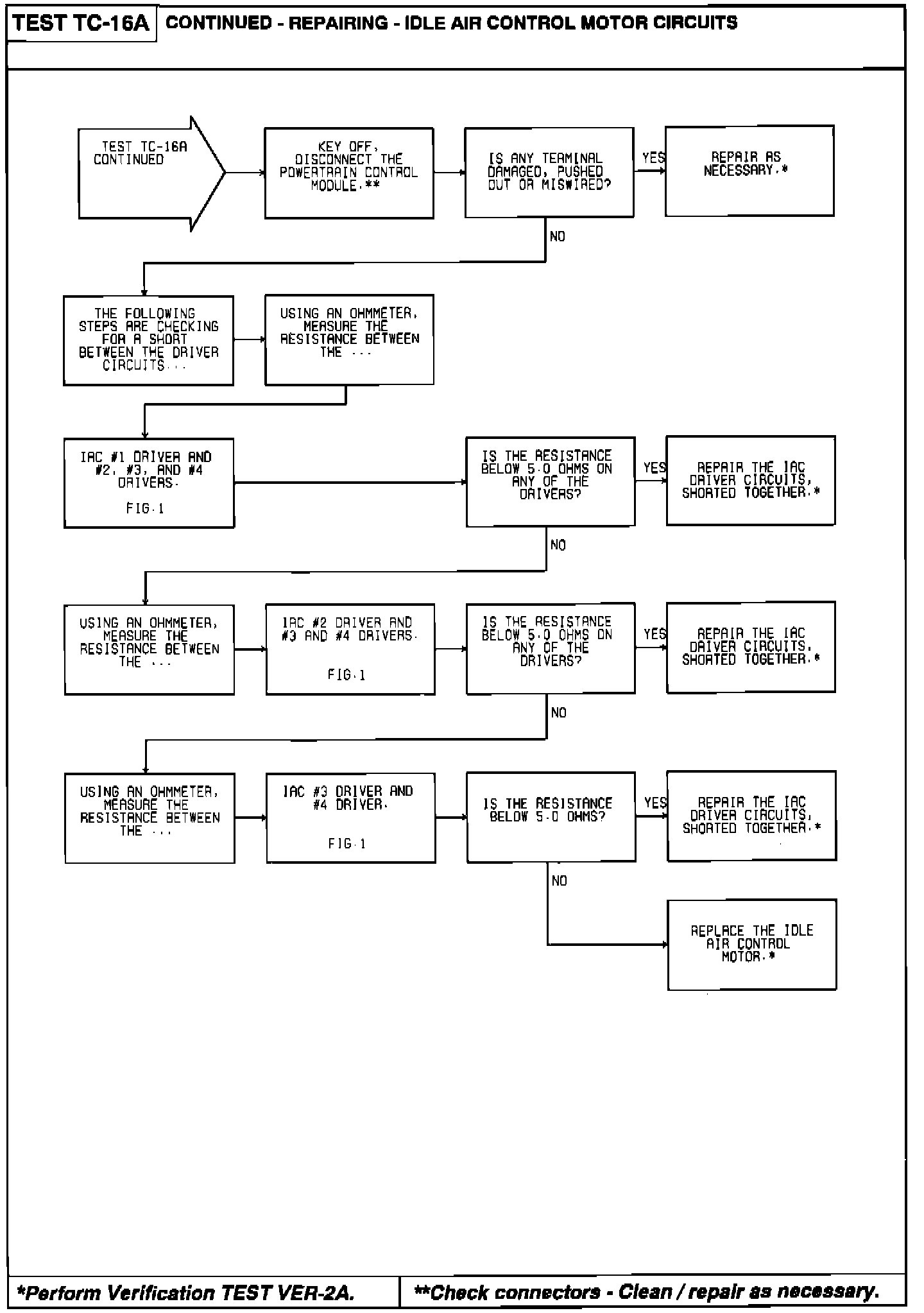

Part 3 Of 4:



Part 3 Of 4:

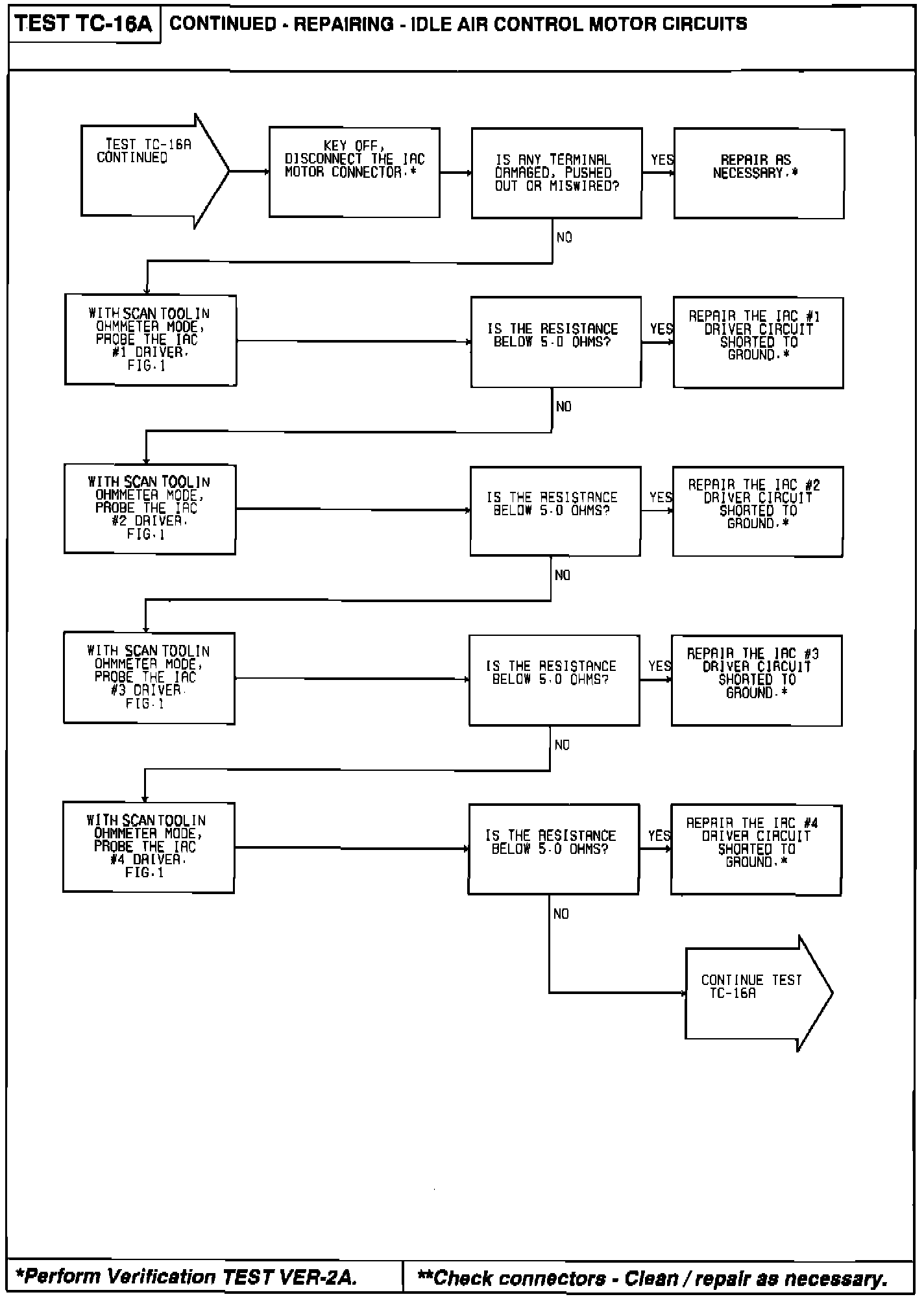

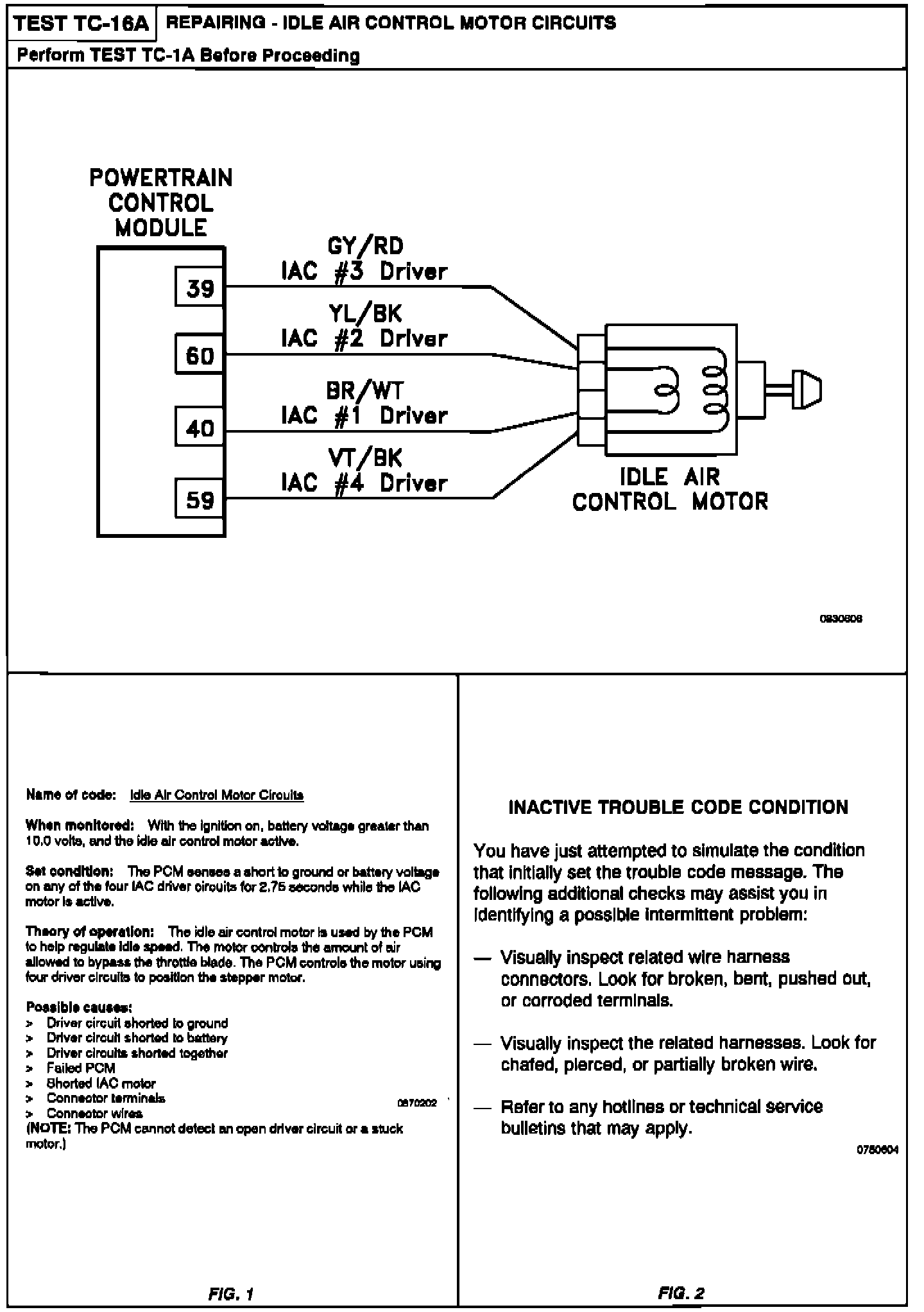

Part 4 Of 4:



Part 4 Of 4:
