Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Charging System (CH) Tests

Charging System (CH) Tests

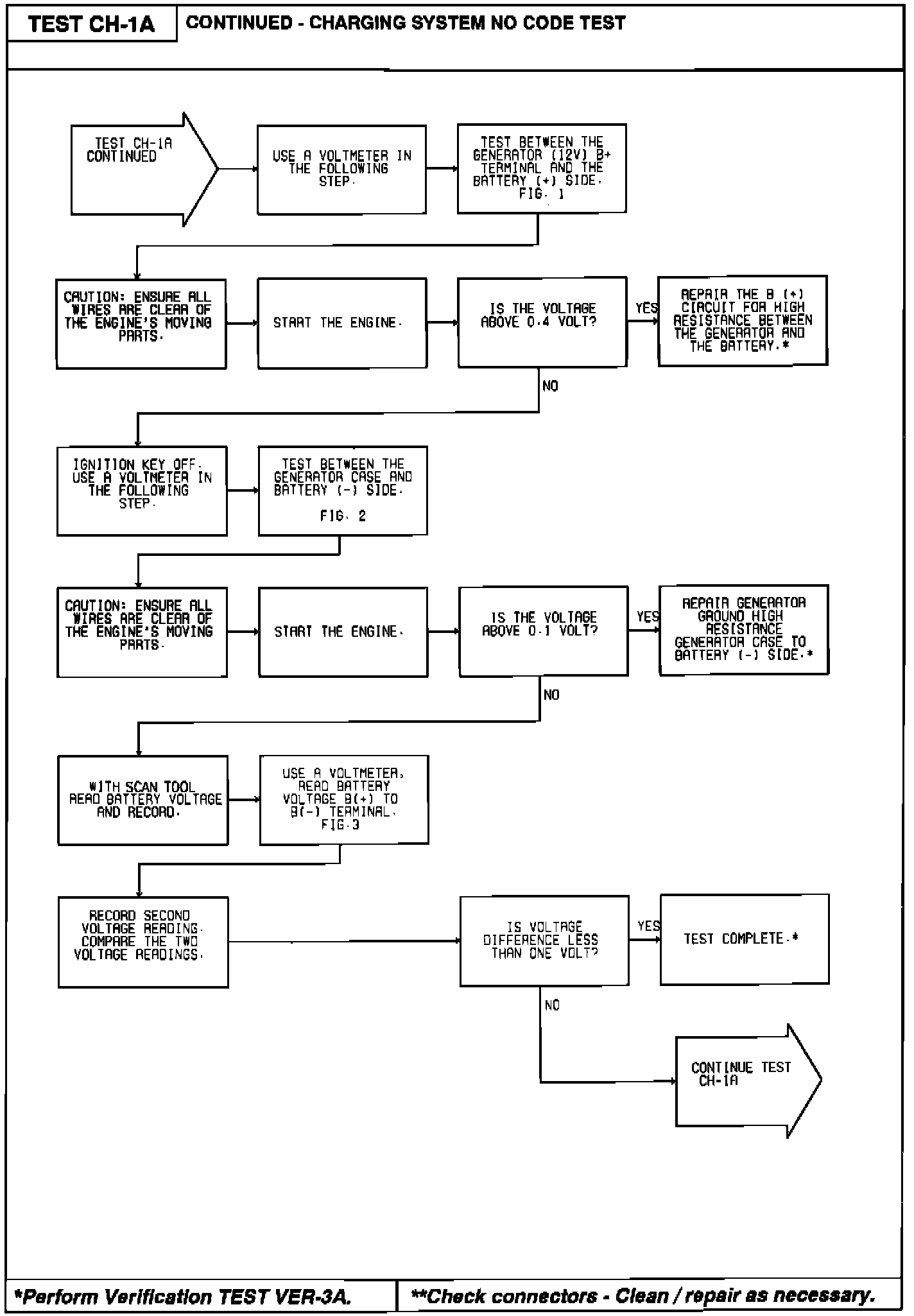

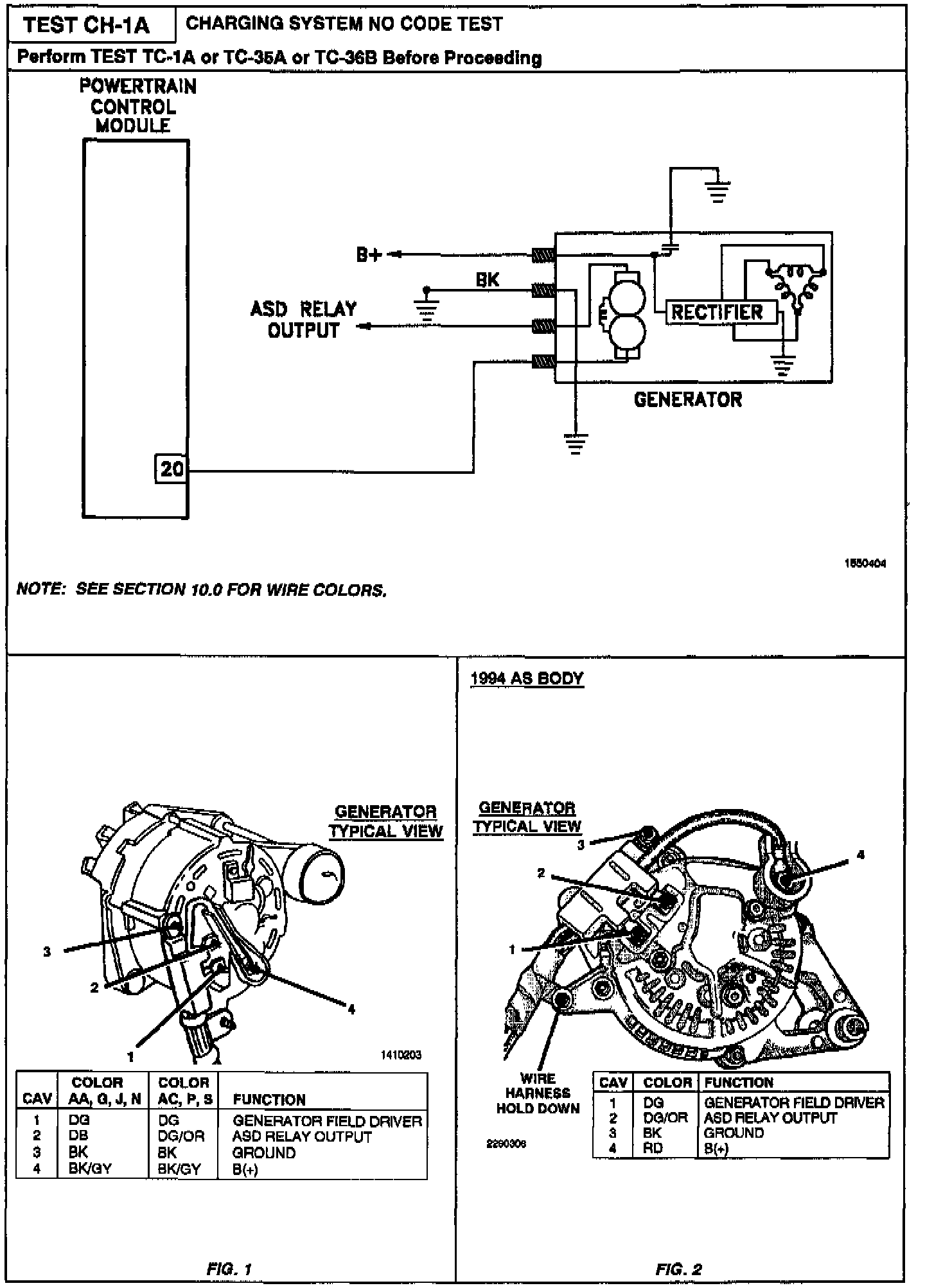

Part 1 Of 3:

Part 1 Of 3:

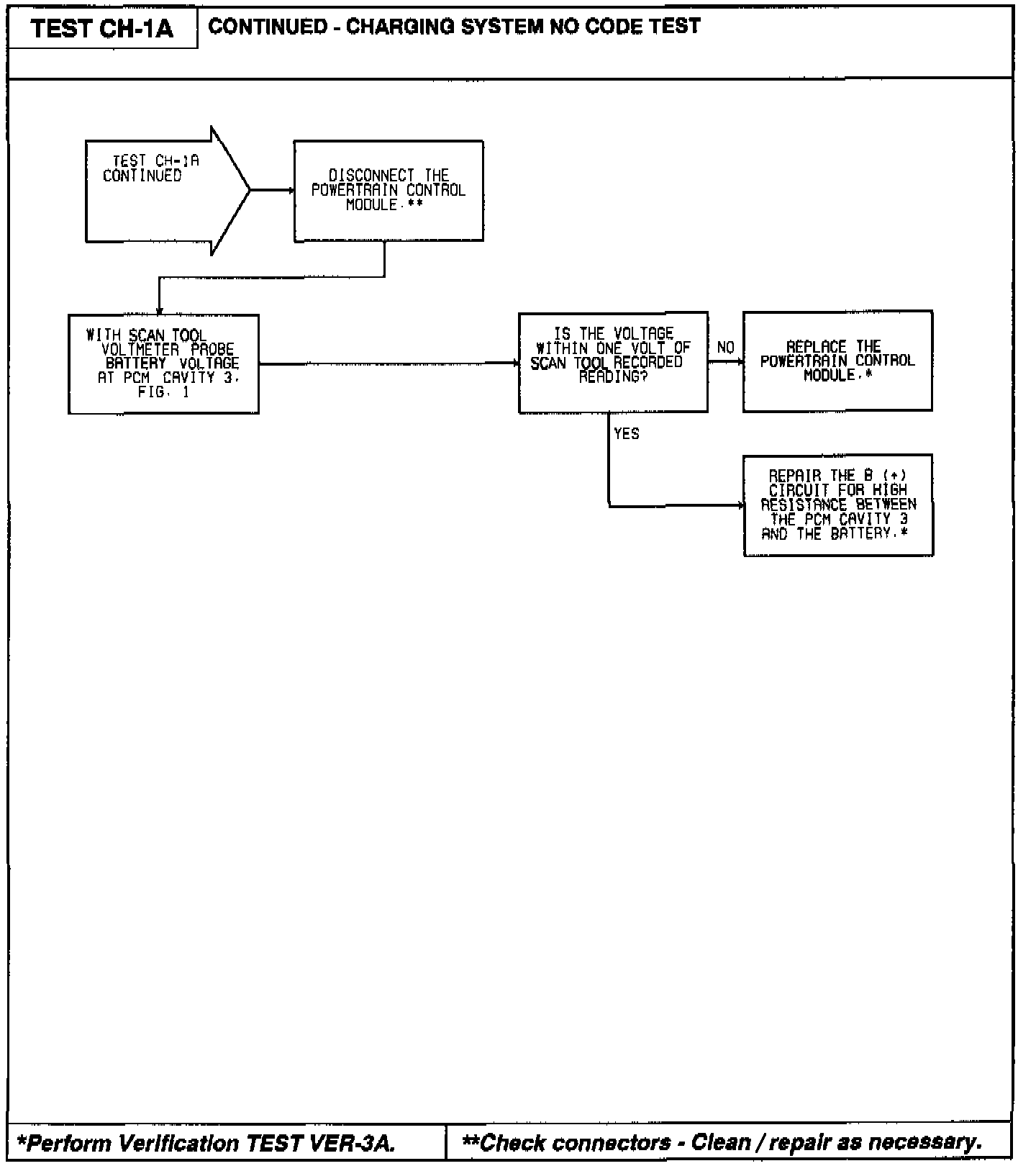

Part 2 Of 3:

Part 2 Of 3:

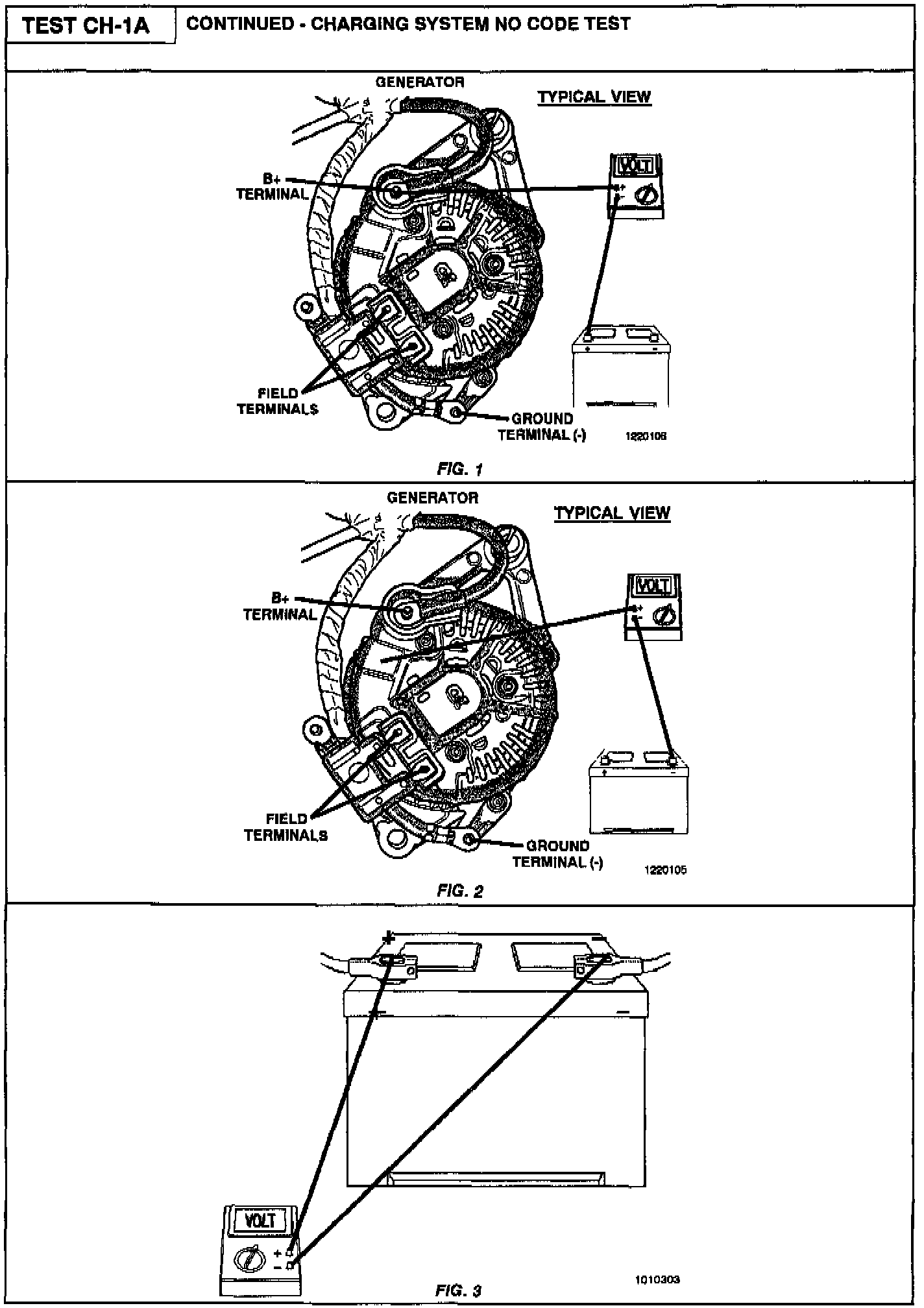

Part 3 Of 3:

Part 3 Of 3:
