Fuel Injector: Testing and Inspection



PART 1

Diagnostic Chart

Test NS-5A Repairing "Injector #1 Control Circuit" Fault:

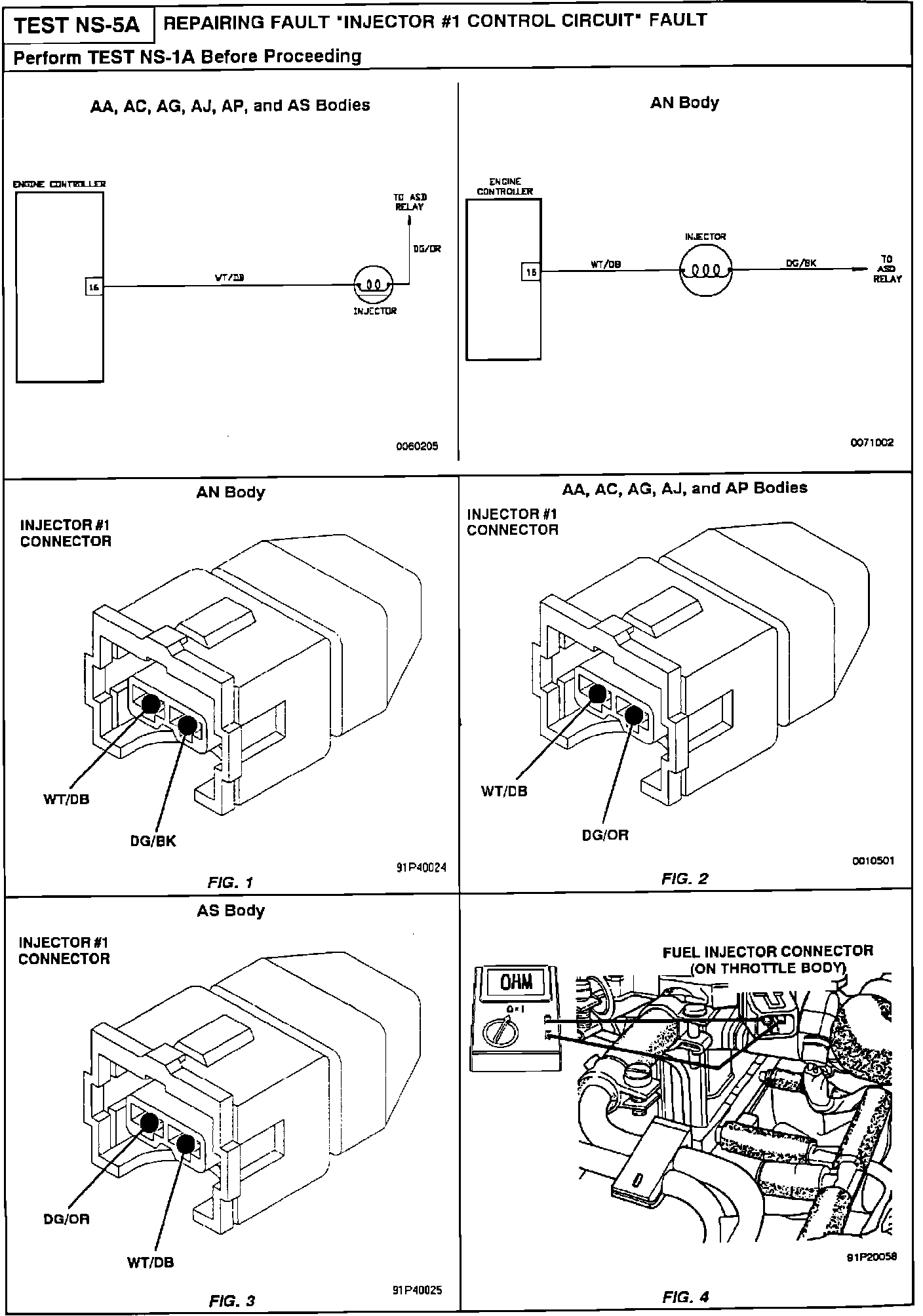

Figures 1, 2, 3, and 4

Test NS-5A Repairing "Injector #1 Control Circuit" Fault:








PART 2

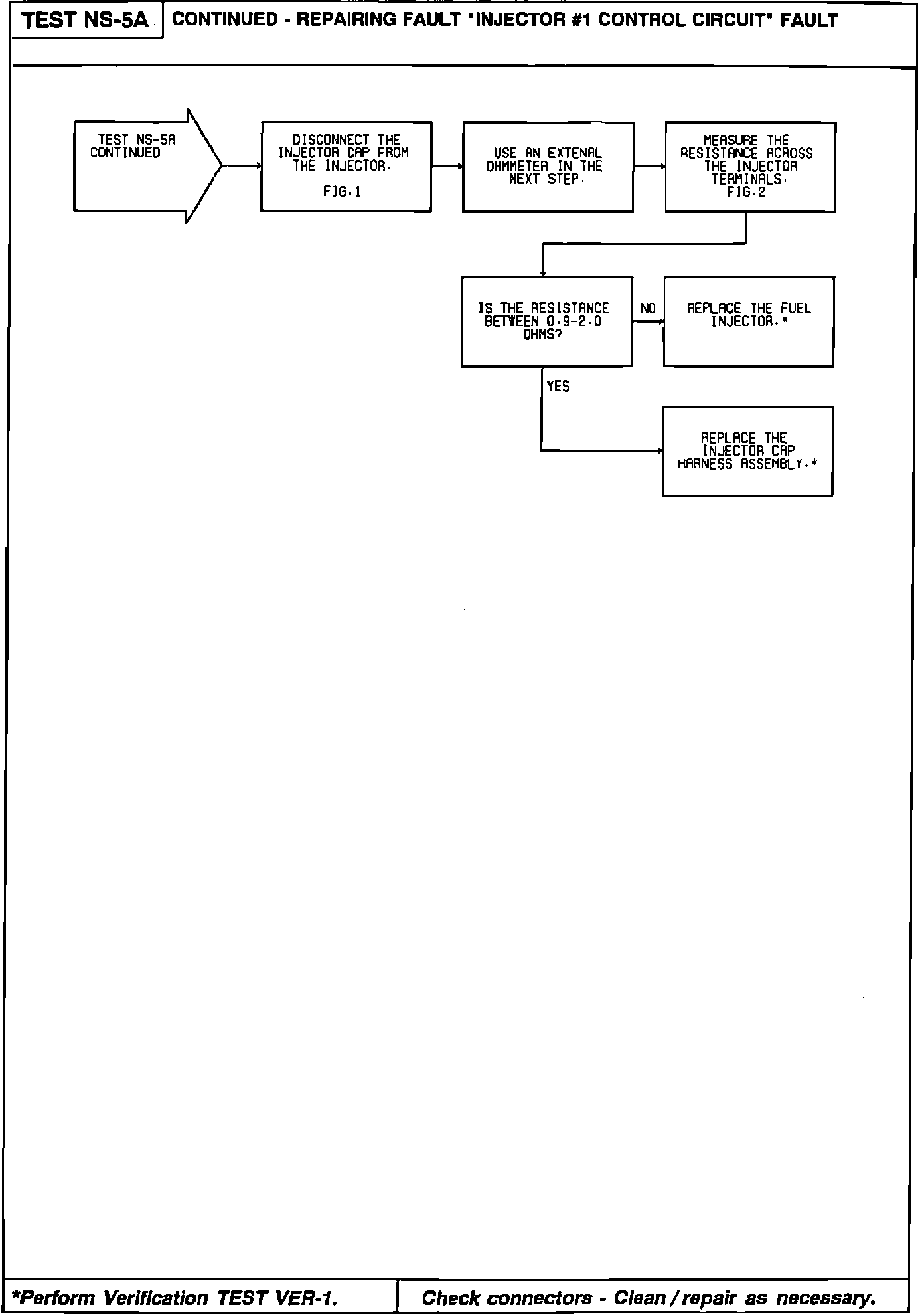

Diagnostic Chart

Test NS-5A Repairing "Injector #1 Control Circuit" Fault:

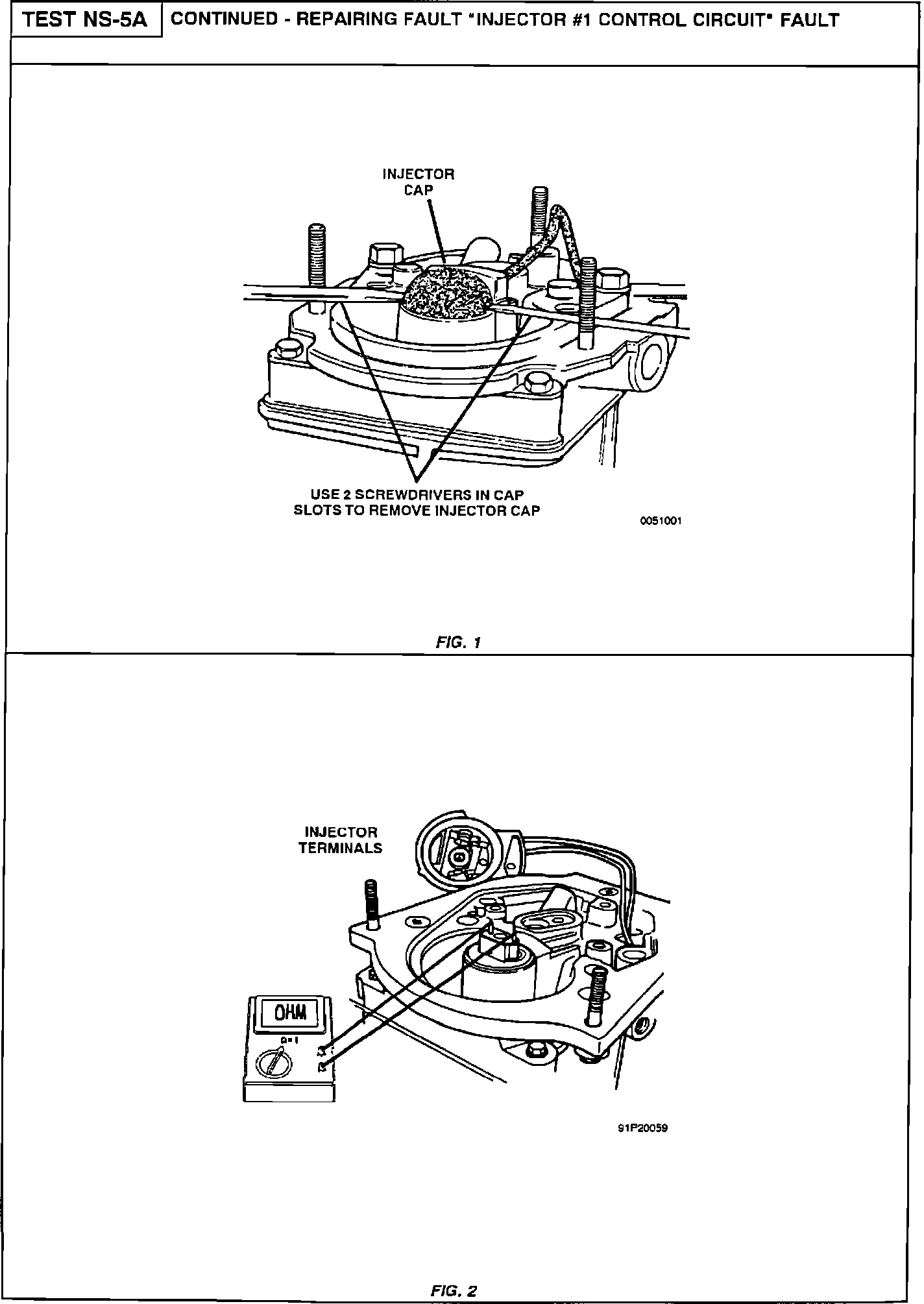

Figures 1 and 2

Test NS-5A Repairing "Injector #1 Control Circuit" Fault:
