Home >> Dodge >> 1988 >> Shadow L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

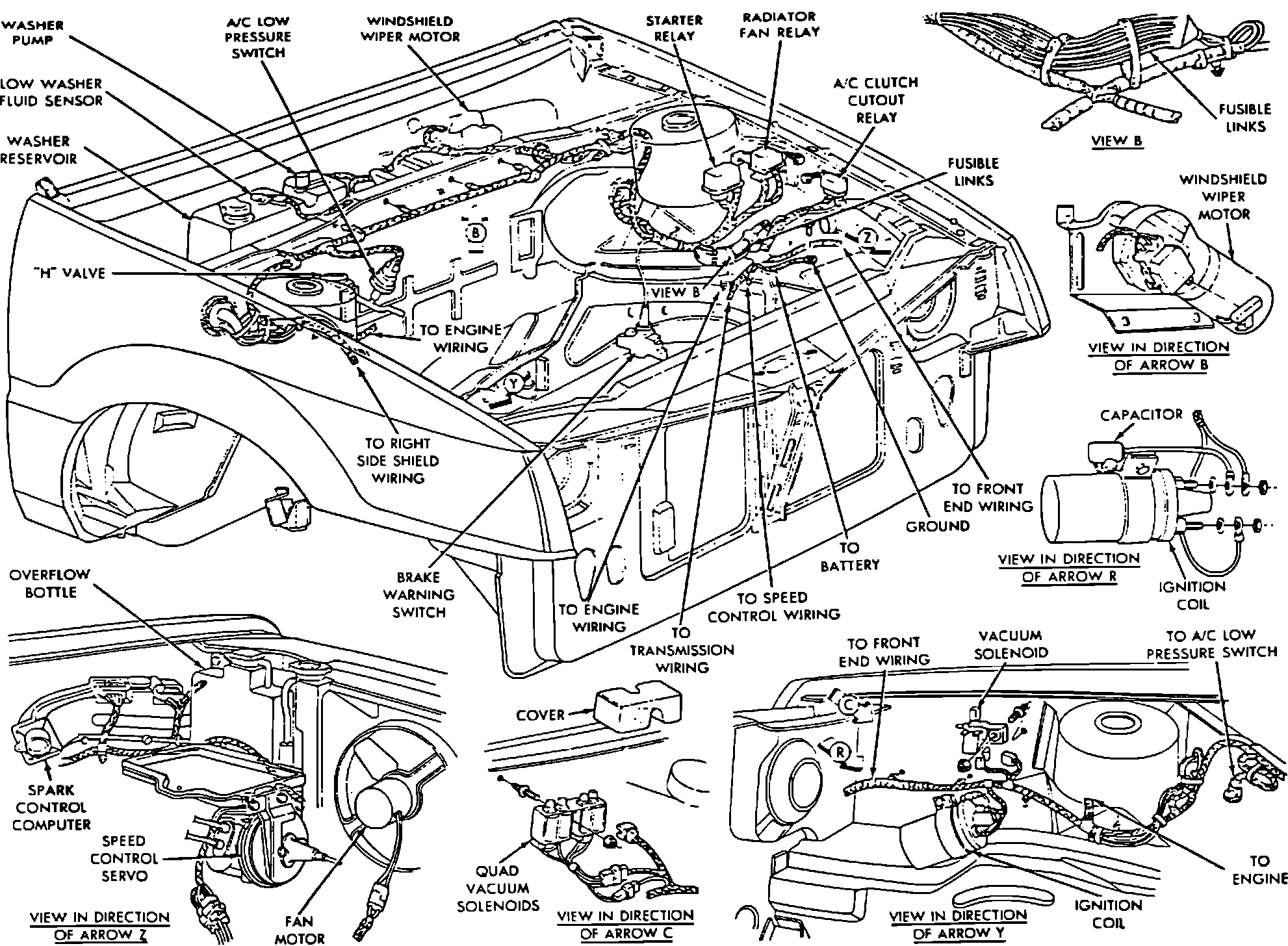

Front End & Engine Compartment Components:
