Lancer L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

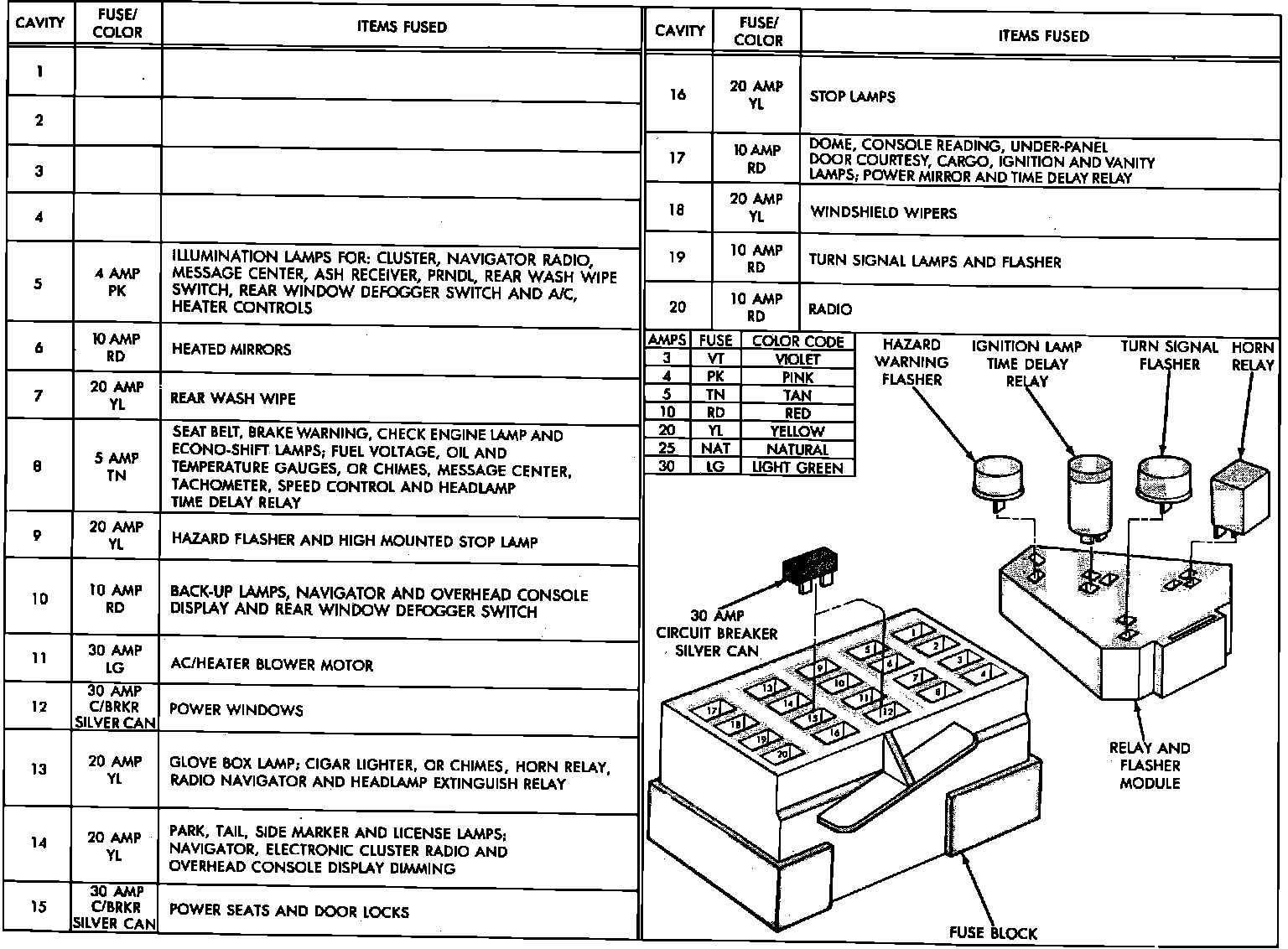

Fuse Panel Details:
