Home >> Dodge >> 1988 >> 600 L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

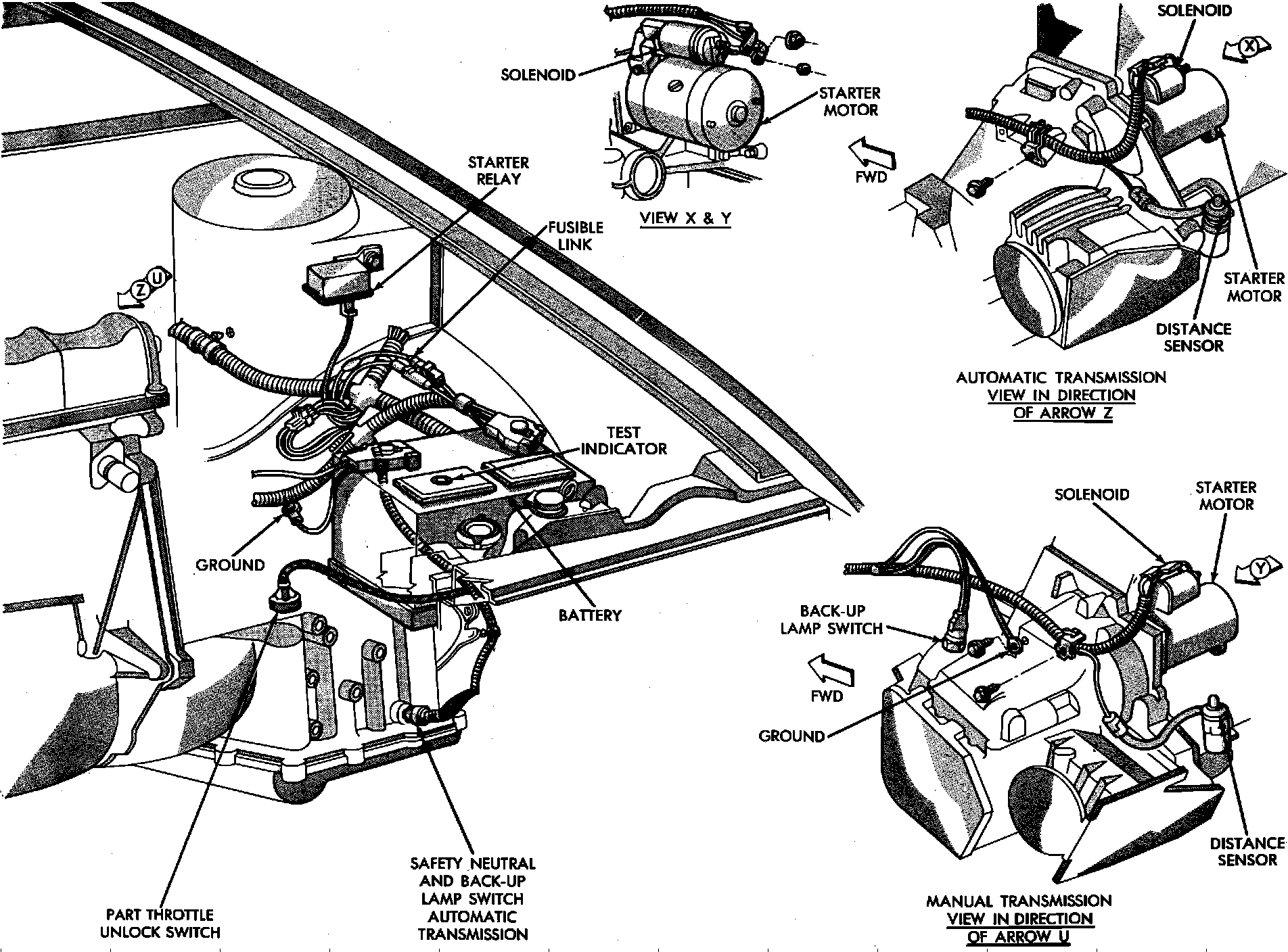

Engine Compartment Starter & Transmission Switch Components:




On Top Of Transaxle
