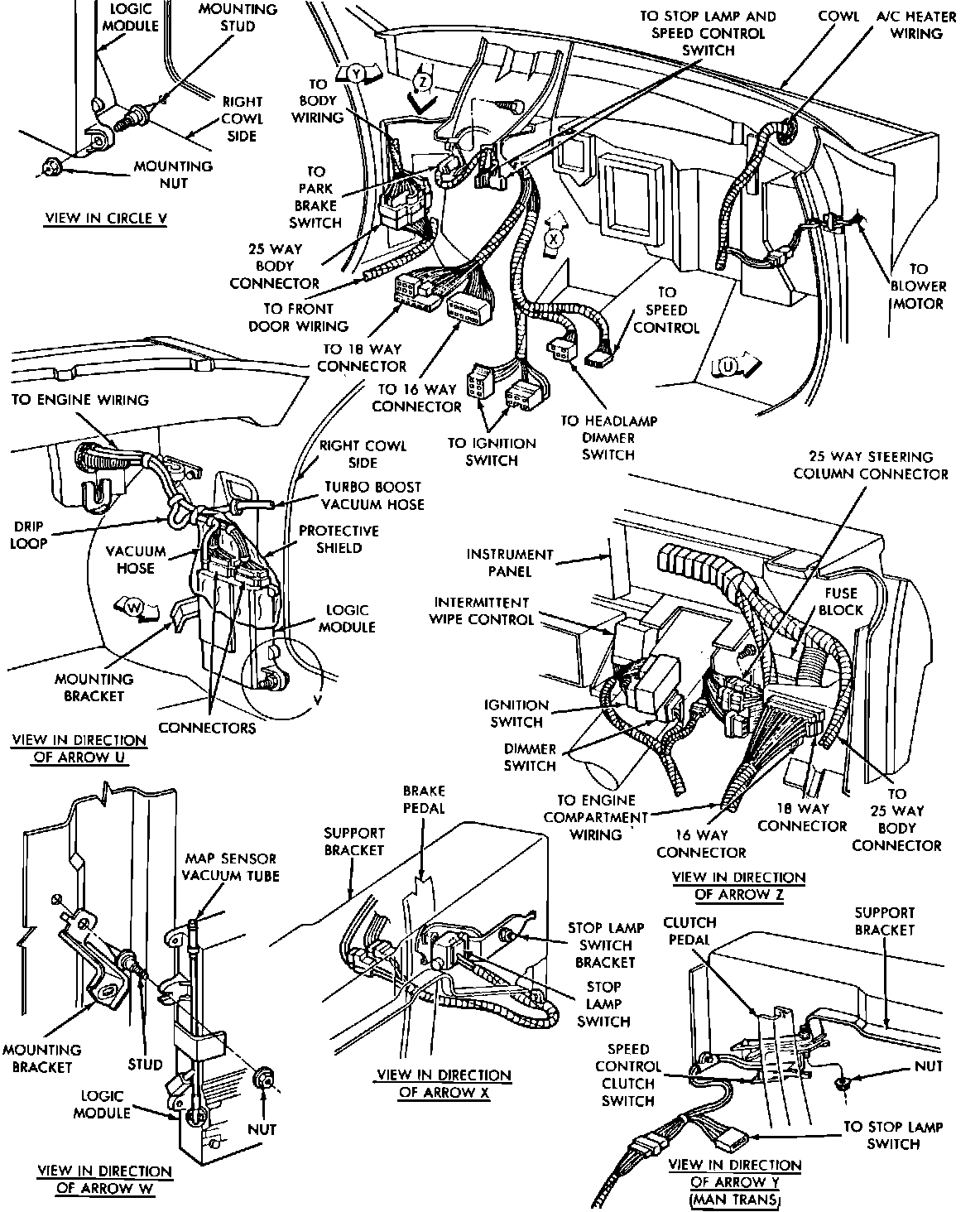

Engine Control Module: Locations

Cowl & passenger compartment electrical components.:




On RH Side Cowl

Applicable to: 1987 Shadow & Sundance
