Accessory Delay Module

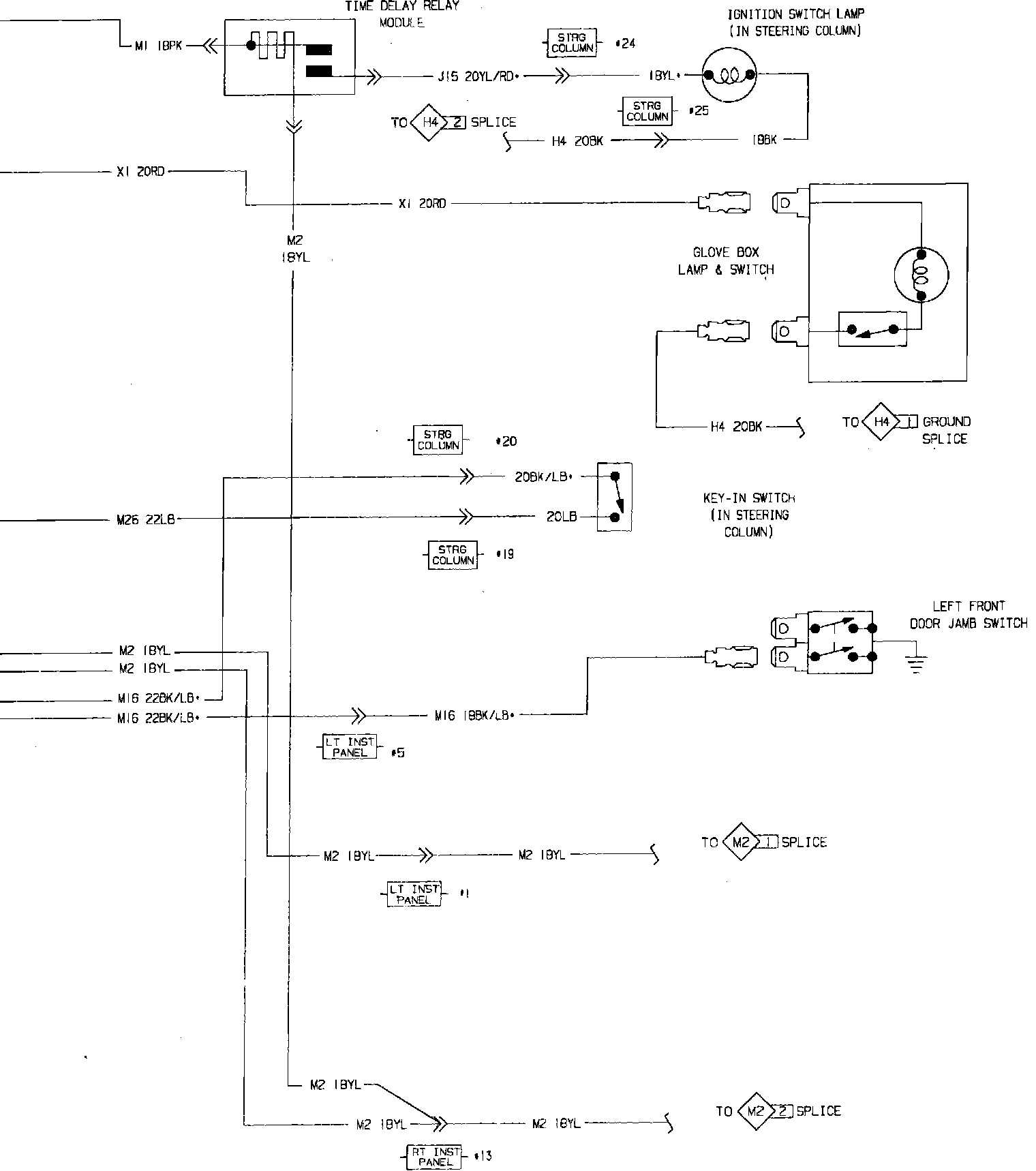

Fig. 14 Courtesy Lamps & Seatbelt Warning System Wiring Circuit (Part 1 of 2):

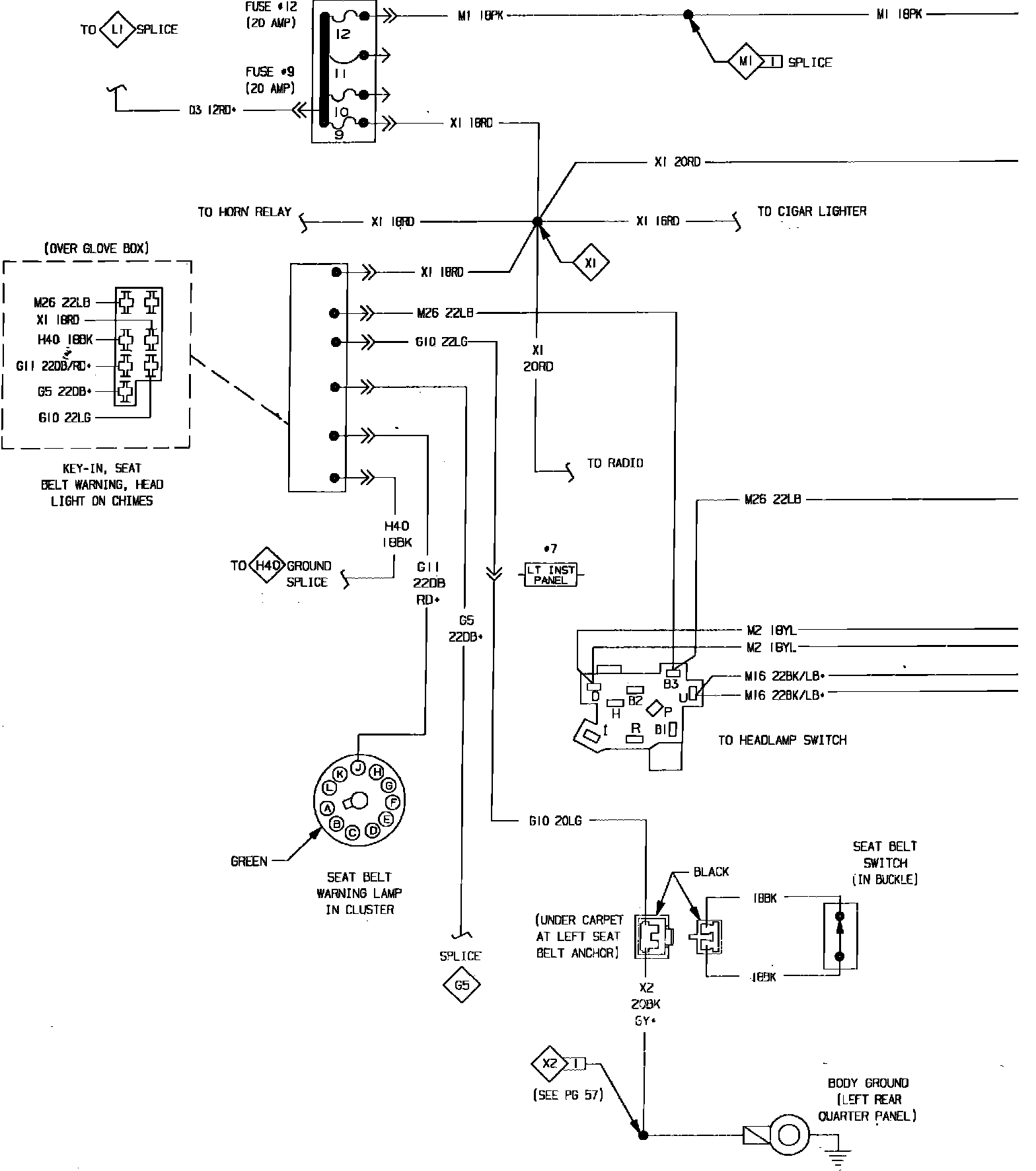

Fig. 14 Courtesy Lamps & Seatbelt Warning System Wiring Circuit (Part 2 of 2):
