Home >> Dodge >> 1987 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

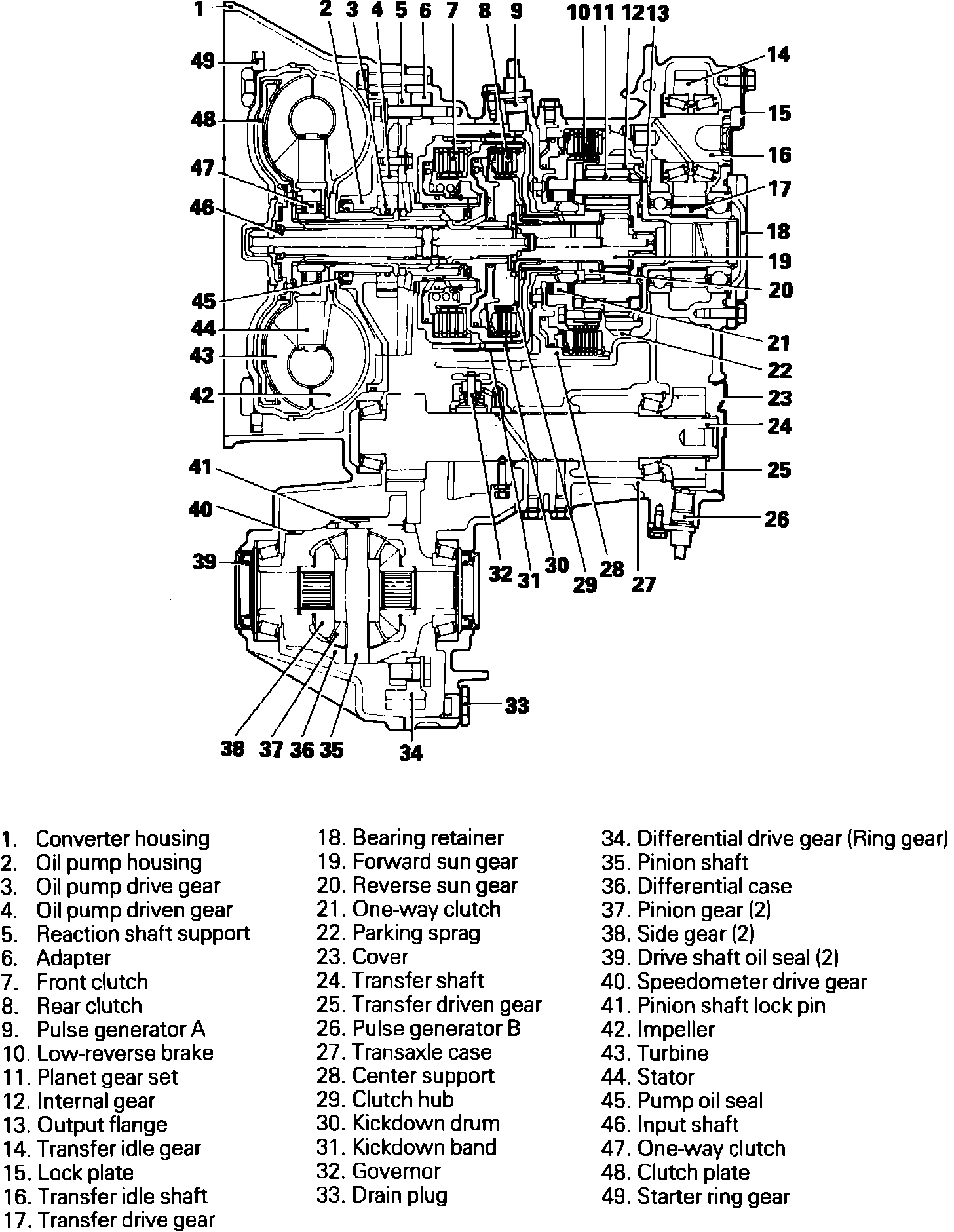

Fig. 29 Exploded view of KM 171 & 172 automatic transaxle:
