Home >> Dodge >> 1987 >> Charger L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Diagnostic Test Procedure - Page Revisions >> Test 2-Step B-Checking O2 Solenoid Control Circuit

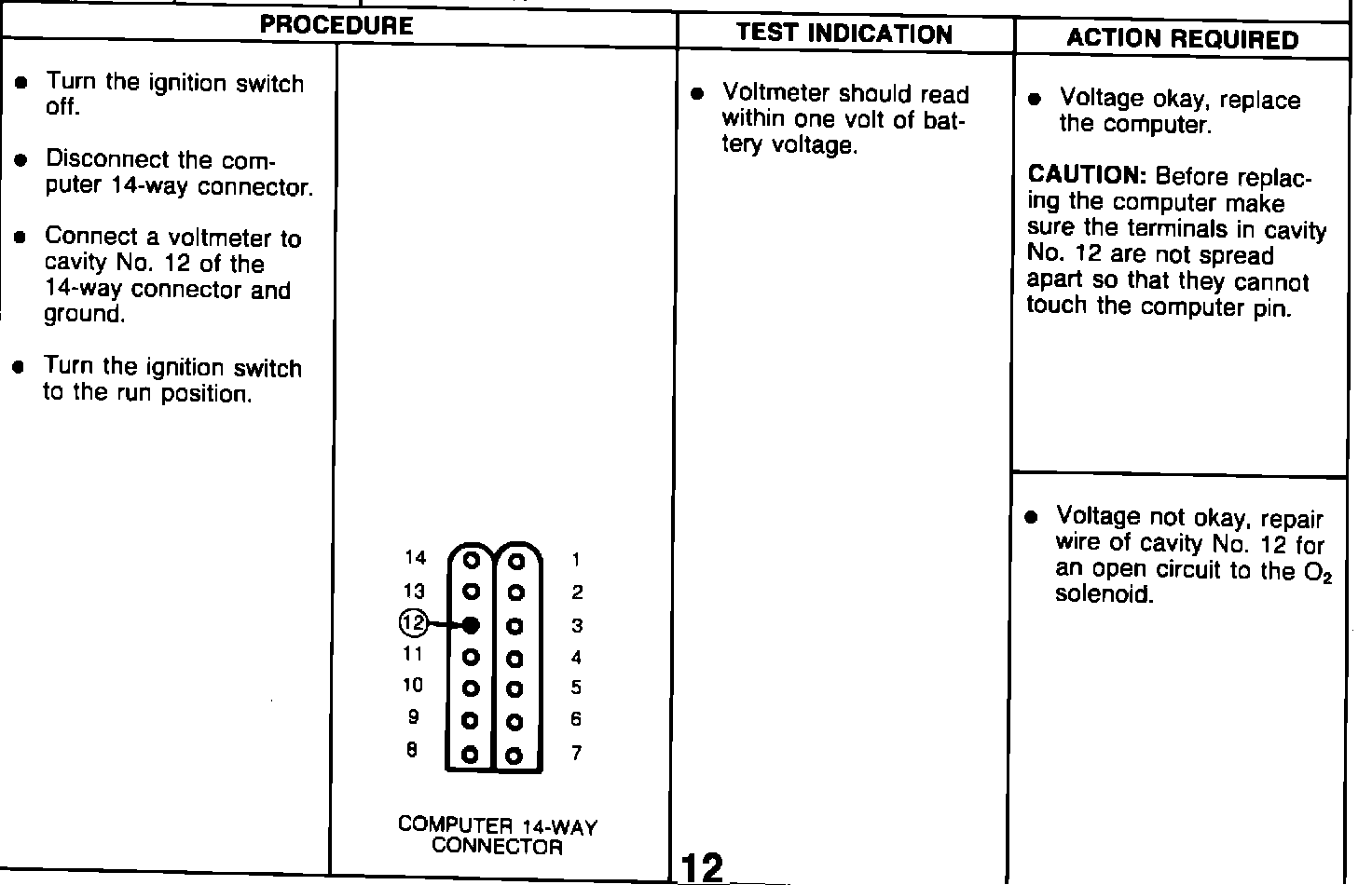

Test 2-Step B-Checking O2 Solenoid Control Circuit
