Steering Column

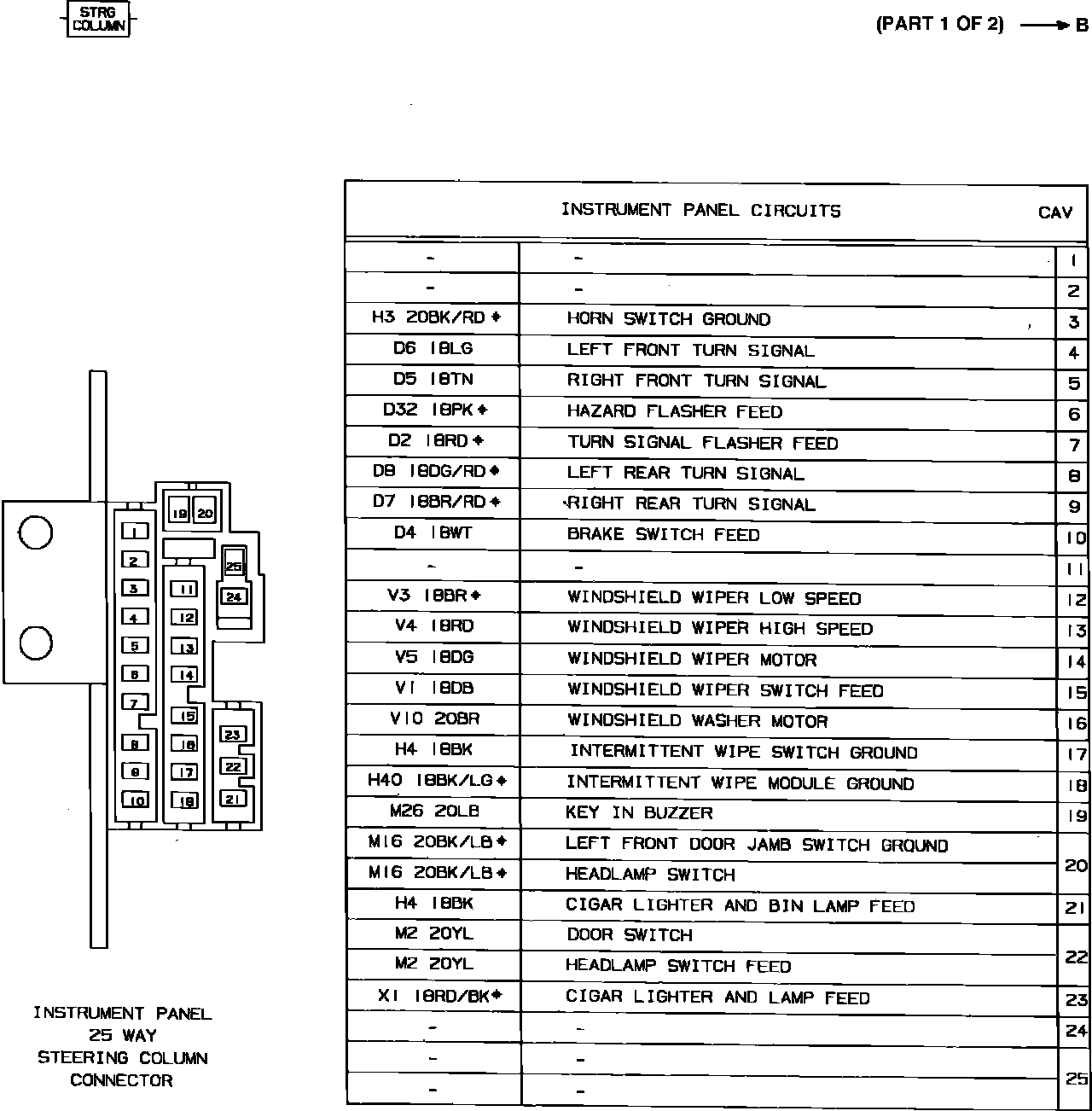

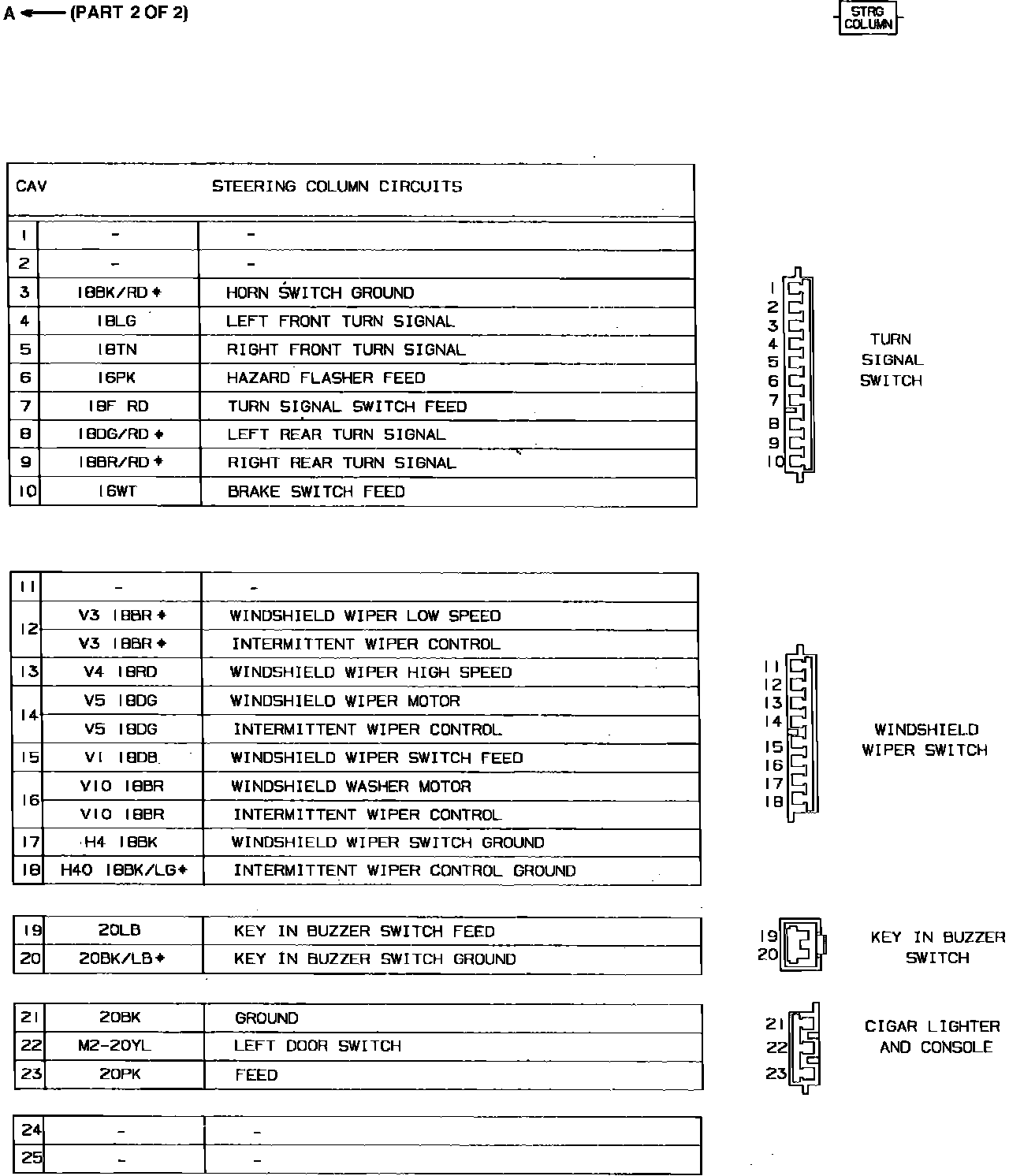

Fig. 6 Instrument Panel To Steering Column Connector:



Fig. 6 Instrument Panel To Steering Column Connector:
