Home >> Dodge >> 1987 >> 600 L4-135 2.2L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Electrical Switch Connector

Electrical Switch Connector

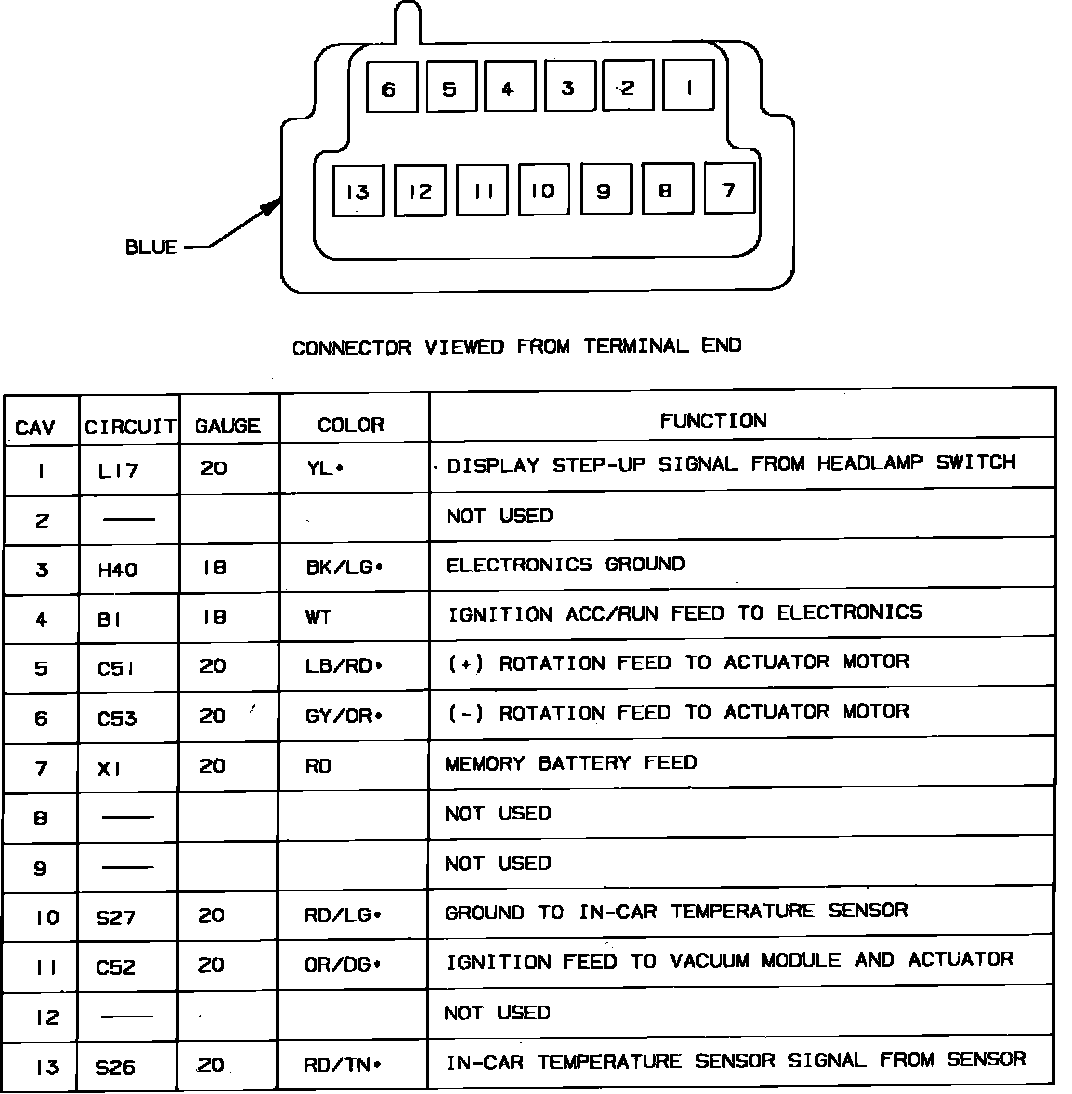

Fig. 7 Automatic Temperature Control Switch Connectors (Part 1 Of 2):
