Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

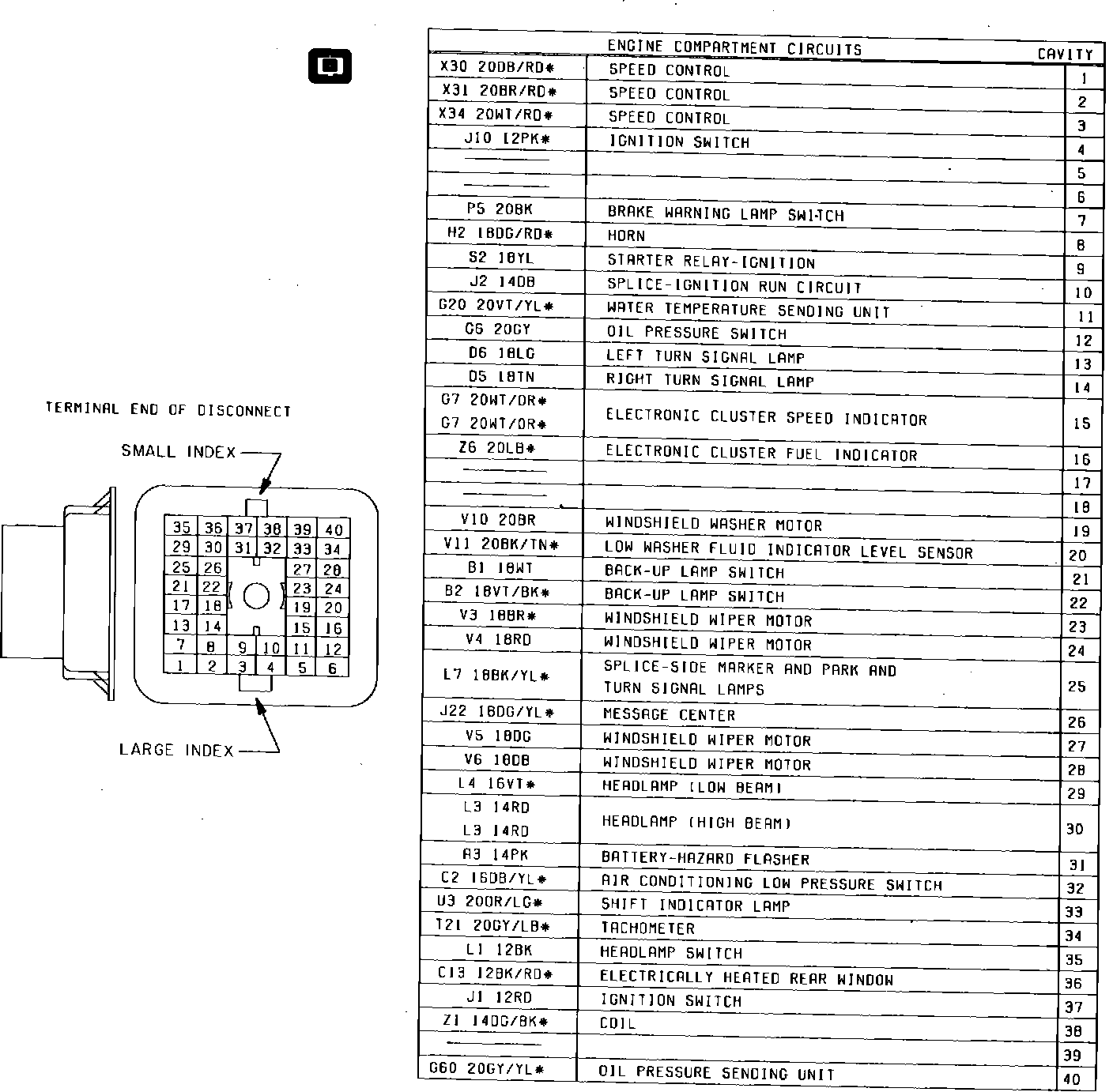

Fig. 4 Bulkhead Connector (40 Way, Engine Side). 1985:
