Home >> Dodge >> 1985 >> Diplomat V8-318 5.2L VIN P 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Component Locations >> Coolant Temperature Switch

Coolant Temperature Switch

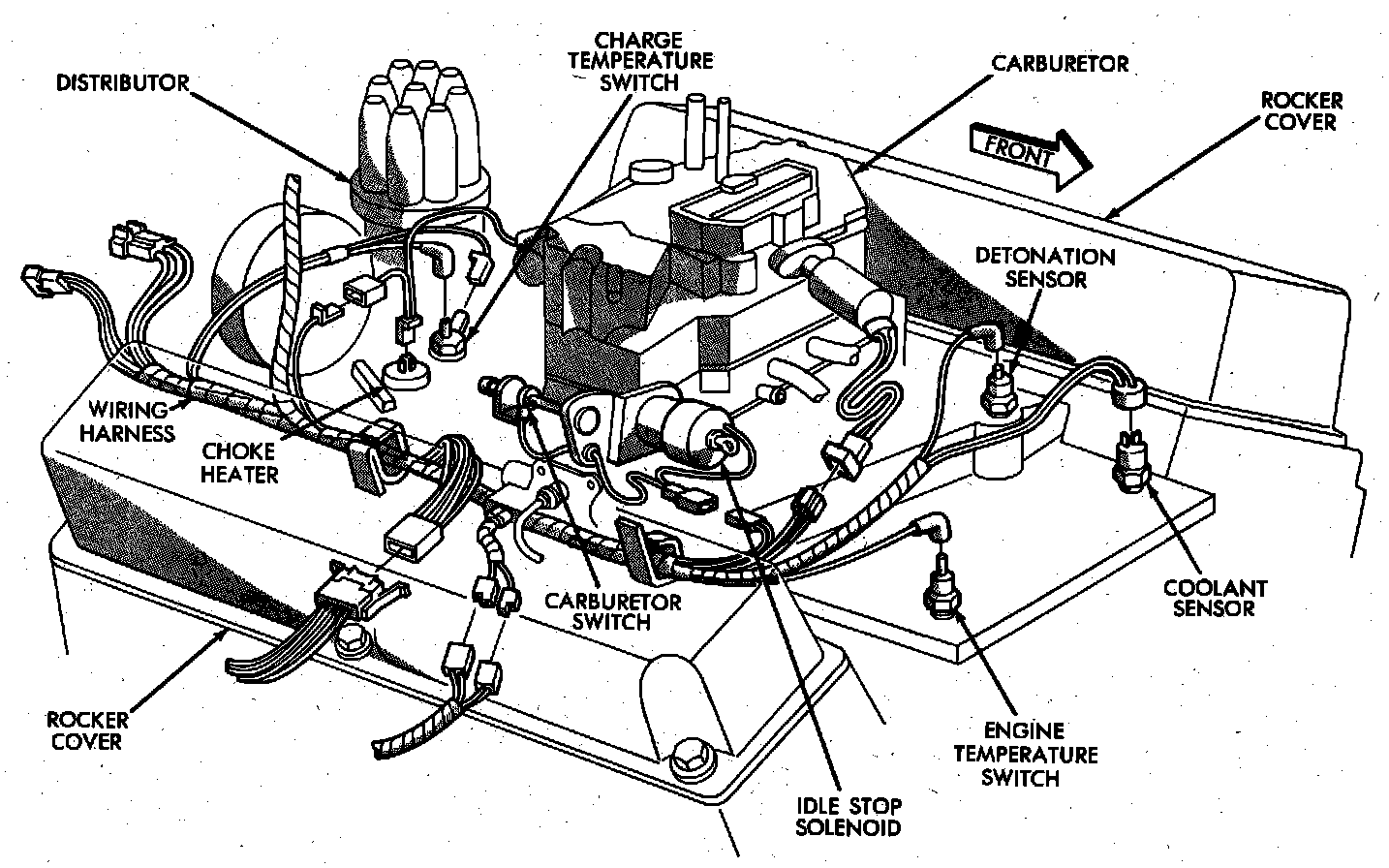

Engine-Mounted Sensors & Switches.:




Upper RH Side Of Engine
