Home >> Dodge >> 1985 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

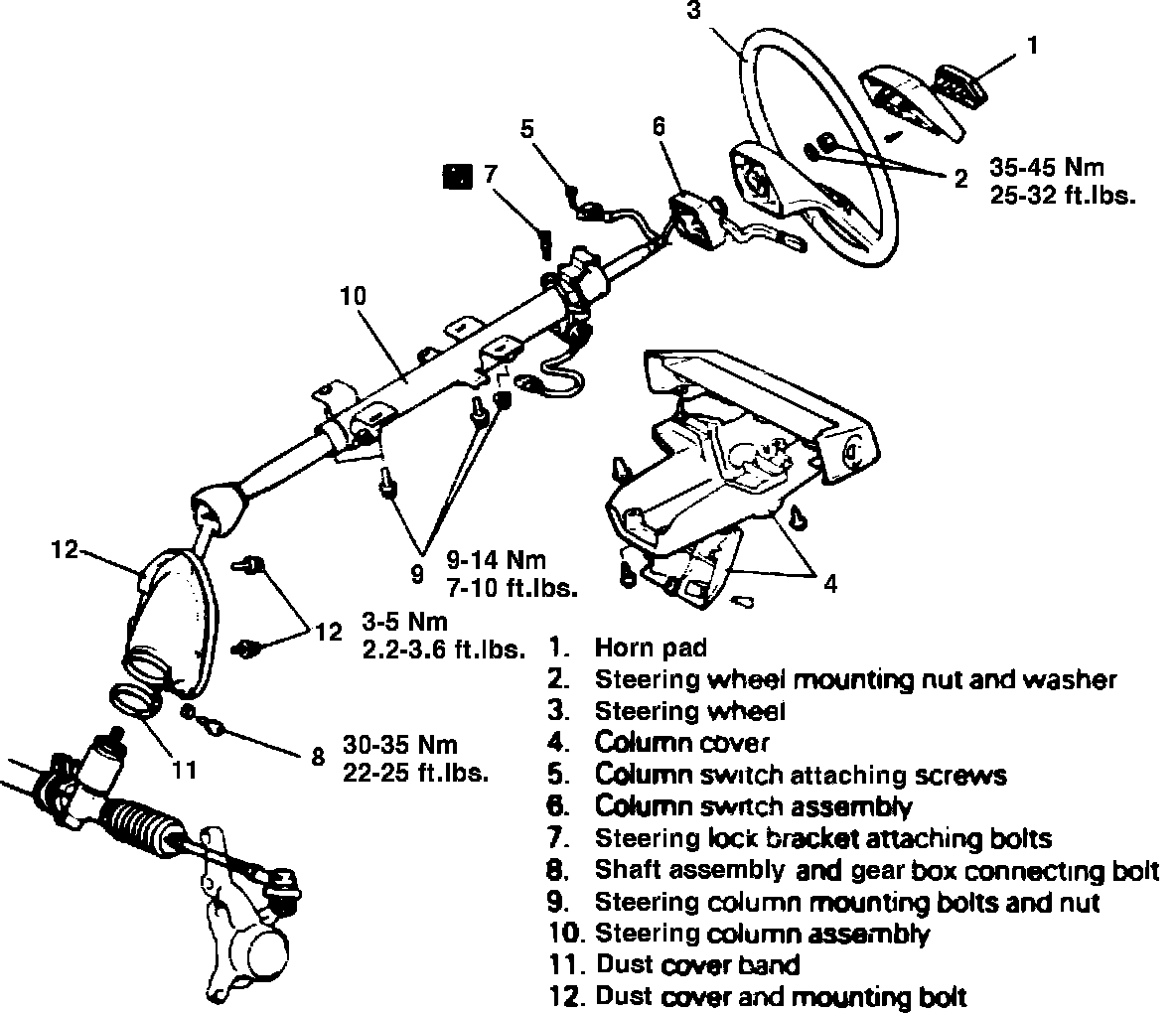

Fig. 2 Exploded view of steering column assembly. 1985-86 Colt:
