Engine Coolant Temperature Sensor - Removal

6.7L DIESEL






WARNING: Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.

1. Partially drain the cooling system Service and Repair.
2. Remove the engine trim cover.

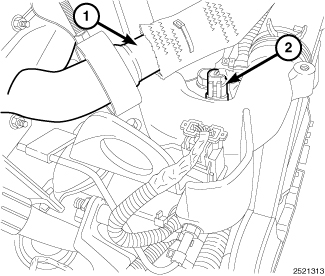

3. Remove the upper EGR tube (2).Exhaust Gas Recirculation (EGR) Tube - Removal
4. Remove heat shield.
5. Disconnect the electrical connector (2) from the ETC sensor (3).
6. Remove the ETC sensor from the cylinder head.
