Home >> Dodge or Ram Truck >> 2002 >> Durango 2WD V8-4.7L VIN N >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> System Schematic

System Schematic

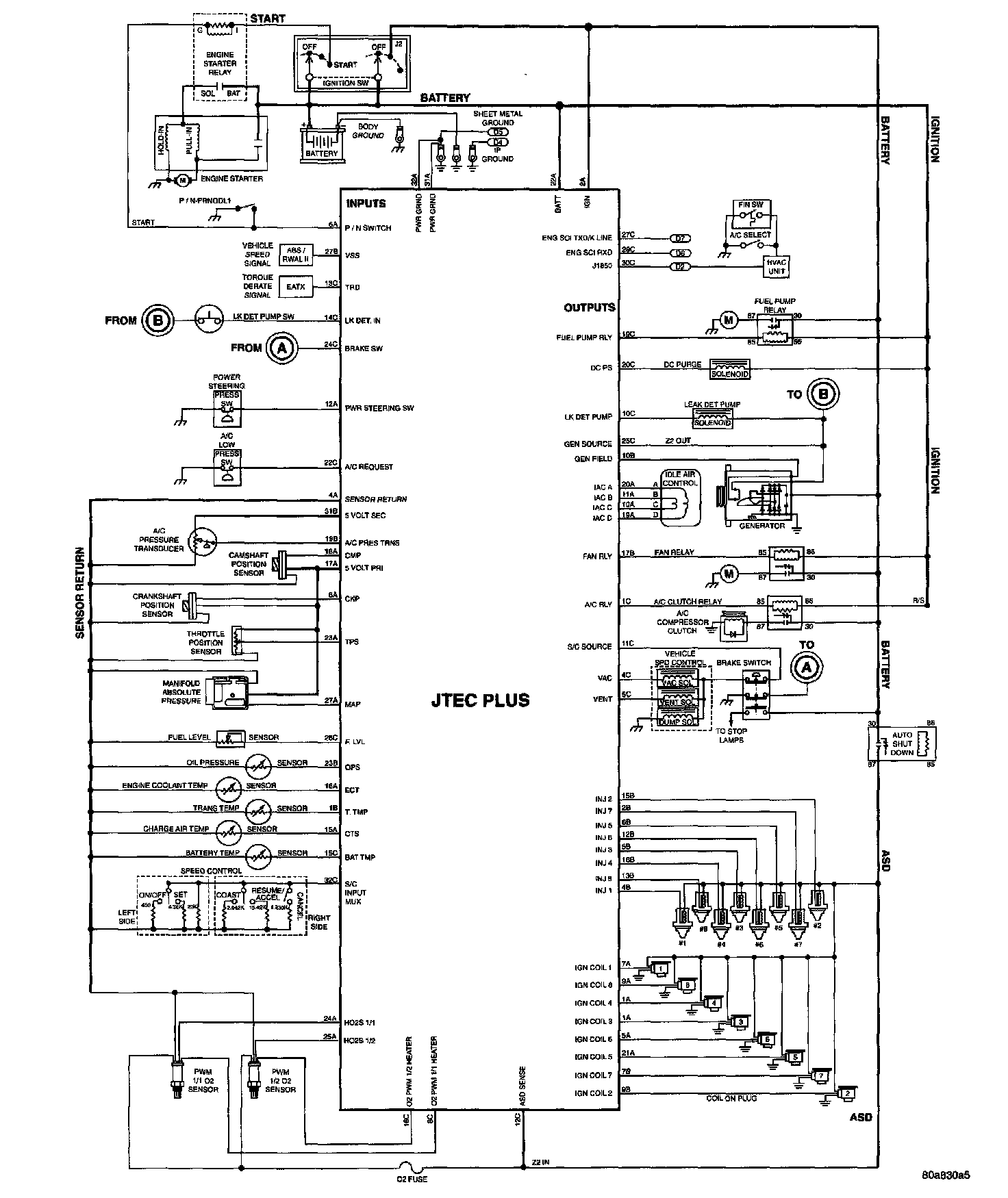

2002 Dodge 4.7 JTEC System Federal:

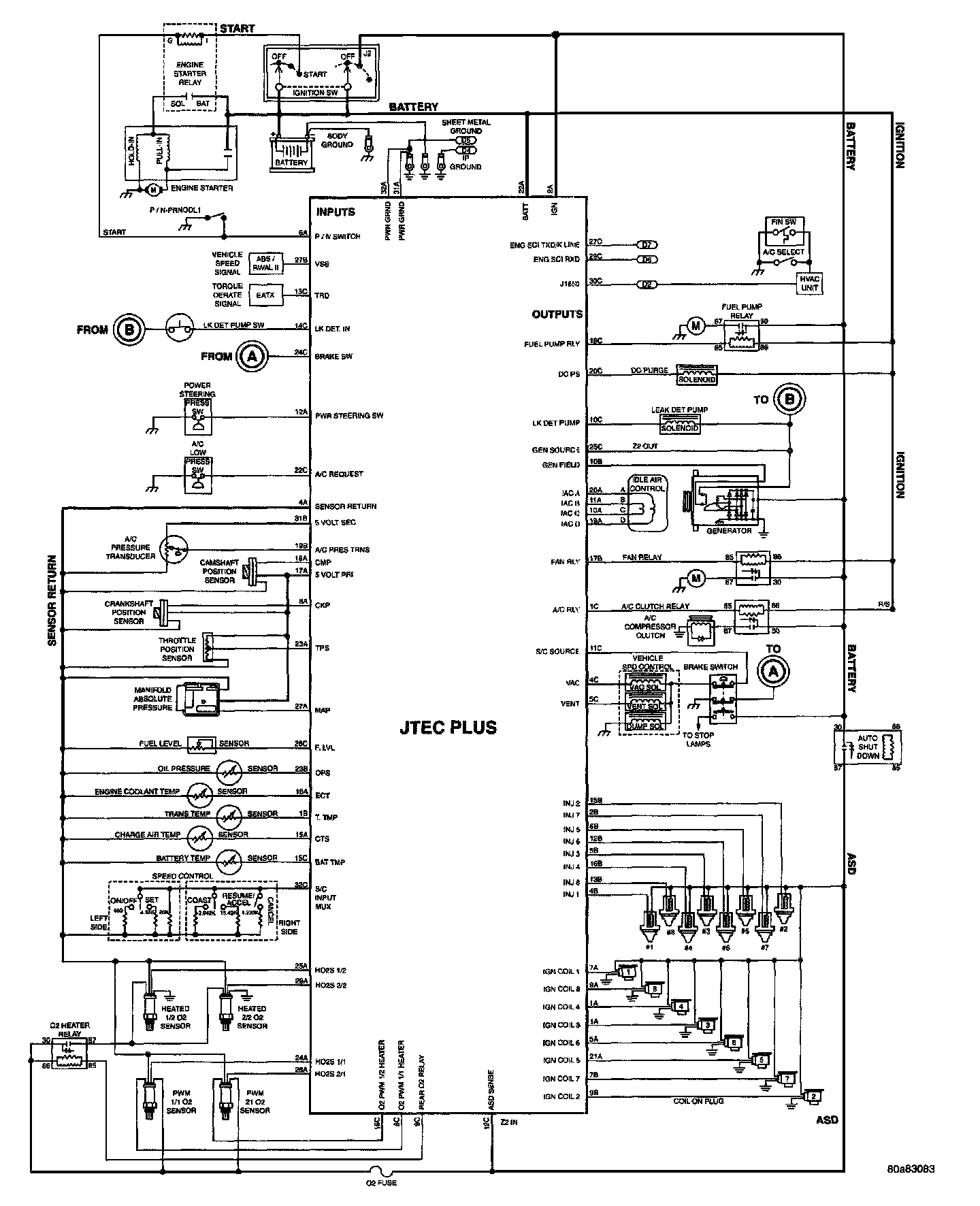

2002 Dodge 4.7 JTEC System California:
