Home >> Dodge or Ram Truck >> 1998 >> RAM 3500 Truck 4WD V10-8.0L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

PCM:

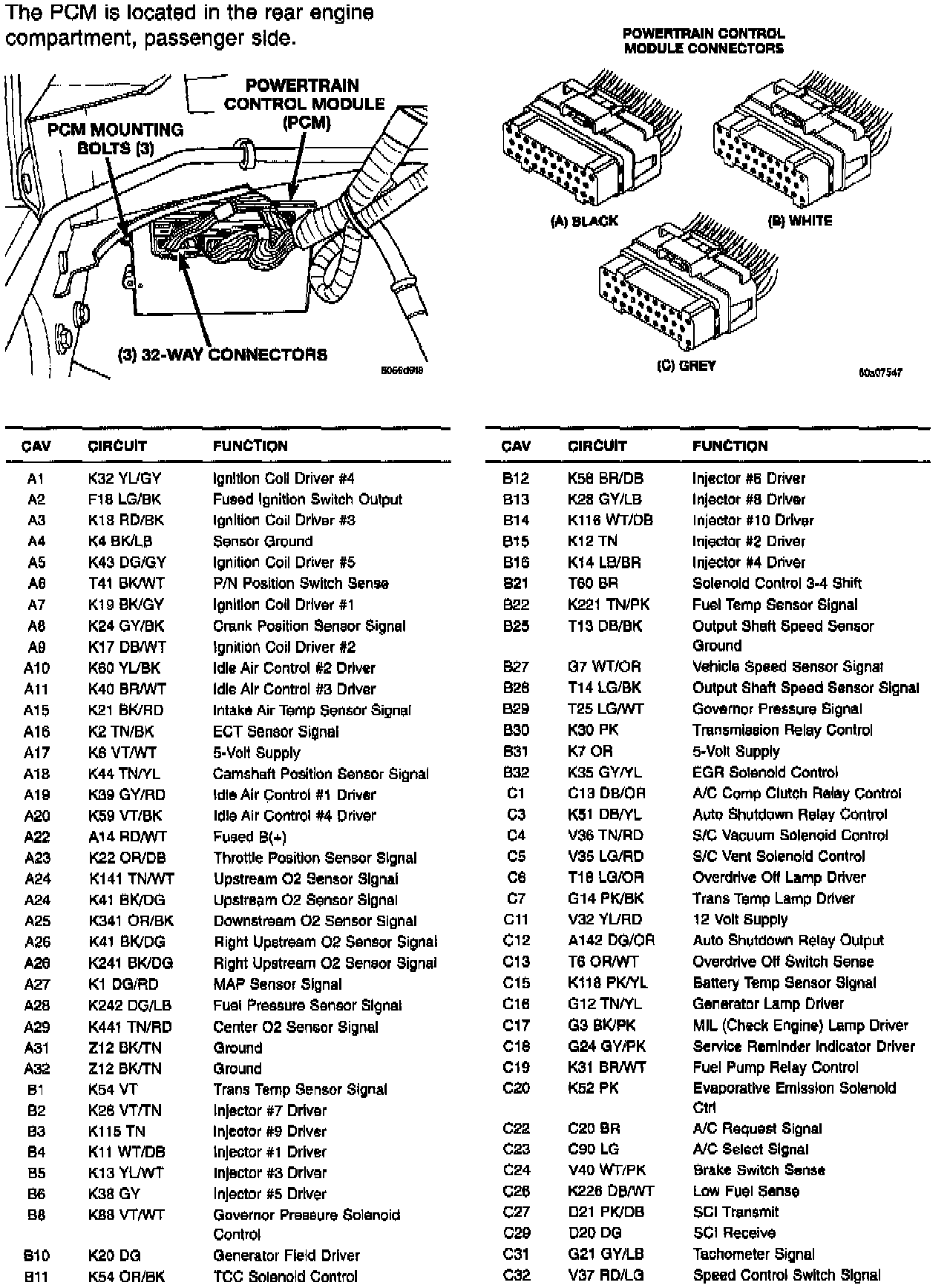

The Powertrain Control Module (PCM) is located in the right-rear side of the engine compartment.
