Home >> Daewoo >> 2002 >> Leganza CDX L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

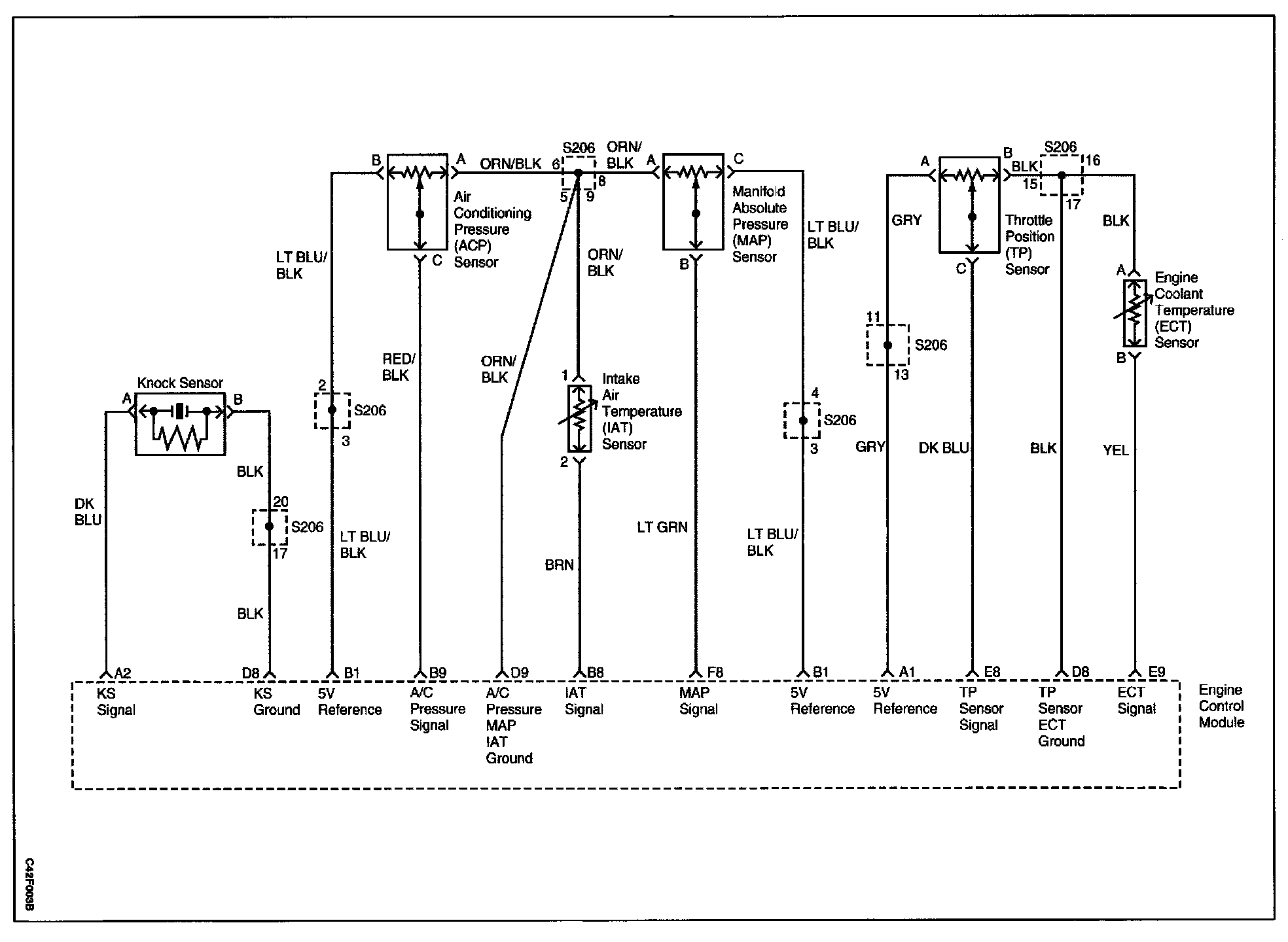

ECM Wiring Diagram (Part 1):

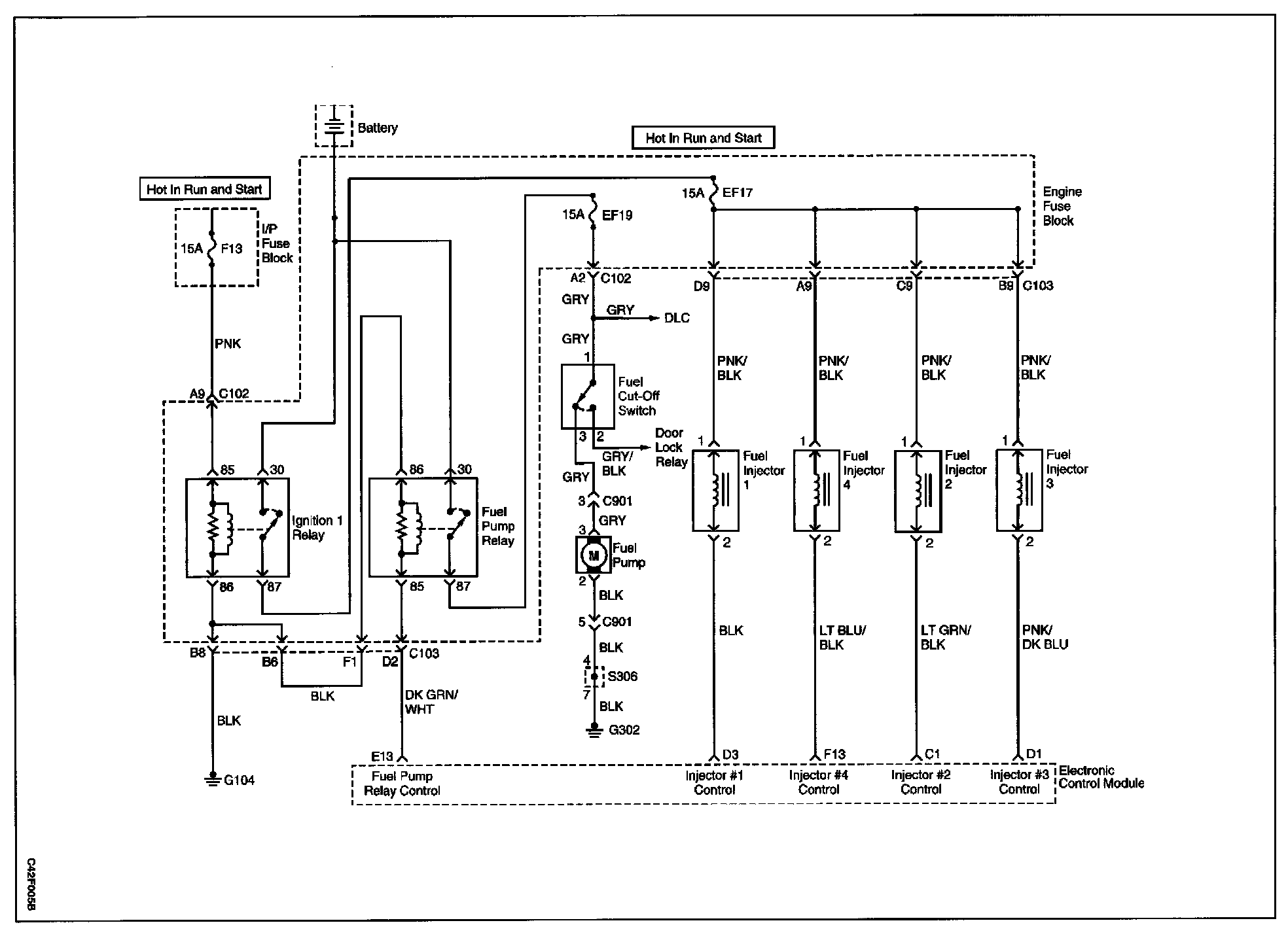

ECM Wiring Diagram (Part 2):

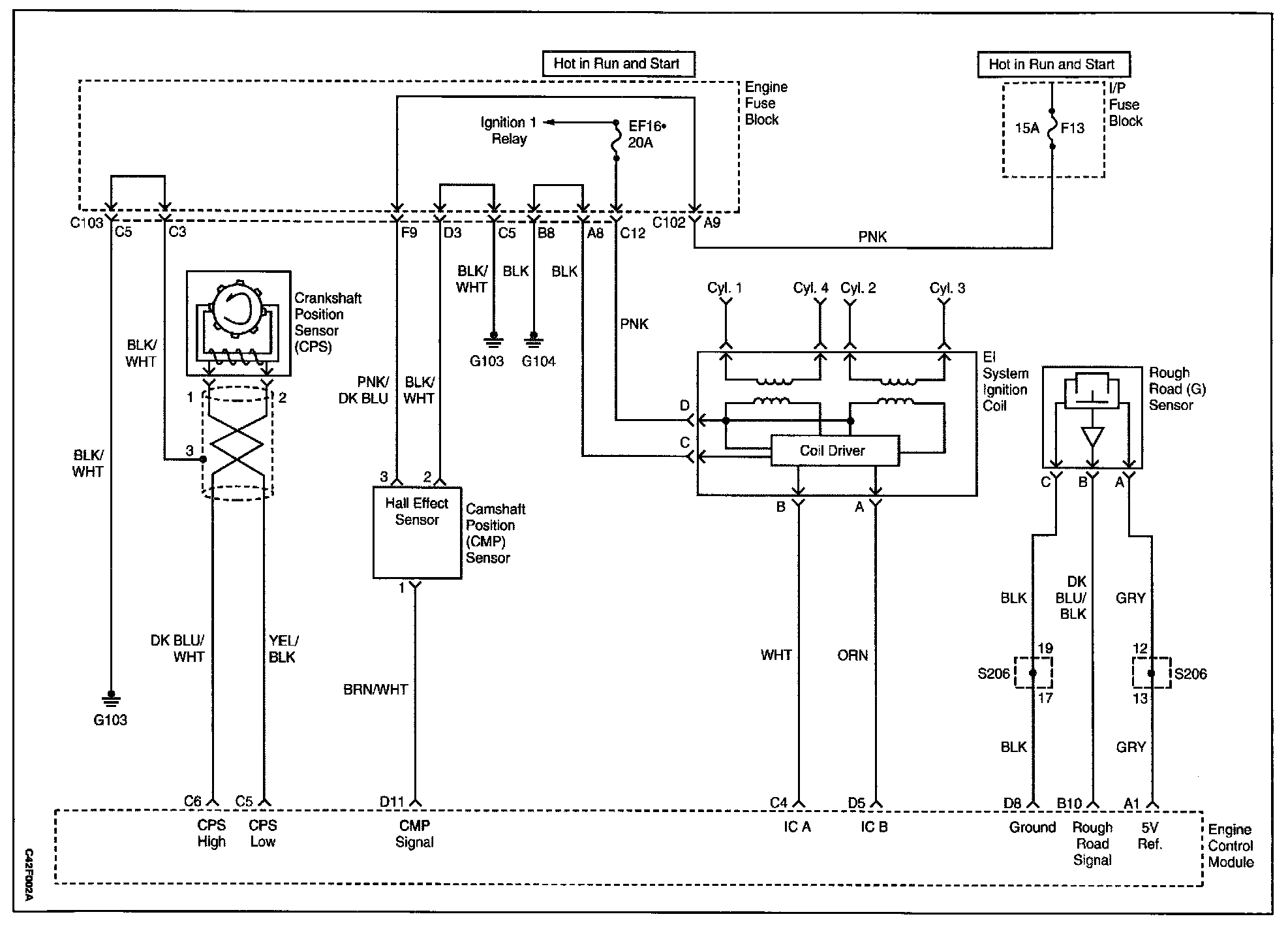

ECM Wiring Diagram (Part 3):

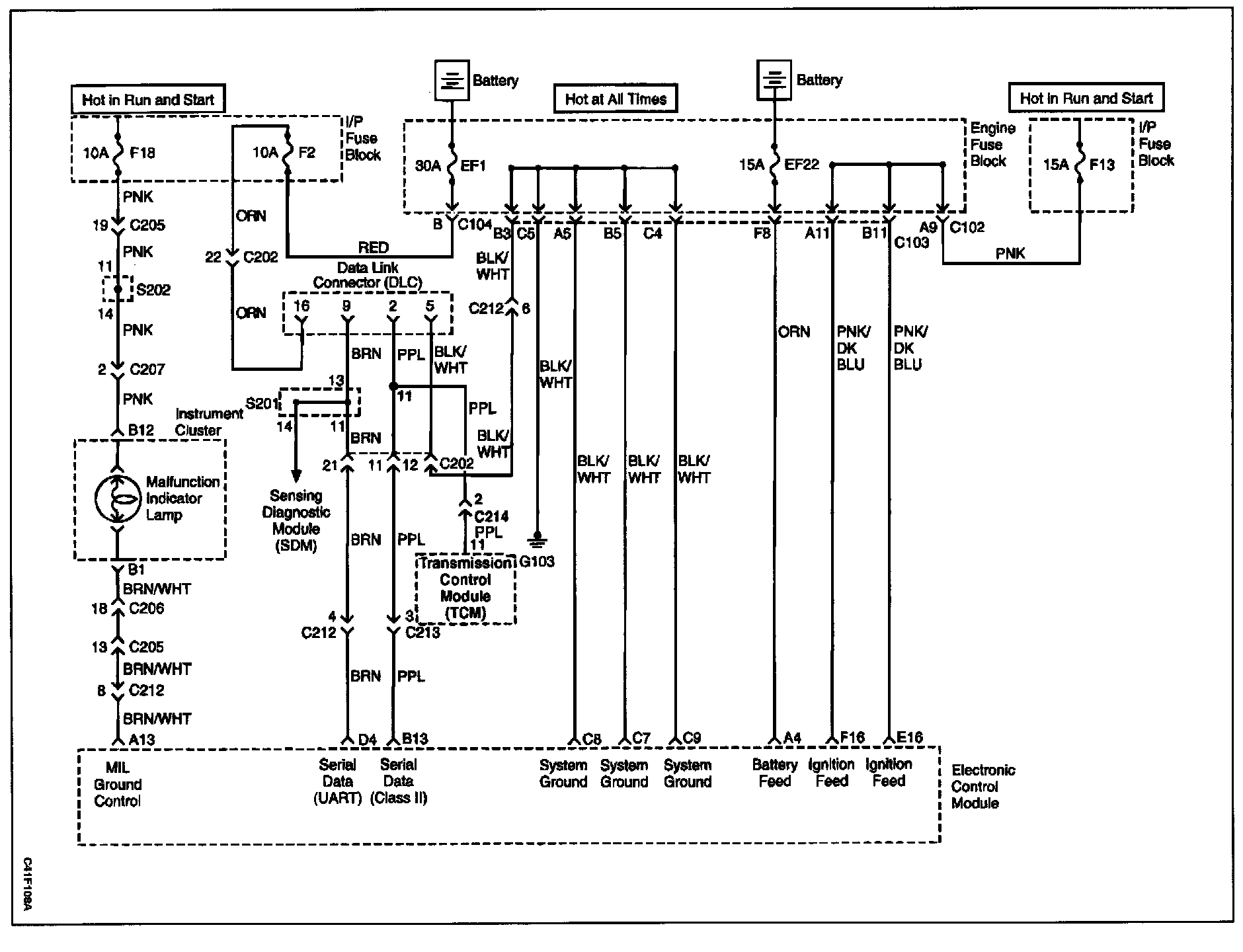

ECM Wiring Diagram (Part 4):

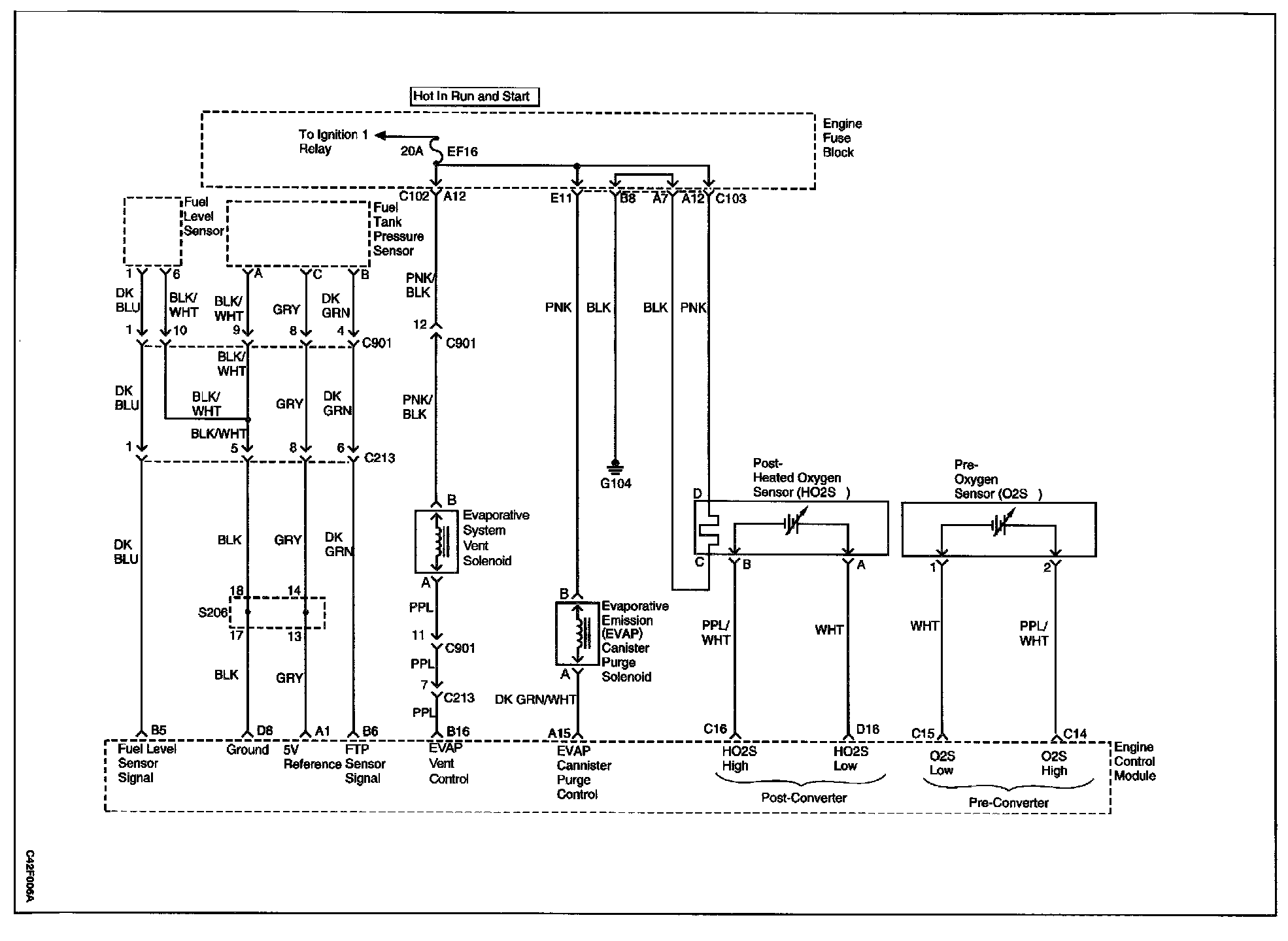

ECM Wiring Diagram (Part 5):

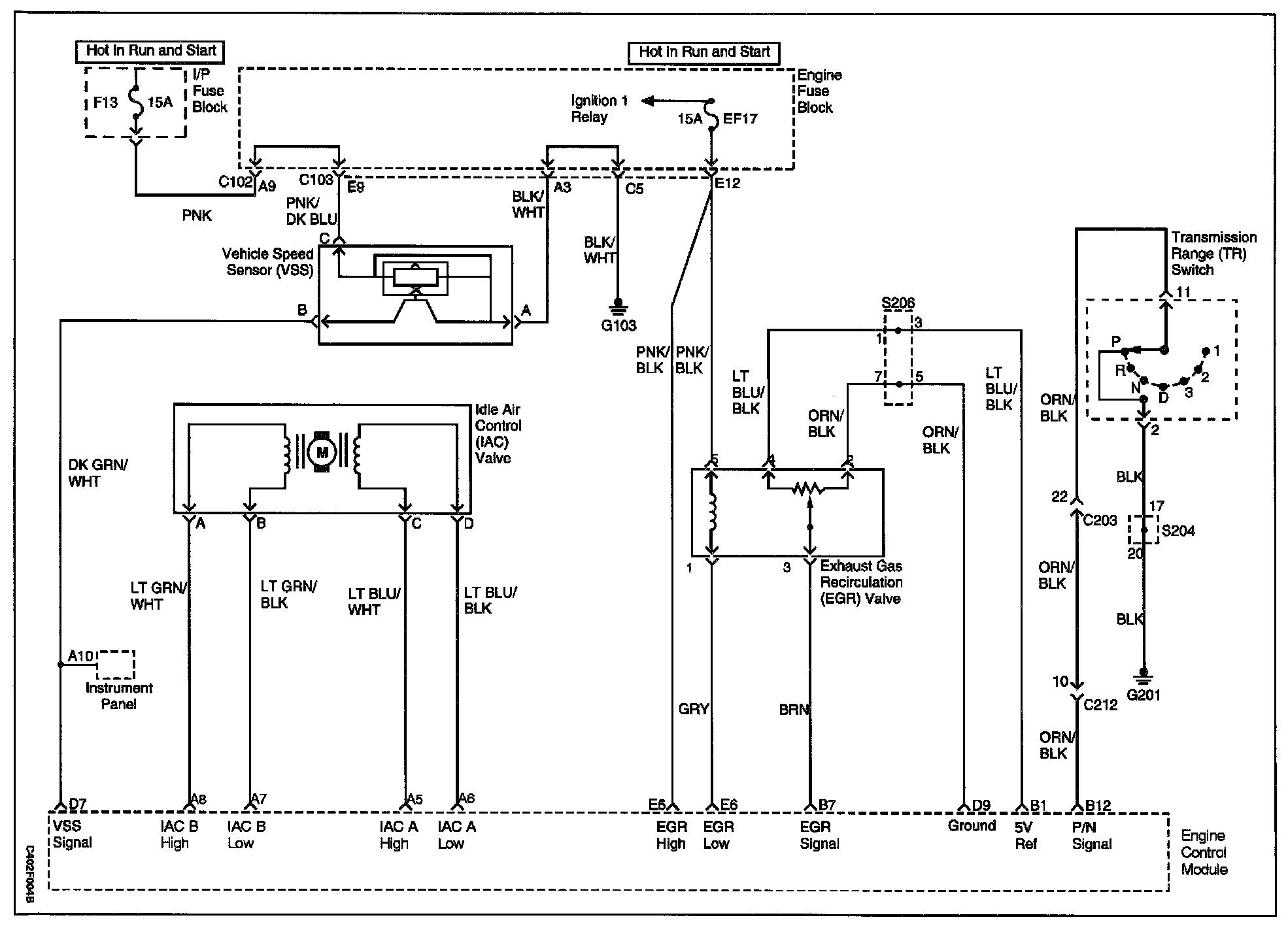

ECM Wiring Diagram (Part 6):
