Floor Mount

FLOOR MOUNT

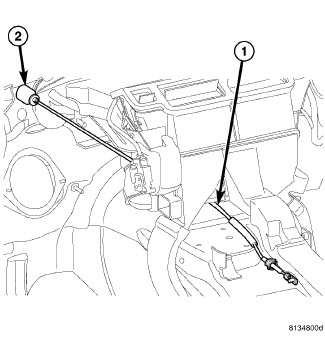

1. From under the hood, route the gearshift cable (1) through the dash panel and toward the shifter assembly.
2. From under the hood, install the grommet (2) to the dash panel.










3. Engage the gearshift cable retainer (2) into the notch (2) in the shifter assembly.
4. Install the gearshift cable (1) onto the shift lever pin (3).
5. Loosen the cable adjustment screw (5), if necessary.

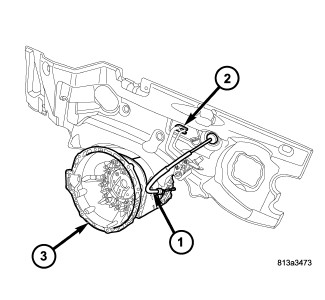

6. From under the hood, route the gearshift cable (1) forward of the air conditioning lines and the heater hoses (2) and toward the transmission (3) manual lever.

7. Place shifter into PARK.
8. Raise vehicle.
9. Verify that the transmission is in the PARK position by trying to rotate the propeller shaft. If the propeller shaft rotates, move the transmission manual shift lever to the full rearward position and turn the propeller shaft until the PARK system is engaged.




10. Route the gearshift cable (1) through the mounting bracket (2).
11. Engage the gearshift cable (1) eyelet onto the transmission manual shift lever (3).
12. Install the gearshift cable retaining clip (4) (if equipped).

13. Lower vehicle.
14. Verify that the shifter is in the PARK position.









15. Tighten the adjustment screw (5) to 7 Nm (65 in.lbs.).

16. Verify correct shifter operation.
17. If necessary, install the shield, covering the gearshift and park lock cables, to the floorpan and install the bolts to hold the shield to the floorpan.
18. Install the floor console Floor Console - Installation , lower instrument panel components Instrument Panel Center Bezel - Installation and dash panel insulation pad as necessary.
