Output Shaft Seal - Installation

ALL WHEEL DRIVE

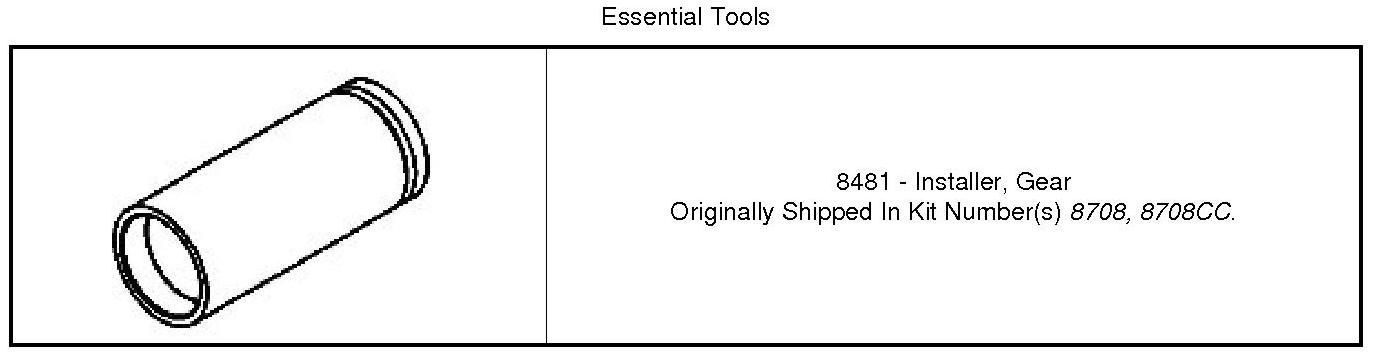

Special Tools:






CAUTION: The seal must be installed flush with the case. Driving the seal deeper could damage the seal causing a leak.

1. Position the new output shaft seal over the output shaft and against the transmission case.
2. Using (8481) install the output shaft seal.
3. Install the transfer case BW 44-40 Transfer Case - Installation.
4. Perform the CHECK OIL LEVEL procedure . Check Oil Level
