Rear Center

REAR CENTER

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.






NOTE: The left outboard rear seating position buckle is integral to the center rear seating position seat belt and retractor lower anchor.

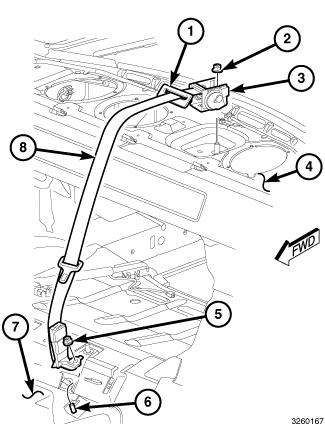

1. Position the center rear seat belt (8) and retractor (3) to the rear shelf panel (4) as a unit.
2. Engage the T-tab on the retractor bracket into the T-slot in the rear shelf panel and lower the retractor over the stud on the rear shelf panel.
3. Install and tighten the nut (2) that secures the retractor to the stud. Tighten the nut to 50 Nm (37 ft. lbs.).
4. Reinstall the trim onto the rear shelf panel. Rear Shelf Panel - Installation.
5. Engage the seat belt trim cover (1) into the rear shelf panel trim opening. Be certain the belt webbing is not twisted between the retractor and the trim cover.
6. Position the rear center seat belt and left outboard seating position buckle anchors over the stud (6) on the center floor panel (7).
7. Install and tighten the nut (5) that secures the seat belt and buckle anchors to the stud. Tighten the nut to 50 Nm (37 ft. lbs.).
8. Reinstall the rear seat cushion into the vehicle. Seat Cushion Cover - Installation.
9. Reconnect the battery negative cable.
