Clock - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

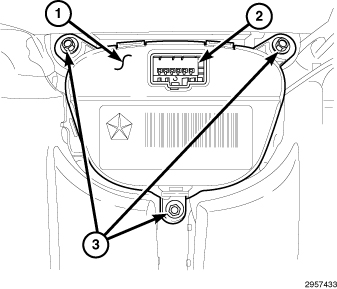

1. Position the clock (1) to the back of the instrument panel center bezel.
2. Install and tighten the three screws (3) that secure the clock to the center bezel.
3. Position the center bezel assembly at the instrument panel.
4. Install the center bezel onto the instrument panel. Instrument Panel Center Bezel - Installation.
5. Connect the negative battery cable.
6. Depress the clock reset button (4) as necessary to adjust the clock to the proper time setting.
