Cabin Heater - Installation

INSTALLATION

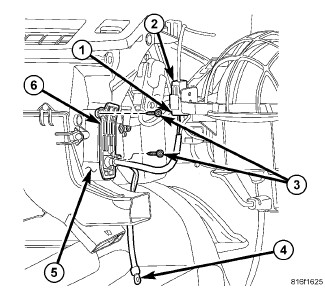

NOTE: LHD model shown. RHD model similar.

1. Position the positive temperature coefficient (PTC) heater unit and adapter plate (6) into the passenger side of the air distribution housing (5). Make sure to engage the end of the heater unit into the molded locator area in the driver side of the air distribution housing and make sure that the rubber wiring grommet is fully engage over the adapter plate.
2. Install the two screws (3) that secure the PTC heater unit to the air distribution housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Install the PTC ground strap (4). Tighten the retainer securely to ensure a good ground.
4. Connect the PTC wire harness connector (1) to the headlamp and dash wire harness lead (2).
5. Install the glove box bin Instrument Panel Glove Box - Installation.
6. Reconnect the negative battery cable.
