Air Outlet - Installation

INSTALLATION

CENTER OUTLETS

NOTE: Take the proper precautions to protect the face of center bezel from cosmetic damage while performing this procedure.

NOTE: Passenger side shown. Driver side similar.





1. Position each air outlet (1) to the instrument panel center bezel (2).
2. Engage the six retaining tabs (3 and 4) that secure each air outlet to the center bezel. Make sure the retaining tabs are fully engaged.

NOTE: Make sure that the air outlets are properly aligned to the ducts within the instrument panel and that the foam seals on the outlets are properly installed.

3. Install the center bezel Instrument Panel Center Bezel - Installation.
4. Reconnect the negative battery cable.

OUTBOARD OUTLETS

NOTE: Passenger side shown. Driver side similar.






NOTE: Make sure that the air outlet is properly aligned to the duct within the instrument panel and that the foam seal on the outlet is properly installed.

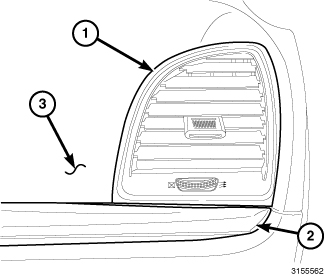

1. Position the air outlet (1) into the instrument panel and connect it to the duct.
2. Engage the retaining tabs that secure the air outlet to the instrument panel cover (3). Make sure the retaining tabs are fully engaged.
3. Install the trim insert (2) onto the instrument panel cover and engage the retaining tabs. Make sure the retaining tabs are fully engaged.
4. Reconnect the negative battery cable.

FLOOR CONSOLE OUTLETS

NOTE: Take the proper precautions to protect the face of the floor console rear trim panel from cosmetic damage while performing this procedure.





1. Position the air outlet (2) onto the floor console trim panel (1).
2. Engage the retaining tabs (3) that secure the air outlet to the trim panel. Make sure the retaining tabs are fully engaged to the outlet.

NOTE: Make sure that the air outlet is properly aligned to the duct within the floor console and that the foam seal on the duct is properly installed.

3. Install the trim panel (1) onto the back of the floor console Floor Console - Installation.
4. Reconnect the negative battery cable.
