Dual Pane Sunroof Drain Tube - Installation

INSTALLATION

FRONT

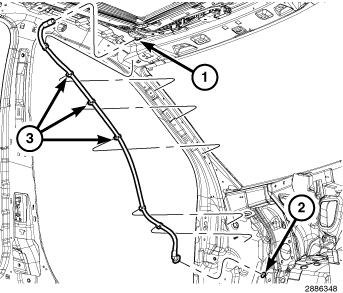

1. Install the front tube and seat the push pin fasteners (3) fully.
2. Position the lower portion through the grommet (2) in the body.
3. Connect the new drain tube to the sunroof housing (1) and test drainage.
4. If servicing the passenger side, install the glove box module,Instrument Panel Glove Box - Installation.
5. If servicing the driver side, install the steering column opening trim panel, Steering Column Opening Cover - Installation.
6. Install the lower cowl panel,Cowl Trim Panel - Installation.
7. Install the headliner, Headliner - Installation.
8. Install the A-pillar trim, A-Pillar Trim Panel - Installation.

REAR





1. Install the rear tube and seat the push pin fasteners fully.
2. Position the lower portion through the grommet in the body.

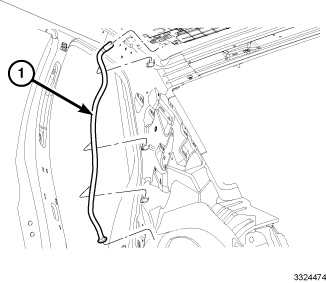

3. Connect the new drain tube (1) to the sunroof housing and test drainage.
4. Install the headliner. Headliner - Installation
5. Install the lower C-pillar trim panel, C-Pillar Trim Panel - Installation.
