Headlamp Mounting Crossmember - Installation

INSTALLATION






NOTE: The Vehicle Emission Control Information (VECI) label(s) must be in place for the life of the vehicle. When replacing the component in which the VECI label is adhered, a new VECI label must also be adhered to the new component.

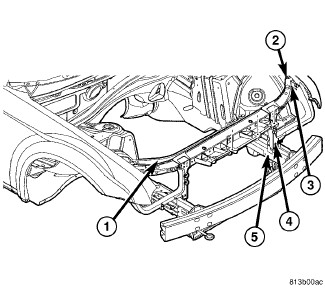

1. Position the headlamp mounting crossmember (1) into the engine compartment.
2. Loosely install the bolts (2 and 3) that secure the headlamp mounting crossmember to the front fenders.
3. Loosely install the bolts (4) that secure the headlamp mounting crossmember to the front frame rails (5).
4. Align the headlamp mounting crossmember using the alignment marks previously indicated and tighten all of the retaining bolts to 28 Nm (21 ft. lbs.).

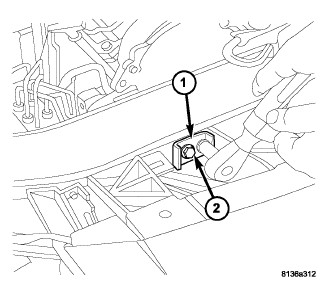

5. Install the bolts (2) that secure the radiator mounting bracket (1) to the headlamp mounting crossmember. Tighten the bolts to 5 Nm (45 in. lbs.).

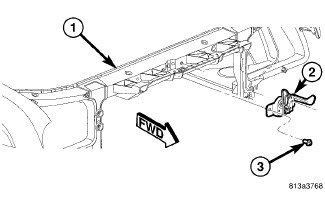

6. Position the latch (2) to the front of the crossmember (1).
7. Loosely install the two bolts (3) that secure the hood latch to the headlamp mounting crossmember.
8. Align the hood latch using the alignment marks previously indicated and tighten the hood latch bolts to 28 Nm (21 ft. lbs. ).

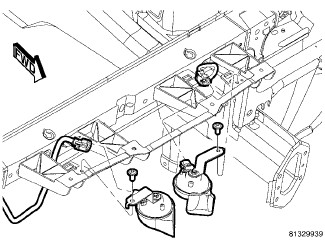

9. Install the horns onto the headlamp mounting crossmember. Tighten the bolts to 28 Nm (21 ft. lbs. ).
10. Connect the headlamp wire harness to the horns.

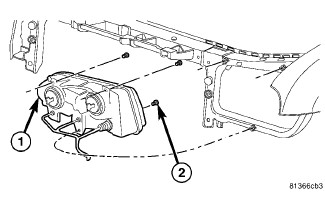

11. Install the headlamp units (1).
12. Install the front fascia Front Bumper Fascia - Installation.
13. Reconnect the negative battery cable.
14. Carefully close the hood and verify hood latch and panel alignment. Adjust as necessary.
15. If equipped with ACC (Adaptive Cruise Control), module must be realigned.
