Body Control Module - Installation

INSTALLATION





1. Position the BCM in the vehicle.

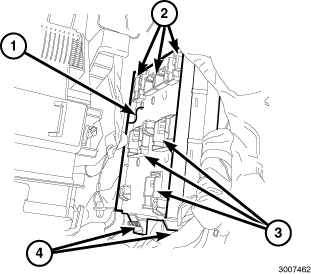

2. Install the fasteners (4), two at the bottom, and one at the top, and tighten the securely.
3. Connect the electrical connectors to the Body Control Module (BCM) (1) receptacles (2 and 3) as needed.

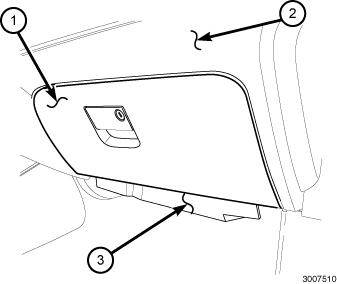

4. Install the glove box assembly (1), Instrument Panel Glove Box - Installation.
5. Install the lower hush panel (3) and install the two push-pin type retainers.
6. Connect the negative battery cable.

NOTE: Program the BCM in accordance with the module replacement and programming guide. RF Hub, BCM, PCM, FOBIK, And ELV Replacement And Programming Order
